RZ/V AI SDK Overview



AI Software Development Kit (AI SDK) is an AI application development environment for Evaluation Board of RZ/V series.

Since it contains Yocto Linux with bootloader, Linux Kernel, Cross Compiler and a complete set of libraries for DRP-AI and graphics, users can develop AI Applications easily and quickly with AI SDK.
In the AI Applications, USB/MIPI camera can be used with Video for Linux 2 (V4L2) API.

AI SDK is specifically made for the supported Evaluation Board with fixed Linux components. For those of you who would like to customize Linux environment, i.e., change memory map or develop your own board, you need to build the Yocto Linux source code.
Yocto Linux source code is provided as AI SDK Source Code.

Please refer to How to Build AI SDK page shown below for more details.




AI SDK has a CUI environment and a GUI environment.
Each has the following functions.
Functions CUI env. GUI env. (e2 studio)
Install AI SDK ✔ ✔
Build AI Applications ✔ ✔*1
Build AI SDK ✔ -
Transfer Learning - ✔*1
*1: There is a limit to the number of AI Applications supported.


For more information, see each AI SDK download page.



Software Block Diagram

Key Features

Supported Devices

Supported Board Supported AI SDK Note
RZ/V2L Evaluation Board Kit (EVK) RZ/V2L AI SDK -
RZ/V2H Evaluation Board Kit (EVK) RZ/V2H AI SDK -
RZ/V2N Evaluation Board Kit (EVK)
RZ/V2N Fast Prototyping Board (FPB-RZV2N) 		RZ/V2N AI SDK FPB-RZV2N can be used in the same way as the RZ/V2N EVK, except for cases that depend on hardware differences.
E.g., Only 1 MIPI camera connector is available on FPB-RZV2N.

File Contents

AI SDK provides following files.

Package Items Details RZ/V2L AI SDK RZ/V2H AI SDK RZ/V2N AI SDK
AI SDK Release Note PDF documentation that contains RZ/V AI SDK release information. Contains list of files provided in RZ/V AI SDK.
board_setup Bootloader Files to boot the board. Provided as individual files.
Supports eSD/QSPI Bootloader. 		Provided as individual files.
Supports eSD/xSPI Bootloader.
Linux Kernel Files Pre-build binary files for RZ/V Linux Kernel.
Root filesystem Filesystem for the RZ/V Linux.
ai_sdk_setup AI SDK Installer Installer for AI application development environment on Docker. Provided as a Dockerfile that clones DRP-AI TVM .
Cross Compiler Compiler for Linux application on RZ/V Linux, which is used by AI SDK Installer. Provided as cross compiler installer.
DRP-AI Translator Installer Installer for DRP-AI Translator, which is used by AI SDK Installer. Provided as an installer taken from DRP-AI Translator . Provided as an installer taken from DRP-AI Translator i8 .
documents Related Documents PDF documentation that contains RZ/V AI SDK related information. Includes DRP-AI Translator User's Manual and list of Linux license information.
references Reference information Files that is refered by Linux license information documentation. Includes linux manifest file, etc..
AI SDK Source Code README Release information of AI SDK Source Code Provided as a txt file.
Yocto Linux Recipe Linux source code of AI SDK. Provided as a tar file.
OSS Source Code Source code of Open Source Software packages used to build AI SDK. Provided as a 7z file.
To check more details, please see each Release Note/README provided in the package.


AI SDK Specification


RZ/V2L AI SDK Specification

Target Version: 7.00

Overview

RZ/V2L AI SDK configuration is as follows.
  • DRP-AI TVM v2.6.1 [ GitHub ]
  • RZ/V2L Verified Linux Package v4.0.1 [ Renesas Web ]
    • DRP-AI Driver v2.20
    • Video for Linux 2 (V4L2)
    • Other device drivers
      (See RZ/V2L Verified Linux Package Release Note.)
  • Graphics Library v4.1.2.6 [ Renesas Web ]
  • Video Codec Library v4.1.3.1 (H.264) [ Renesas Web ]
  • Other OSS packages
    • Tesseract 5.3.4 (tesseract, tesseract-lang)
    • OpenMP v13.4.0
    • Python 3.12

For more information on RZ/V2L AI SDK, see the page below.


For more information on AI SDK Source Code, see How to Build AI SDK page.


RZ/V2L Software Block Diagram

Memory Map

The memory map of RZ/V2L AI SDK is as follows.

V2L memory map

Boot Mode

RZ/V2L AI SDK and AI SDK Source Code provides the following boot mode and corresponding filesystem type.

Type Description RZ/V2L EVK
eSD Bootloader The board boots up using the bootloader written on microSD card.
Filesystem is also on microSD card. 		Available
QSPI Bootloader The board boots up using the bootloader written in Flash ROM on the board.
Filesystem is on microSD card. 		Available
eMMC Bootloader The board boots up using the bootloader written in eMMC on the board.
Filesystem is also on eMMC. 		-


RZ/V2H AI SDK Specification

Target Version: 6.00

Overview

RZ/V2H AI SDK configuration is as follows.
  • DRP-AI TVM v2.5.1 [ GitHub ] *2
  • RZ/V2H Linux BSP v2.0.0 [ Configuration ]
    • DRP-AI Driver v1.31 [ GitHub ]
    • e-CAM22_CURZH camera driver (MIPI) *1
    • Video for Linux 2 (V4L2) including the support for USB camera
    • Other device drivers [ List ] [ Manual ]
  • Graphics Library v4.1.3.0
  • Video Codec Library v4.3.3.1 *2
  • OpenCV Accelerator v1.40 (supporting OpenCV 4.9.0) [ GitHub ] *2
  • Other OSS packages
    • Tesseract v5.3.4 (tesseract, tesseract-lang)
    • OpenMP v13.4.0
    • Python 3.12

For more information on RZ/V2H AI SDK, see the page below.


To add additional components/drivers, such as Arducam Technology's MIPI camera driver, users are required to build AI SDK Source Code.
For more information on AI SDK Source Code, see How to Build AI SDK page.


RZ/V2H Software Block Diagram
*1: To use e-CAM22_CURZH camera, see e-con Systems.
*2: RZ/V2H is equipped with 2 IPs, DRP-AI and DRP. Please see RZ/V2H block diagram.
DRP-AI is used by DRP-AI TVM. DRP use is shared by OpenCV Accelerator and Video Codec Library (decoding function).
Therefore, OpenCV Accelerator and Video Codec Library (decoding function) cannot be used at the same time.

Memory Map

The memory map of RZ/V2H AI SDK is as follows.
If you want to modify the memory map, please refer to the Developer's Guide.

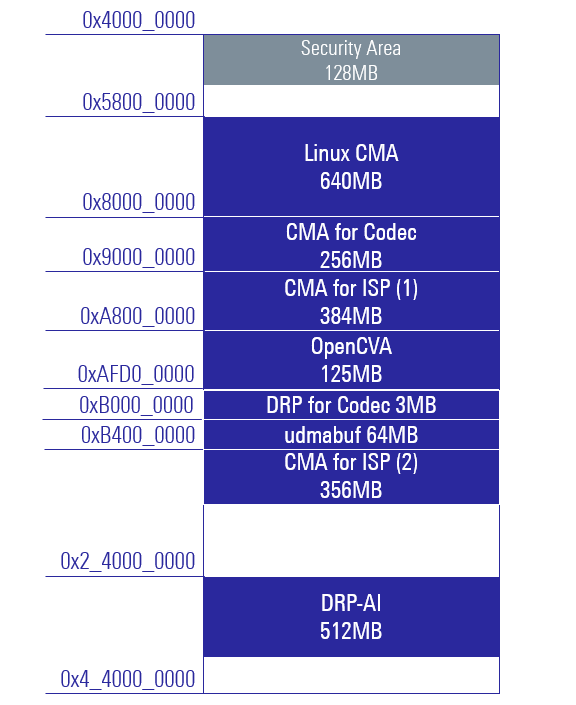

V2H memory map

Boot Mode

RZ/V2H AI SDK and AI SDK Source Code provides the following boot mode and corresponding filesystem type.

Type Description RZ/V2H EVK
eSD Bootloader The board boots up using the bootloader written on microSD card.
Filesystem is also on microSD card. 		Available
xSPI Bootloader The board boots up using the bootloader written in Flash ROM on the board.
Filesystem is on microSD card. 		Available
eMMC Bootloader The board boots up using the bootloader written in eMMC on the board.
Filesystem is also on eMMC. 		-


RZ/V2N AI SDK Specification

Target Version: 6.30

Overview

RZ/V2N AI SDK configuration is as follows.
  • DRP-AI TVM v2.5.1 [ GitHub ] *4
  • RZ/V2N Linux BSP v2.0.1 [ Configuration ]
    • DRP-AI Driver v1.40 [ GitHub ]
    • e-CAM22_CURZH camera driver (MIPI) v1.00 *3
    • Video for Linux 2 (V4L2) including the support for USB camera
    • Support the DDR Suspend to RAM function to enable ultra-low-power standby with fast resume. *5
    • Other device drivers [ List ] [ Manual ]
  • Graphics Library v4.1.3.1
  • Video Codec Library v4.3.4.0 *4
  • OpenCV Accelerator v1.50 (supporting OpenCV 4.9.0) [ GitHub ] *4
  • Other OSS packages
    • Tesseract v5.3.4 (tesseract, tesseract-lang)
    • OpenMP v13.4.0
    • Python 3.12

Applications that can be run on RZ/V2N AI SDK v6.00 are compatible with RZ/V2N AI SDK v6.30.

FPB-RZV2N can be used in the same way as the RZ/V2N EVK, except for cases that depend on hardware differences.
E.g., Only 1 MIPI camera connector is available on FPB-RZV2N.

For more information on RZ/V2N AI SDK, see the page below.


For more information on AI SDK Source Code, see How to Build AI SDK page.


RZ/V2N Software Block Diagram
*3: To use e-CAM22_CURZH camera, see e-con Systems.
*4: RZ/V2N is equipped with single IP, DRP-AI. (DRP is not equipped.) Please see RZ/V2N block diagram.
DRP-AI use is shared by DRP-AI TVM, OpenCV Accelerator and Video Codec Library (decoding function).
Therefore, these software cannot be used at the same time.
 *5: To use the DDR Suspend to RAM function, you must use AI SDK v6.30 or later, as well as RZ/V2N EVK V2.0 and the Multi-OS package.
To purchase or learn more about the RZ/V2N EVK V2.0, please refer to RZ/V2N Evaluation Board Kit.
Please refer to the RZ/V Multi-OS Package instructions on how to use the DDR Suspend to RAM function.

Memory Map

The memory map of RZ/V2N AI SDK is as follows.
If you want to modify the memory map, please refer to the Developer's Guide.

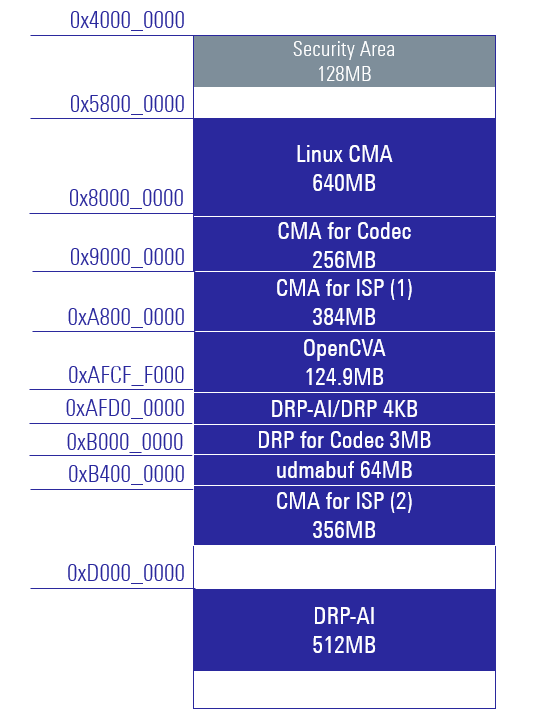

V2N memory map

Boot Mode

RZ/V2N AI SDK and AI SDK Source Code provides the following boot mode and corresponding filesystem type.

Type Description RZ/V2N EVK-ver1/ver2 FPB-RZV2N
eSD Bootloader The board boots up using the bootloader written on microSD card.
Filesystem is also on microSD card. 		Available Available
xSPI Bootloader The board boots up using the bootloader written in Flash ROM on the board.
Filesystem is on microSD card. 		Available -
eMMC Bootloader The board boots up using the bootloader written in eMMC on the board.
Filesystem is also on eMMC. 		Available -
