Overview¶
The HMI SDK provides a Yocto-based Linux environment with development tools, system libraries, graphics and multimedia support, and HMI frameworks such as HTML5, LVGL, or Flutter, making it easy to create and run HMI applications.
The HMI SDK is specifically designed for the supported RZ/G EVKs and includes fixed Linux components. The source is also provided for further development and customization.
For an easy setup and quick access to the out-of-the-box demo applications, please refer to Getting Started. For a customized Linux environment—such as modifying the memory map or adding support for your own board, please refer to Building the HMI SDK with Yocto.
Supported Boards¶
- RZ/G3L Evaluation Board Kit (RTK9846L46S01000BE)
Notice
For information about the HMI SDK for the RZ/G3E EVK, please refer to the Overview of HMI SDK v3.4.0.0. For information about the HMI SDK for the RZ/G2L, RZ/G2LC, and RZ/G2UL EVKs, please refer to the Overview of HMI SDK v3.4.1.0.
SDK Components¶
HMI SDK provides the following packages:
HMI SDK Package -eSD Boot Image & Toolchain Installer
This package lets you get started right away. You can create a bootable microSD card for the EVK, set up the Linux environment, run the prebuilt demo applications, and build sample HMI applications using the included toolchain installer.
Please go to Getting Started to get started with this HMI SDK Package.HMI SDK Yocto Build Package -Yocto Recipes & Pre-built Binary for QSPI Boot
This package is for when you want more flexibility. You can build and customize the entire HMI SDK from source. You can also try other boot modes such as QSPI or eMMC, in addition to eSD.
- Source Code -Supplementary for HMI SDK Yocto Build Package
Note that this is optional; the supplementary source code used in the Yocto build is provided for offline builds or as a backup if online fetching fails.
Please go to Building the HMI SDK with Yocto to get started with this HMI SDK Yocto Build Package (and Source Code).- Source Code -Supplementary for HMI SDK Yocto Build Package
The packages are designed for specific board models, while the source code is universal and can be used across all boards.
File Contents¶
The contents of the packages are as follows:
Packages | Content File | Details |
|---|---|---|
HMI SDK Package | image-file_< | Bootable SD card images in WIC format for eSD boot with MIPI-DSI display support |
image-file_< | Bootable SD card images in WIC format for eSD boot with LVDS display support | |
licenses_< | License files for open-source software used in HMI SDK | |
README.txt | README with package details | |
toolchain-installer_< | Cross-toolchain installer for building sample applications | |
HMI SDK Yocto Build Package | licenses_< | License files for open-source components used in HMI SDK |
pre-built-binary_< | Pre-built binaries (bootloader, Linux kernel, root filesystem, flash writer) for SPI boot mode | |
README.txt | README with package details | |
yocto_recipe_< | Yocto meta layers for building HMI SDK |
Tip
<dev> in the table represents a device name of one of the following devices:
- rzg3l
<version> in the table represents a version name. Replace it with v3.5.0.0.
The angle brackets < and > should not be included when you enter the text.
The contents of the source code are as follows:
Supplements | Content File | Details |
|---|---|---|
Source Code | licenses_< | License files for open-source components used in HMI SDK |
oss-source-code-pkg_< | Source code package of open-source components for building HMI SDK | |
README.txt | README with package details |
HMI Application Contents¶
HMI Demo Applications
When the HMI SDK Linux system boots, the Demo Application Launcher starts automatically. The pre-installed demo applications can then be launched from the Demo Application Launcher—for example, the Chromium Home Panel Demo shown below.
Follow the instructions under Demo Applications in the HMI Applications section to view these demos. They come as pre-built binaries, with source code also provided in the table below:
Type | Demo Applications | Target Device | Source Code URL |
|---|---|---|---|
LVGL | LVGL Home Panel Demo | RZ/G3L | |

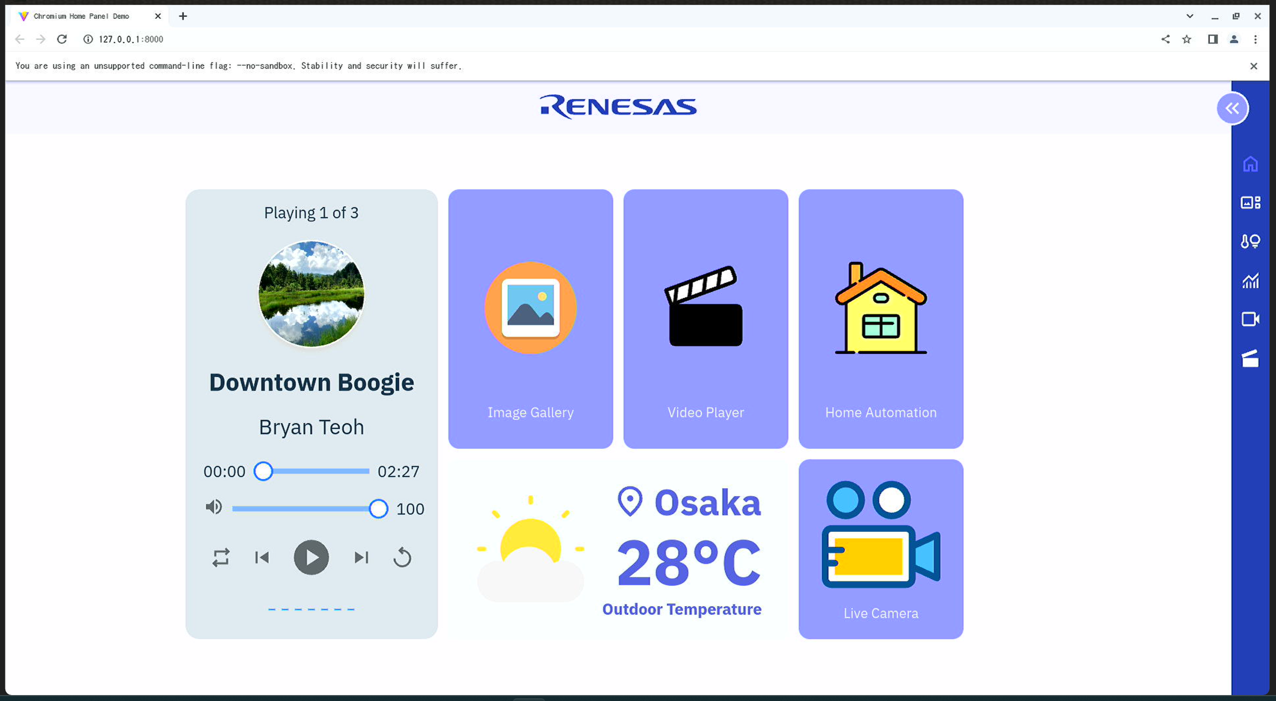

Chromium | Chromium Home Panel Demo | RZ/G3L | |
Flutter | Flutter Samples | RZ/G3L |
HMI Sample Applications
The sample applications are not pre-built and require additional building and deployment. Follow the instructions under Sample Applications in the HMI Applications section to try them, with source code also provided in the table below:
Type | Sample Applications | Target Device | Source Code URL |
|---|---|---|---|
LVGL | LVGL Sample Program for Image Display | RZ/G3L | |
LVGL Sample Program for Audio Playback | RZ/G3L | ||
LVGL Sample Program for Video Playback | RZ/G3L |
Specification¶
RZ/G HMI SDK includes the following software modules:
- RZ/G3L Board Support Package Version 1.0.0
- RZ MPU Graphics Library v5.1.3.2
- RZ MPU Video Codec Library v5.1.5.0
Note
Please refer to Renesas RZ Linux BSP Plus for more details on the software modules.
Component Information¶
For detailed component information, please refer to the table below:
| Components | Version | Details |
|---|---|---|
| Linux Kernel | kernel-6.12.46-cip8 | SLTS (Super Long Term Support) kernel |
| Yocto | 5.0.9 (scarthgap) | Distribution for embedded Linux |
| GCC | 13.4.0 | Compiler |
| glibc | 2.39 | |
| busybox | 1.36.1 | |
| OpenSSL | 3.2.6 | |
| GStreamer 1.0 | 1.22.12 | GStreamer Software Manual GStreamer Sample Applications |
| Wayland | 1.22.0 | |
| Weston | 13.0.1 | |
| Python | 3.12.12 | |
| Chromium | 132.0.6834.83 | chromium-ozone-wayland |
| Flutter | 3.38.3 | |
| LVGL | 9.5.0 | |
| FiraCode | 6.2 | |
| Tomlc99 | *1 | |
| OpenCL | 2.0 Full Profile | OpenCL Overview |
| OpenGL ES | 1.1, 2.0, 3.0, 3.1 and 3.2 | OpenGL ES Overview |
| OpenMAX IL | 1.1 | OpenMAX IL Overview |
License Information¶
The image in the release package contains proprietary components and open-source components.
The proprietary components may only be used after execution of the relevant Renesas Licensing Agreement. If you have not executed such an agreement, you are not authorized to use this software. Please contact Renesas sales for any licensing inquiries with respect to the proprietary components.
All open-source components constitute a separate delivery and are licensed according to the applicable terms of their respective open-source licenses. All open-source software is delivered "AS IS" with no warranties. The OSS used by this product and their licenses are listed in the table below. While Renesas seeks to provide complete and accurate licensing information with regard to each open-source package, Renesas does not warrant or represent that the licensing information is complete or error-free. Please refer to the source code itself or license files included in the release package for details about the license or copyright information.
| # | OSS Component | Lincense |
|---|---|---|
| 1 | acl | LGPL-2.1-or-later & GPL-2.0-or-later |
| 2 | adwaita-icon-theme | LGPL-3.0-only | CC-BY-SA-3.0 |
| 3 | alsa-lib | LGPL-2.1-only & GPL-2.0-or-later |
| 4 | alsa-plugins | LGPL-2.1-only & GPL-2.0-or-later |
| 5 | alsa-state | MIT & GPL-2.0-or-later |
| 6 | alsa-topology-conf | BSD-3-Clause |
| 7 | alsa-ucm-conf | BSD-3-Clause |
| 8 | alsa-utils | GPL-2.0-only |
| 9 | asciidoc | GPL-2.0-only |
| 10 | at-spi2-core | LGPL-2.1-or-later |
| 11 | attr | LGPL-2.1-or-later & GPL-2.0-or-later |
| 12 | audio-init | MIT |
| 13 | autoconf | GPL-3.0-or-later |
| 14 | autoconf-archive | GPL-3.0-with-autoconf-exception |
| 15 | automake | GPL-2.0-only |
| 16 | avahi | GPL-2.0-or-later & LGPL-2.1-or-later |
| 17 | babeltrace | MIT & GPL-2.0-only & LGPL-2.1-only |
| 18 | babeltrace2 | MIT & GPL-2.0-only & LGPL-2.1-only & BSD-2-Clause |
| 19 | base-files | GPL-2.0-only |
| 20 | base-passwd | GPL-2.0-only |
| 21 | bash | GPL-3.0-or-later |
| 22 | bash-completion | GPL-2.0-only |
| 23 | bayer2raw | GPL-2.0-only |
| 24 | bc | GPL-3.0-or-later |
| 25 | bigbuckbunny-sample | CC-BY-3.0 |
| 26 | binutils | GPL-3.0-only |
| 27 | binutils-cross-aarch64 | GPL-3.0-only |
| 28 | bison | GPL-3.0-only |
| 29 | blktool | GPL-2.0-or-later |
| 30 | blktrace | GPL-2.0-only |
| 31 | bluez5 | GPL-2.0-or-later & LGPL-2.1-or-later |
| 32 | bmaptool | GPL-2.0-only |
| 33 | bonnie++ | GPL-2.0-only |
| 34 | boost | BSL-1.0 & MIT & Python-2.0 |
| 35 | boost-build | BSL-1.0 |
| 36 | bptool | BSD-3-Clause |
| 37 | brotli | MIT |
| 38 | btrfs-tools | GPL-2.0-only & LGPL-2.1-or-later |
| 39 | busybox | GPL-2.0-only & bzip2-1.0.4 |
| 40 | bzip2 | bzip2-1.0.6 & GPL-3.0-or-later & Apache-2.0 & MS-PL & BSD-3-Clause & Zlib |
| 41 | ca-certificates | GPL-2.0-or-later & MPL-2.0 |
| 42 | cairo | (MPL-1.1 | LGPL-2.1-only) & GPL-3.0-or-later |
| 43 | cantarell-fonts | OFL-1.1 & Apache-2.0 |
| 44 | can-utils | GPL-2.0-only & BSD-3-Clause |
| 45 | c-ares | MIT |
| 46 | cargo | MIT | Apache-2.0 |
| 47 | cargo-c | MIT |
| 48 | cdrtools | GPL-2.0-only & CDDL-1.0 & LGPL-2.1-or-later |
| 49 | chromium-ozone-wayland | BSD-3-Clause & LGPL-2.0-or-later & LGPL-2.1-or-later |
| 50 | chromiumpolicy | MIT |
| 51 | chrpath | GPL-2.0-only |
| 52 | ckermit | BSD-3-Clause |
| 53 | clang | Apache-2.0-with-LLVM-exception |
| 54 | clang-cross-aarch64 | Apache-2.0-with-LLVM-exception |
| 55 | cmake | BSD-3-Clause & BSD-1-Clause & MIT & BSD-2-Clause & curl |
| 56 | codecinfo | CLOSED |
| 57 | codec-user-module | CLOSED |
| 58 | compiler-rt | Apache-2.0-with-LLVM-exception |
| 59 | concurrencykit | BSD-2-Clause & Apache-2.0 |
| 60 | connman | GPL-2.0-only |
| 61 | connman-conf | GPL-2.0-only |
| 62 | coremark | Apache-2.0 |
| 63 | coreutils | GPL-3.0-or-later |
| 64 | createrepo-c | GPL-2.0-only |
| 65 | cross-localedef | LGPL-2.1-only |
| 66 | curl | curl |
| 67 | cwautomacros | GPL-2.0-only |
| 68 | dbus | AFL-2.1 | GPL-2.0-or-later |
| 69 | debianutils | GPL-2.0-only & SMAIL_GPL |
| 70 | debugedit | GPL-2.0-only & GPL-3.0-only & LGPL-2.1-only |
| 71 | demo-launcher | MIT & OFL-1.1 |
| 72 | depmodwrapper-cross | MIT |
| 73 | depot-tools | GPLv3 |
| 74 | desktop-file-utils | GPL-2.0-or-later |
| 75 | diffutils | GPL-3.0-or-later |
| 76 | dnf | GPL-2.0-only |
| 77 | docbook-xml-dtd4 | OASIS |
| 78 | docbook-xsl-stylesheets | XSL |
| 79 | dosfstools | GPL-3.0-only |
| 80 | dropbear | MIT & BSD-3-Clause & BSD-2-Clause & PD |
| 81 | dtc | GPL-2.0-only | BSD-2-Clause |
| 82 | dwarfsrcfiles | GPL-2.0-or-later |
| 83 | e2fsprogs | GPL-2.0-only & LGPL-2.0-only & BSD-3-Clause & MIT |
| 84 | elfutils | ( GPL-2.0-or-later | LGPL-3.0-or-later ) & GPL-3.0-or-later |
| 85 | ell | LGPL-2.1-only |
| 86 | erofs-utils | GPL-2.0-or-later |
| 87 | ethtool | GPL-2.0-or-later |
| 88 | expat | MIT |
| 89 | faac | LGPL-2.0-or-later |
| 90 | faad2 | GPL-2.0-only |
| 91 | file | BSD-2-Clause |
| 92 | findutils | GPL-3.0-or-later |
| 93 | fio | GPL-2.0-only |
| 94 | firmware-pack | BSD-3-Clause |
| 95 | flac | GFDL-1.2 & GPL-2.0-or-later & LGPL-2.1-or-later & BSD-3-Clause |
| 96 | flash-writer | BSD-3-Clause |
| 97 | flex | BSD-3-Clause & LGPL-2.0-or-later |
| 98 | flutter-engine | BSD-3-Clause |
| 99 | flutter-pi | MIT |
| 100 | flutter-samples-animations | BSD-3-Clause |
| 101 | flutter-samples-deeplink-store-example | BSD-3-Clause |
| 102 | flutter-samples-material-3-demo | BSD-3-Clause |
| 103 | flutter-sdk | BSD-3-Clause |
| 104 | flutter-wayland-client | BSD-3-Clause |
| 105 | fontconfig | MIT & MIT & PD |
| 106 | freetype | (FTL | GPL-2.0-or-later) & MIT |
| 107 | fribidi | LGPL-2.1-or-later |
| 108 | gawk | GPL-3.0-only |
| 109 | gcc | GPL-3.0-with-GCC-exception & GPL-3.0-only |
| 110 | gcc-cross-aarch64 | GPL-3.0-with-GCC-exception & GPL-3.0-only |
| 111 | gcc-runtime | GPL-3.0-with-GCC-exception |
| 112 | gdbm | GPL-3.0-only |
| 113 | gdk-pixbuf | LGPL-2.1-or-later |
| 114 | gettext | GPL-3.0-or-later & LGPL-2.1-or-later & MIT |
| 115 | gettext-minimal | FSF-Unlimited |
| 116 | git | GPL-2.0-only & GPL-2.0-or-later & BSD-3-Clause & MIT & BSL-1.0 & LGPL-2.1-or-later |
| 117 | glib-2.0 | LGPL-2.1-or-later & BSD-3-Clause & PD |
| 118 | glibc | GPL-2.0-only & LGPL-2.1-or-later |
| 119 | glibc-locale | GPL-2.0-only & LGPL-2.1-or-later |
| 120 | glib-networking | LGPL-2.1-or-later |
| 121 | glmark2 | GPL-3.0-or-later & SGI-1 |
| 122 | gmp | GPL-2.0-or-later | LGPL-3.0-or-later |
| 123 | gn | BSD-3-Clause & LGPL-2.0-or-later & LGPL-2.1-or-later |
| 124 | gnome-desktop-testing | LGPL-2.0-or-later |
| 125 | gnu-config | GPL-3.0-with-autoconf-exception |
| 126 | gnupg | GPL-3.0-only & LGPL-3.0-only |
| 127 | gnutls | GPL-3.0-or-later & LGPL-2.1-or-later |
| 128 | go-binary | BSD-3-Clause |
| 129 | gobject-introspection | LGPL-2.0-or-later & GPL-2.0-or-later & MIT |
| 130 | go-cross-cortexa55 | BSD-3-Clause |
| 131 | go-helloworld | BSD-3-Clause |
| 132 | go-runtime | BSD-3-Clause |
| 133 | gperf | GPL-3.0-or-later |
| 134 | gpgme | GPL-2.0-or-later & LGPL-2.1-or-later & GPL-3.0-or-later |
| 135 | gptfdisk | GPL-2.0-only |
| 136 | grep | GPL-3.0-only |
| 137 | groff | GPL-3.0-only |
| 138 | gstreamer1.0 | LGPL-2.1-or-later |
| 139 | gstreamer1.0-meta-base | MIT |
| 140 | gstreamer1.0-omx | LGPL-2.1-or-later |
| 141 | gstreamer1.0-plugins-bad | LGPL-2.1-or-later & GPL-2.0-or-later |
| 142 | gstreamer1.0-plugins-base | LGPL-2.1-or-later |
| 143 | gstreamer1.0-plugins-good | LGPL-2.1-or-later |
| 144 | gstreamer1.0-plugins-ugly | LGPL-2.1-or-later & GPL-2.0-or-later |
| 145 | gstreamer1.0-plugin-vspmfilter | LGPL-2.0-only |
| 146 | gstreamer1.0-rtsp-server | LGPL-2.1-or-later |
| 147 | gtk+3 | LGPL-2.0-only & LGPL-2.0-or-later & LGPL-2.1-or-later |
| 148 | gtk-doc | GPL-2.0-only |
| 149 | harfbuzz | MIT |
| 150 | hdparm | BSD-2-Clause & GPL-2.0-only & hdparm |
| 151 | hicolor-icon-theme | GPL-2.0-only |
| 152 | home-panel-demo | MIT & OFL-1.1 |
| 153 | i2c-tools | GPL-2.0-or-later |
| 154 | icu | ICU |
| 155 | iperf3 | BSD-3-Clause |
| 156 | iproute2 | GPL-2.0-or-later |
| 157 | iptables | GPL-2.0-or-later |
| 158 | iso-codes | LGPL-2.1-only |
| 159 | iw | ISC |
| 160 | json-c | MIT |
| 161 | json-glib | LGPL-2.1-only |
| 162 | kbd | GPL-2.0-or-later & LGPL-2.0-or-later & GPL-3.0-or-later |
| 163 | kernel-module-mali | GPL-2.0-only |
| 164 | kernel-module-mmngr | GPL-2.0-only & MIT |
| 165 | kernel-module-mmngrbuf | GPL-2.0-only & MIT |
| 166 | kernel-module-uvcs-drv | GPL-2.0-only & MIT |
| 167 | kernel-module-vspm | GPL-2.0-only & MIT |
| 168 | kernel-module-vspmif | GPL-2.0-only & MIT |
| 169 | kern-tools | GPL-2.0-only & MIT |
| 170 | kexec-tools | GPL-2.0-only |
| 171 | kmod | GPL-2.0-or-later & LGPL-2.1-or-later |
| 172 | lame | LGPL-2.0-or-later |
| 173 | ldconfig | GPL-2.0-or-later |
| 174 | liba52 | GPL-2.0-or-later |
| 175 | libaio | LGPL-2.1-or-later |
| 176 | libarchive | BSD-2-Clause |
| 177 | libassuan | GPL-3.0-or-later & LGPL-2.1-or-later |
| 178 | libatomic-ops | GPL-2.0-only & MIT |
| 179 | libbsd | BSD-3-Clause & BSD-4-Clause & ISC & PD |
| 180 | libcap | BSD-3-Clause | GPL-2.0-only |
| 181 | libcap-ng | GPL-2.0-or-later & LGPL-2.1-or-later |
| 182 | libcheck | LGPL-2.1-or-later |
| 183 | libcomps | GPL-2.0-only |
| 184 | libcxx | Apache-2.0-with-LLVM-exception |
| 185 | libdaemon | LGPL-2.1-or-later |
| 186 | libdnf | LGPL-2.1-or-later |
| 187 | libdrm | MIT |
| 188 | libedit | BSD-3-Clause |
| 189 | libepoxy | MIT |
| 190 | liberation-fonts | OFL-1.1 |
| 191 | libevdev | MIT |
| 192 | libffi | MIT |
| 193 | libgcc | GPL-3.0-with-GCC-exception & GPL-3.0-only |
| 194 | libgcc-initial | GPL-3.0-with-GCC-exception |
| 195 | libgcrypt | GPL-2.0-or-later & LGPL-2.1-or-later |
| 196 | libgpg-error | GPL-2.0-or-later & LGPL-2.1-or-later |
| 197 | libgudev | LGPL-2.1-only |
| 198 | libical | LGPL-2.1-only | MPL-2.0 |
| 199 | libidn2 | (GPL-2.0-or-later | LGPL-3.0-only) & GPL-3.0-or-later & Unicode-DFS-2016 |
| 200 | libinput | MIT |
| 201 | libjpeg-turbo | IJG & BSD-3-Clause & Zlib |
| 202 | libksba | GPL-3.0-or-later & (GPL-2.0-or-later | LGPL-3.0-or-later) |
| 203 | libmd | BSD-3-Clause & BSD-2-Clause |
| 204 | libmicrohttpd | LGPL-2.1-or-later |
| 205 | libmnl | LGPL-2.1-or-later |
| 206 | libmodulemd | MIT |
| 207 | libmpc | LGPL-3.0-only |
| 208 | libnewt | LGPL-2.0-only |
| 209 | libnl | LGPL-2.1-only |
| 210 | libnsl2 | LGPL-2.1-only |
| 211 | libnss-mdns | LGPL-2.1-or-later |
| 212 | libogg | BSD-3-Clause |
| 213 | libomxil | LGPL-2.1-or-later |
| 214 | libpam | GPL-2.0-or-later | BSD-3-Clause |
| 215 | libpcap | BSD-3-Clause |
| 216 | libpciaccess | MIT & MIT |
| 217 | libpcre | BSD-3-Clause |
| 218 | libpcre2 | BSD-3-Clause |
| 219 | libpng | Libpng |
| 220 | libpsl | MIT |
| 221 | libpthread-stubs | MIT |
| 222 | librepo | LGPL-2.1-only |
| 223 | librsvg | LGPL-2.1-or-later |
| 224 | libsamplerate0 | BSD-2-Clause |
| 225 | libseccomp | LGPL-2.1-only |
| 226 | libsndfile1 | LGPL-2.1-only |
| 227 | libsocketcan | LGPL-2.1-only |
| 228 | libsolv | BSD-3-Clause |
| 229 | libsoup | LGPL-2.0-only |
| 230 | libssh2 | BSD-3-Clause |
| 231 | libstd-rs | (MIT | Apache-2.0) & Unicode-3.0 |
| 232 | libtasn1 | GPL-3.0-or-later & LGPL-2.1-or-later |
| 233 | libtheora | BSD-3-Clause |
| 234 | libtirpc | BSD-3-Clause |
| 235 | libtool | GPL-2.0-only & LGPL-2.1-only |
| 236 | libtool-cross | GPL-2.0-only & LGPL-2.1-only |
| 237 | libtraceevent | GPL-2.0-or-later & LGPL-2.1-or-later |
| 238 | libunistring | LGPL-3.0-or-later | GPL-2.0-or-later |
| 239 | libunwind | MIT |
| 240 | liburcu | LGPL-2.1-or-later & MIT |
| 241 | libusb1 | LGPL-2.1-or-later |
| 242 | libuv | MIT |
| 243 | libvorbis | BSD-3-Clause |
| 244 | libwebp | BSD-3-Clause |
| 245 | libx11 | MIT & BSD-1-Clause & HPND & HPND-sell-variant & ISC |
| 246 | libx11-compose-data | MIT & BSD-1-Clause & HPND & HPND-sell-variant & ISC |
| 247 | libxau | MIT |
| 248 | libxcb | MIT |
| 249 | libxcomposite | MIT |
| 250 | libxcrypt | LGPL-2.1-only |
| 251 | libxcursor | MIT |
| 252 | libxdamage | MIT |
| 253 | libxdmcp | MIT |
| 254 | libxext | MIT |
| 255 | libxfixes | MIT |
| 256 | libxft | MIT |
| 257 | libxi | MIT & MIT |
| 258 | libxkbcommon | MIT & MIT |
| 259 | libxml2 | MIT |
| 260 | libxml-parser-perl | Artistic-2.0 |
| 261 | libxrandr | MIT |
| 262 | libxrender | MIT |
| 263 | libxslt | MIT |
| 264 | libxtst | MIT |
| 265 | libyaml | MIT |
| 266 | linux-libc-headers | GPL-2.0-only |
| 267 | linux-renesas | GPL-2.0-only |
| 268 | lrzsz | GPL-2.0-or-later |
| 269 | lttng-modules | LGPL-2.1-only & GPL-2.0-only & MIT |
| 270 | lttng-tools | GPL-2.0-only & LGPL-2.1-only |
| 271 | lttng-ust | LGPL-2.1-or-later & MIT & GPL-2.0-only |
| 272 | lua | MIT |
| 273 | luajit | MIT |
| 274 | lvgl | MIT |
| 275 | lvgl-home-panel-demo | MIT |
| 276 | lz4 | BSD-2-Clause | GPL-2.0-only |
| 277 | lzlib | BSD-2-Clause |
| 278 | lzo | GPL-2.0-or-later |
| 279 | lzop | GPL-2.0-or-later |
| 280 | m4 | GPL-3.0-only |
| 281 | make | GPL-3.0-only |
| 282 | makedepend | MIT |
| 283 | makedevs | GPL-2.0-only |
| 284 | make-mod-scripts | GPL-2.0-only |
| 285 | memtester | GPL-2.0-only |
| 286 | mesa | MIT |
| 287 | meson | Apache-2.0 |
| 288 | minicom | GPL-2.0-or-later |
| 289 | mmngrbuf-user-module | MIT |
| 290 | mmngr-user-module | MIT |
| 291 | mobile-broadband-provider-info | PD |
| 292 | mpeg2dec | GPL-2.0-or-later |
| 293 | mpfr | LGPL-3.0-or-later |
| 294 | mpg123 | LGPL-2.1-only |
| 295 | mtdev | MIT |
| 296 | mtd-utils | GPL-2.0-or-later |
| 297 | mtools | GPL-3.0-only |
| 298 | nasm | BSD-2-Clause |
| 299 | ncurses | MIT |
| 300 | neard | GPL-2.0-only |
| 301 | netbase | GPL-2.0-only |
| 302 | nettle | LGPL-3.0-or-later | GPL-2.0-or-later |
| 303 | nghttp2 | MIT |
| 304 | ninja | Apache-2.0 |
| 305 | nodejs | MIT & ISC & BSD-2-Clause & BSD-3-Clause & Artistic-2.0 & Apache-2.0 |
| 306 | npth | LGPL-2.0-or-later |
| 307 | nspr | GPL-2.0-only | MPL-2.0 | LGPL-2.1-only |
| 308 | nss | (MPL-2.0 & MIT) | (MPL-2.0 & GPL-2.0-or-later & MIT) | (MPL-2.0 & LGPL-2.1-or-later & MIT) |
| 309 | numactl | GPL-2.0-only & LGPL-2.1-only |
| 310 | ofono | GPL-2.0-only |
| 311 | openssh | BSD-2-Clause & BSD-3-Clause & ISC & MIT |
| 312 | openssl | Apache-2.0 |
| 313 | opkg-utils | GPL-2.0-or-later |
| 314 | orc | BSD-2-Clause & BSD-3-Clause |
| 315 | os-release | MIT |
| 316 | packagegroup-base | MIT |
| 317 | packagegroup-benchmark-tools | MIT |
| 318 | packagegroup-core-boot | MIT |
| 319 | packagegroup-core-ssh-dropbear | MIT |
| 320 | packagegroup-core-tools-profile | MIT |
| 321 | packagegroup-core-tools-testapps | MIT |
| 322 | packagegroup-core-weston | MIT |
| 323 | packagegroup-flutter-demo | MIT |
| 324 | packagegroup-flutter-sdk-toolchain | MIT |
| 325 | packagegroup-gstreamer1.0-plugins | MIT |
| 326 | packagegroup-lvgl-demo | MIT |
| 327 | packagegroup-multimedia-kernel | GPL-2.0-only & MIT |
| 328 | packagegroup-multimedia-libs | GPL-2.0-only & MIT |
| 329 | packagegroup-rz-browser | MIT |
| 330 | packagegroup-rz-browser-cjk-fonts | MIT |
| 331 | packagegroup-rzg-hmi-sdk-demo | MIT |
| 332 | packagegroup-rz-vlp-tools | MIT |
| 333 | pango | LGPL-2.0-or-later |
| 334 | parted | GPL-3.0-or-later |
| 335 | patch | GPL-3.0-only |
| 336 | patchelf | GPL-3.0-only |
| 337 | pbzip2 | bzip2-1.0.6 |
| 338 | pciutils | GPL-2.0-or-later |
| 339 | perf | GPL-2.0-only |
| 340 | perl | Artistic-1.0 | GPL-1.0-or-later |
| 341 | perlcross | Artistic-1.0 | GPL-1.0-or-later |
| 342 | pigz | Zlib & Apache-2.0 |
| 343 | pinentry | GPL-2.0-only |
| 344 | pixman | MIT & PD |
| 345 | pkgconfig | GPL-2.0-or-later |
| 346 | popt | MIT |
| 347 | powertop | GPL-2.0-only |
| 348 | ppp | BSD-3-Clause & BSD-3-Clause-Attribution & GPL-2.0-or-later & LGPL-2.0-or-later & PD & RSA-MD |
| 349 | procps | GPL-2.0-or-later & LGPL-2.0-or-later |
| 350 | pseudo | LGPL-2.1-only |
| 351 | psmisc | GPL-2.0-only |
| 352 | ptest-runner | GPL-2.0-or-later |
| 353 | pulseaudio | LGPL-2.1-or-later & MIT & BSD-3-Clause |
| 354 | python3 | PSF-2.0 |
| 355 | python3-build | MIT |
| 356 | python3-calver | Apache-2.0 |
| 357 | python3-dbus | MIT |
| 358 | python3-dbusmock | GPL-3.0-only |
| 359 | python3-docutils | PSF-2.0 & BSD-2-Clause & GPL-3.0-only |
| 360 | python3-editables | MIT |
| 361 | python3-flit-core | BSD-3-Clause |
| 362 | python3-hatchling | MIT |
| 363 | python3-importlib-metadata | Apache-2.0 |
| 364 | python3-installer | MIT |
| 365 | python3-jinja2 | BSD-3-Clause |
| 366 | python3-kconfiglib | ISC |
| 367 | python3-mako | MIT |
| 368 | python3-markupsafe | BSD-3-Clause |
| 369 | python3-more-itertools | MIT |
| 370 | python3-packaging | Apache-2.0 | BSD-2-Clause |
| 371 | python3-pathlib2 | MIT |
| 372 | python3-pathspec | MPL-2.0 |
| 373 | python3-pcpp | BSD-3-Clause |
| 374 | python3-pip | MIT & Apache-2.0 & MPL-2.0 & LGPL-2.1-only & BSD-3-Clause & PSF-2.0 & BSD-2-Clause |
| 375 | python3-pluggy | MIT |
| 376 | python3-py | MIT |
| 377 | python3-pycairo | LGPL-2.1-only & MPL-1.1 |
| 378 | python3-pygments | BSD-2-Clause |
| 379 | python3-pygobject | LGPL-2.1-only |
| 380 | python3-pyparsing | MIT |
| 381 | python3-pyproject-hooks | MIT |
| 382 | python3-setuptools | MIT |
| 383 | python3-setuptools-scm | MIT |
| 384 | python3-six | MIT |
| 385 | python3-toml | MIT |
| 386 | python3-tomli | MIT |
| 387 | python3-trove-classifiers | Apache-2.0 |
| 388 | python3-typing-extensions | PSF-2.0 |
| 389 | python3-wheel | MIT |
| 390 | python3-zipp | MIT |
| 391 | qemu | GPL-2.0-only & LGPL-2.1-only |
| 392 | qemuwrapper-cross | MIT |
| 393 | quilt | GPL-2.0-only |
| 394 | quota | GPL-2.0-or-later & LGPL-2.1-or-later |
| 395 | re2c | PD |
| 396 | readline | GPL-3.0-or-later |
| 397 | rpcbind | BSD-3-Clause |
| 398 | rpm | GPL-2.0-only |
| 399 | rsync | GPL-3.0-or-later |
| 400 | run-postinsts | MIT |
| 401 | rust | (MIT | Apache-2.0) & Unicode-3.0 |
| 402 | rust-llvm | Apache-2.0-with-LLVM-exception |
| 403 | sbc | GPL-2.0-or-later & LGPL-2.1-or-later |
| 404 | seatd | MIT |
| 405 | sed | GPL-3.0-or-later |
| 406 | setserial | GPL-2.0-only |
| 407 | shadow | BSD-3-Clause |
| 408 | shadow-securetty | MIT |
| 409 | shadow-sysroot | BSD-3-Clause | Artistic-1.0 |
| 410 | shared-mime-info | GPL-2.0-only |
| 411 | slang | GPL-2.0-only |
| 412 | socat | GPL-2.0-with-OpenSSL-exception |
| 413 | source-han-sans-cn-fonts | OFL-1.1 |
| 414 | source-han-sans-jp-fonts | OFL-1.1 |
| 415 | source-han-sans-kr-fonts | OFL-1.1 |
| 416 | source-han-sans-tw-fonts | OFL-1.1 |
| 417 | speex | BSD-3-Clause |
| 418 | speexdsp | BSD-3-Clause |
| 419 | sqlite3 | PD |
| 420 | squashfs-tools | GPL-2.0-only |
| 421 | stress-ng | GPL-2.0-only |
| 422 | swig | BSD-3-Clause & GPL-3.0-only |
| 423 | sysbench | GPL-2.0-only |
| 424 | syslinux | GPL-2.0-or-later |
| 425 | systemd | GPL-2.0-only & LGPL-2.1-or-later |
| 426 | systemd-compat-units | MIT |
| 427 | systemd-conf | MIT |
| 428 | systemd-serialgetty | GPL-2.0-or-later |
| 429 | systemd-systemctl | MIT |
| 430 | systemtap | GPL-2.0-only |
| 431 | taglib | LGPL-2.1-only | MPL-1.1 |
| 432 | tar | GPL-3.0-only |
| 433 | tcf-agent | EPL-1.0 | EDL-1.0 |
| 434 | tcp-wrappers | BSD-1-Clause |
| 435 | texinfo-dummy | MIT |
| 436 | tomlc99 | MIT |
| 437 | trusted-firmware-a | BSD-3-Clause & MIT |
| 438 | tzcode | PD & BSD-3-Clause |
| 439 | tzdata | PD & BSD-3-Clause |
| 440 | u-boot | GPL-2.0-or-later |
| 441 | unifdef | BSD-2-Clause |
| 442 | unzip | Info-ZIP |
| 443 | update-rc.d | GPL-2.0-or-later |
| 444 | usbutils | GPL-2.0-or-later & (GPL-2.0-only | GPL-3.0-only) |
| 445 | utfcpp | BSL-1.0 & BSD-3-Clause |
| 446 | util-linux | GPL-1.0-or-later & GPL-2.0-or-later & LGPL-2.1-or-later & BSD-2-Clause & BSD-3-Clause & BSD-4-Clause & MIT |
| 447 | util-linux-libuuid | BSD-3-Clause |
| 448 | util-macros | MIT & MIT |
| 449 | v4l2-init | MIT |
| 450 | v4l-gst | LGPL-2.1-or-later |
| 451 | v4l-utils | GPL-2.0-only & LGPL-2.1-only |
| 452 | vala | LGPL-2.1-only |
| 453 | volatile-binds | MIT |
| 454 | vspmif-user-module | MIT |
| 455 | watchdog | GPL-2.0-or-later |
| 456 | watchdog-config | MIT |
| 457 | wayland | MIT |
| 458 | wayland-protocols | MIT |
| 459 | wayland-utils | MIT |
| 460 | weston | MIT |
| 461 | weston-init | MIT |
| 462 | which | GPL-3.0-or-later |
| 463 | wireless-regdb | ISC |
| 464 | wpa-supplicant | BSD-3-Clause |
| 465 | xcb-proto | MIT |
| 466 | xkeyboard-config | MIT & MIT |
| 467 | xmlto | GPL-2.0-only |
| 468 | xorgproto | MIT |
| 469 | xtrans | MIT |
| 470 | xz | GPL-2.0-or-later & GPL-3.0-with-autoconf-exception & LGPL-2.1-or-later & PD |
| 471 | yavta | GPL-2.0-only |
| 472 | zip | Info-ZIP |
| 473 | zlib | Zlib |
| 474 | zstd | BSD-3-Clause | GPL-2.0-only |
The HMI SDK includes a sample movie that is a part of a movie 'Big Buck Bunny'. The sample movie in 1080p 30fps was created from the first 30 seconds of the movie (see also README). 'Big Buck Bunny' is licensed under the Creative Commons Attribution 3.0 license.
'Big Buck Bunny'
(c) copyright 2008, Blender Foundation / www.bigbuckbunny.org
For more information, visit https://peach.blender.org/.
