How to Develop Flutter HMI Applications Using FlutterViz¶

FlutterViz is easy to use interface with Flutter Drag and Drop UI builder to quickly kick-start your project. This open-source project aims to empower developers by providing a free and extensible visual Flutter UI builder. For more information about FlutterViz, see the FlutterViz GitHub repository.

This guide describes how to use FlutterViz, a web-based visual UI builder, to develop Flutter HMI applications. You will complete the following steps:

Step 1: Create a Flutter Application Using FlutterViz
Step 2: Prepare the Flutter Sample Application Package
Step 3: Update the Flutter Sample Application Package
Step 4: Build the Flutter Sample Application
Step 5: Deploy the Flutter Sample Application
Step 6: Run the Flutter Sample Application

Step 1: Create Flutter Applications Using FlutterViz¶

1-1. Create an account and log in¶

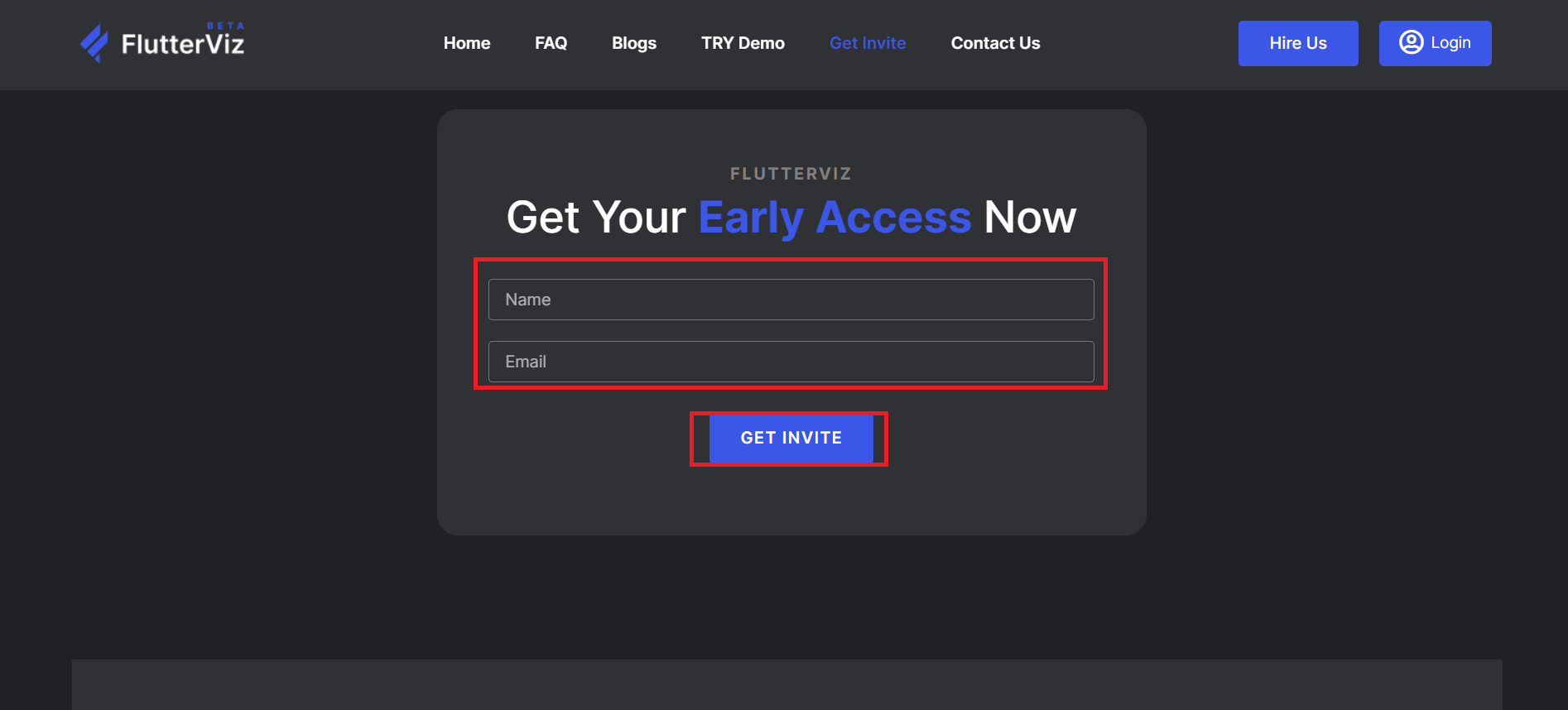

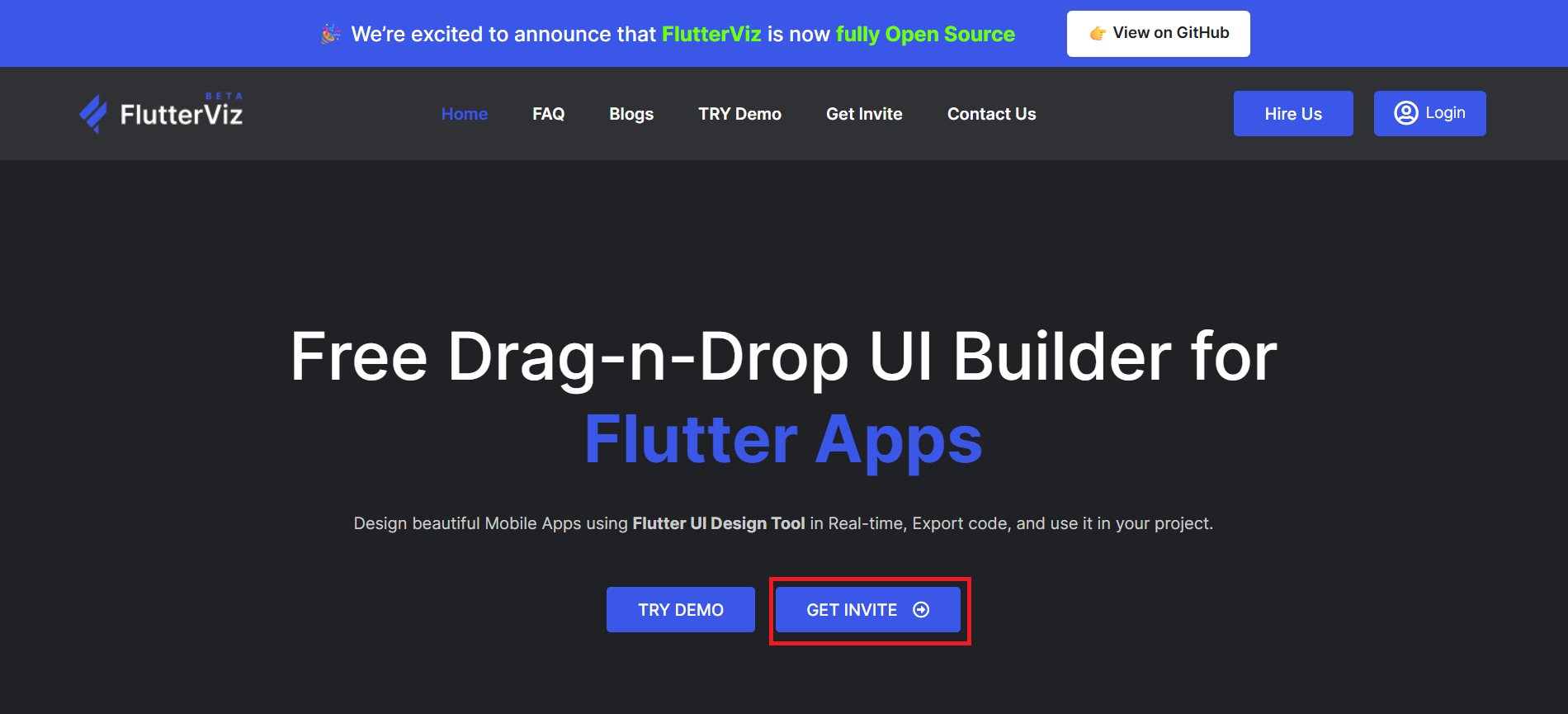

Open FlutterViz and click GET INVITE to obtain the invitation code required to create an account.

Enter a username and your email address, then click GET INVITE.

The invitation code will be sent to the email address you entered.

Once you receive the code, click Login, then select Click here to Sign Up to create a new account.

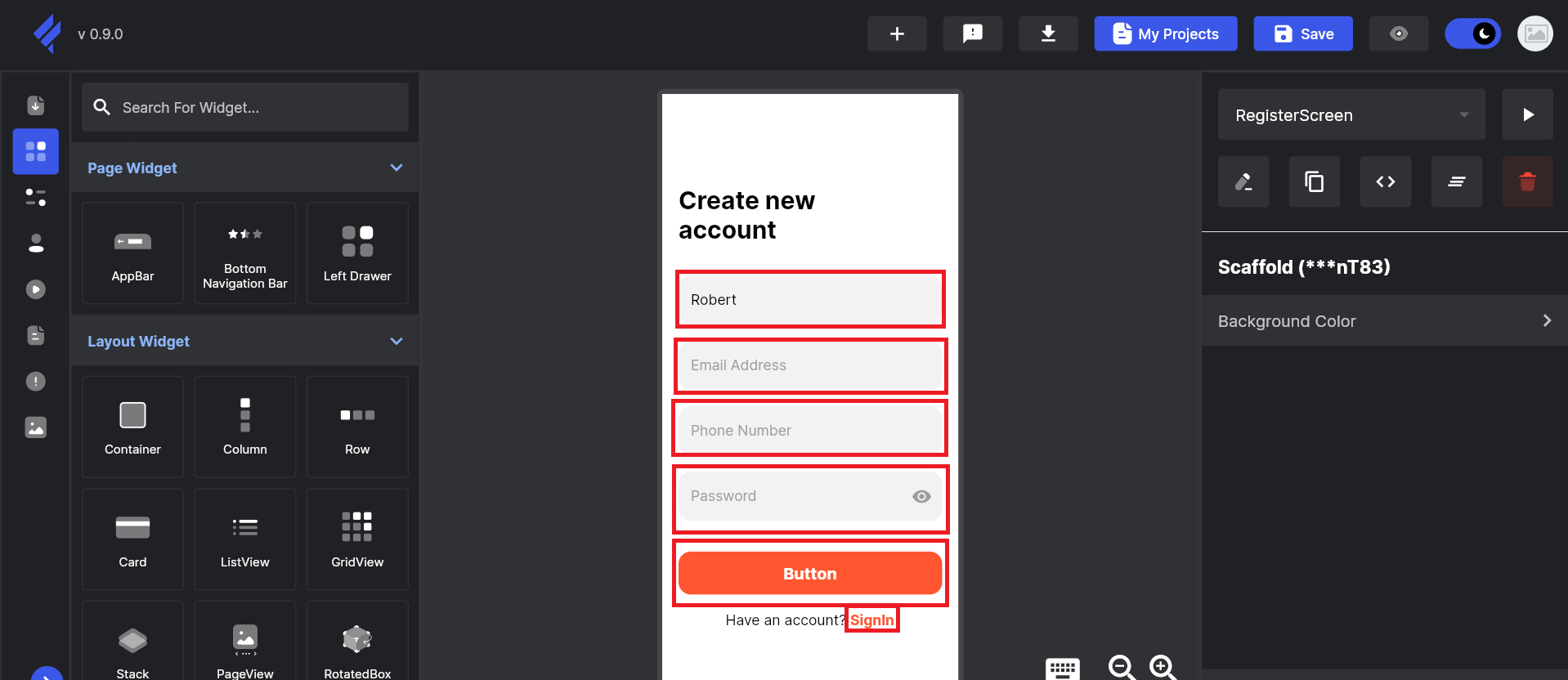

Enter your username, email address, password, and the invitation code you received, then click Sign Up.

1-2. Create a new project¶

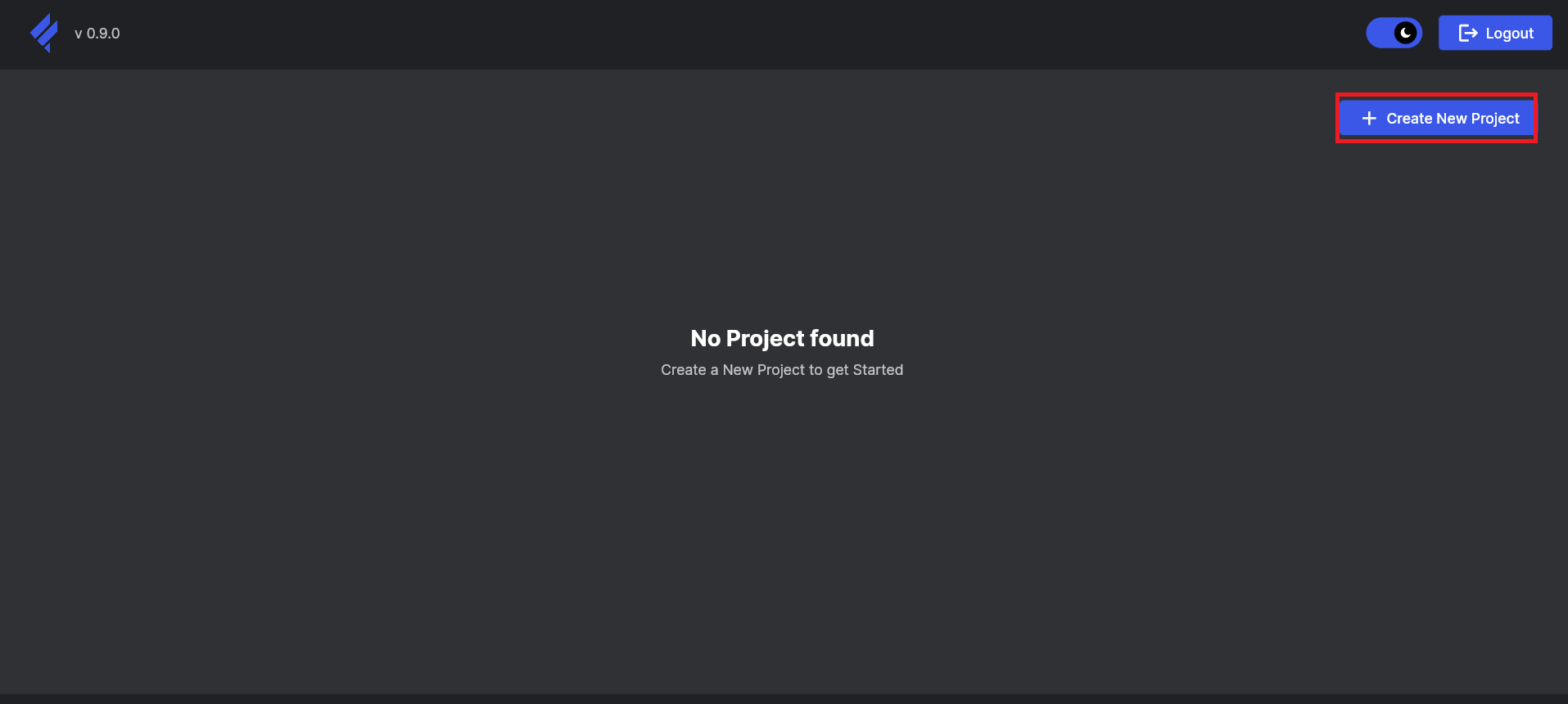

After creating a new account, select Create New Project.

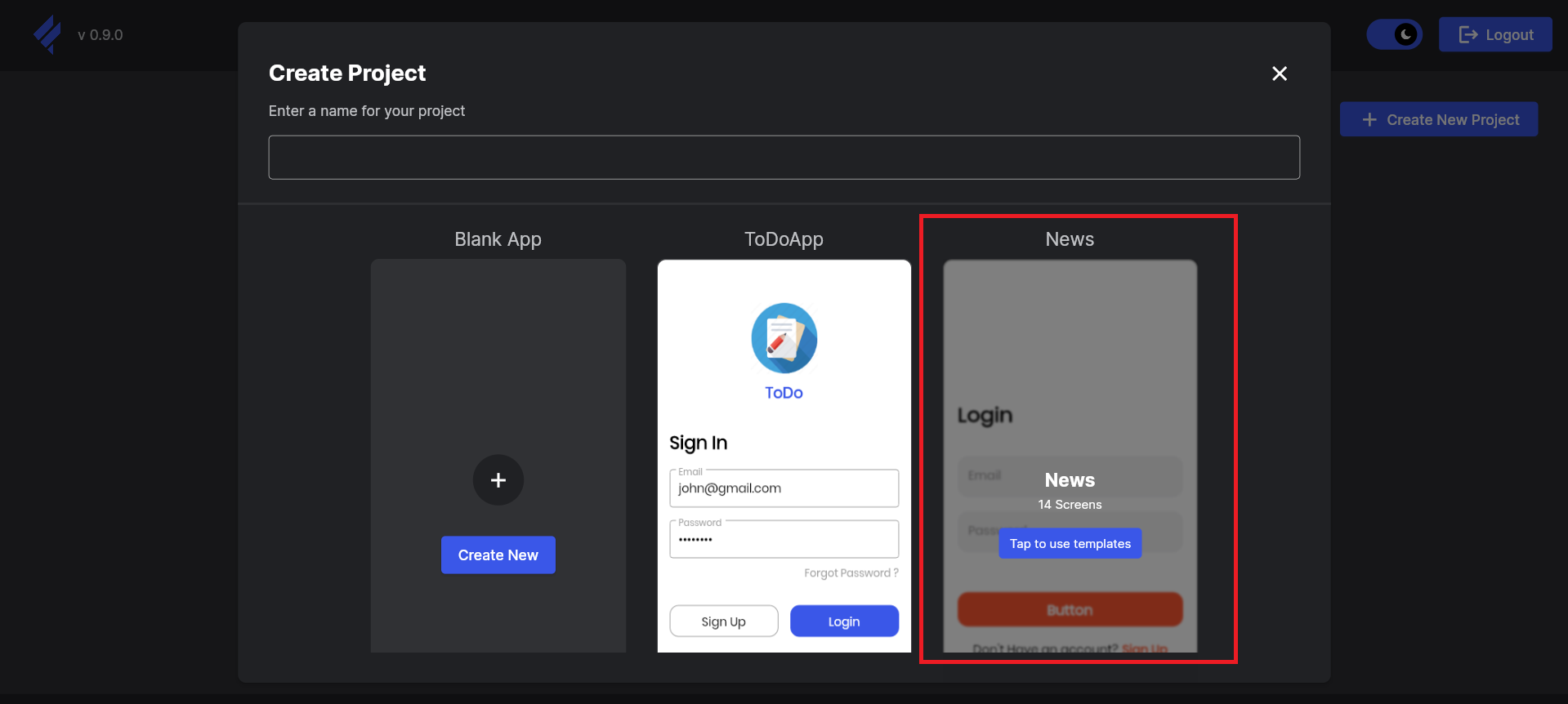

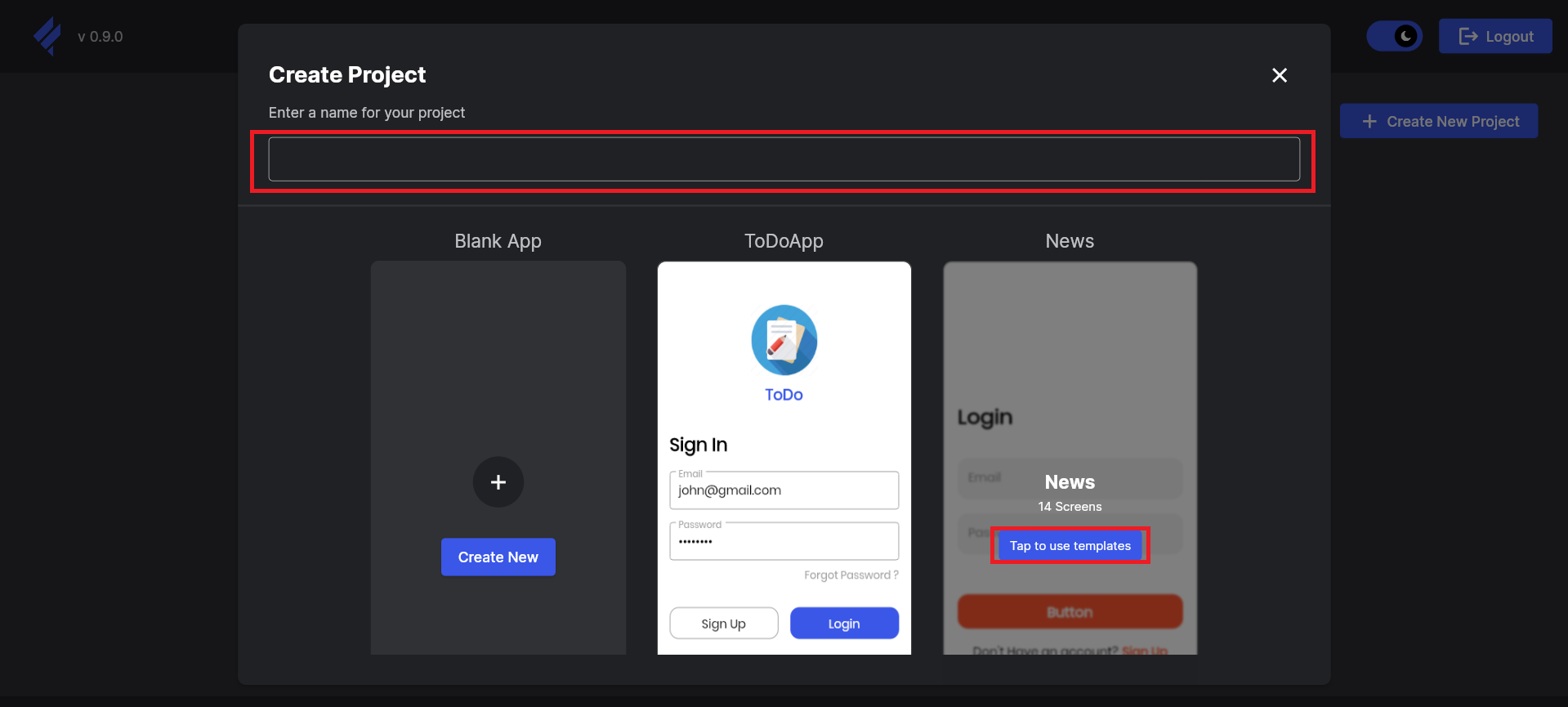

Select the template to use. This guide uses the Blank App template.
Enter your project name, then click Create New to continue.

1-3. Create screens¶

In this sample application, 3 screens will be created:

• SelectScreen
• JPGScreen
• GIFScreen

SelectScreen¶

1. Create a new screen and choose a template to use.

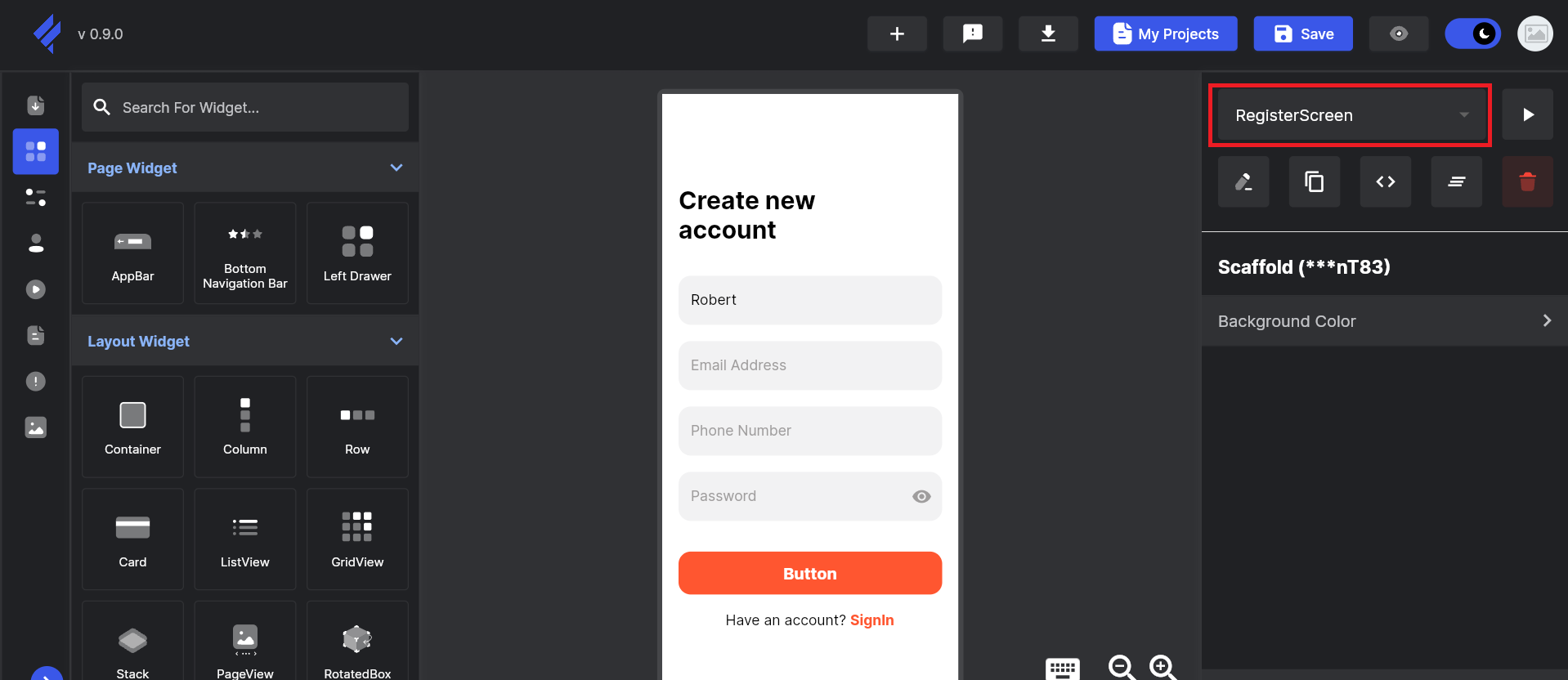

   Click + New Screen in the top-right corner to create a new screen.


   Enter a name for your project, as "SelectScreen".
   Then, go to the Welcome section and choose WelcomeScreen#2 as the template to use.


2. Delete and add widgets.

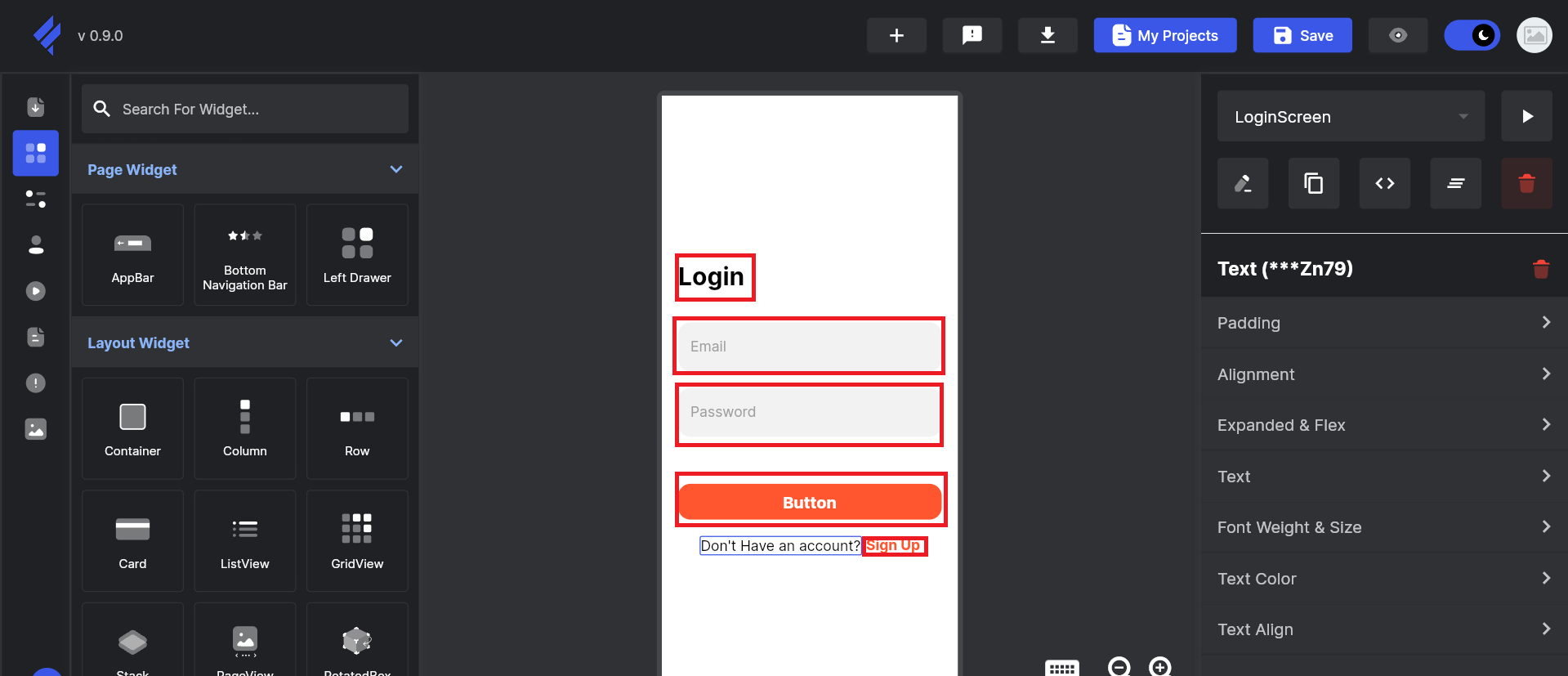

   After you successfully create SelectScreen, the screen will appear as shown below.


   In the left-side panel, select the third option, Tree View. You will see the widgets listed as shown below.


   Right-click a widget to display the available options, as shown below (left).

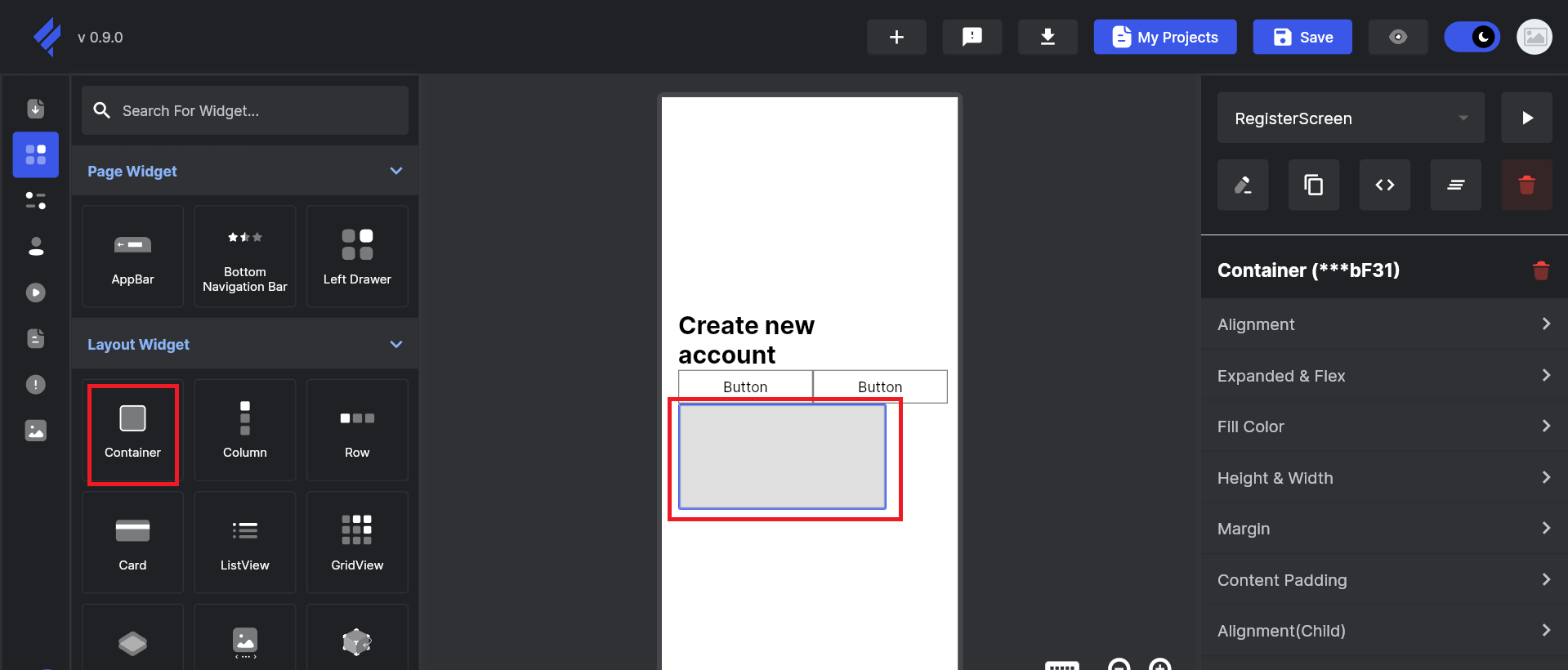

   Use these options to add or delete widgets as needed (right). For this example:
   - Delete the Row and Image widgets.

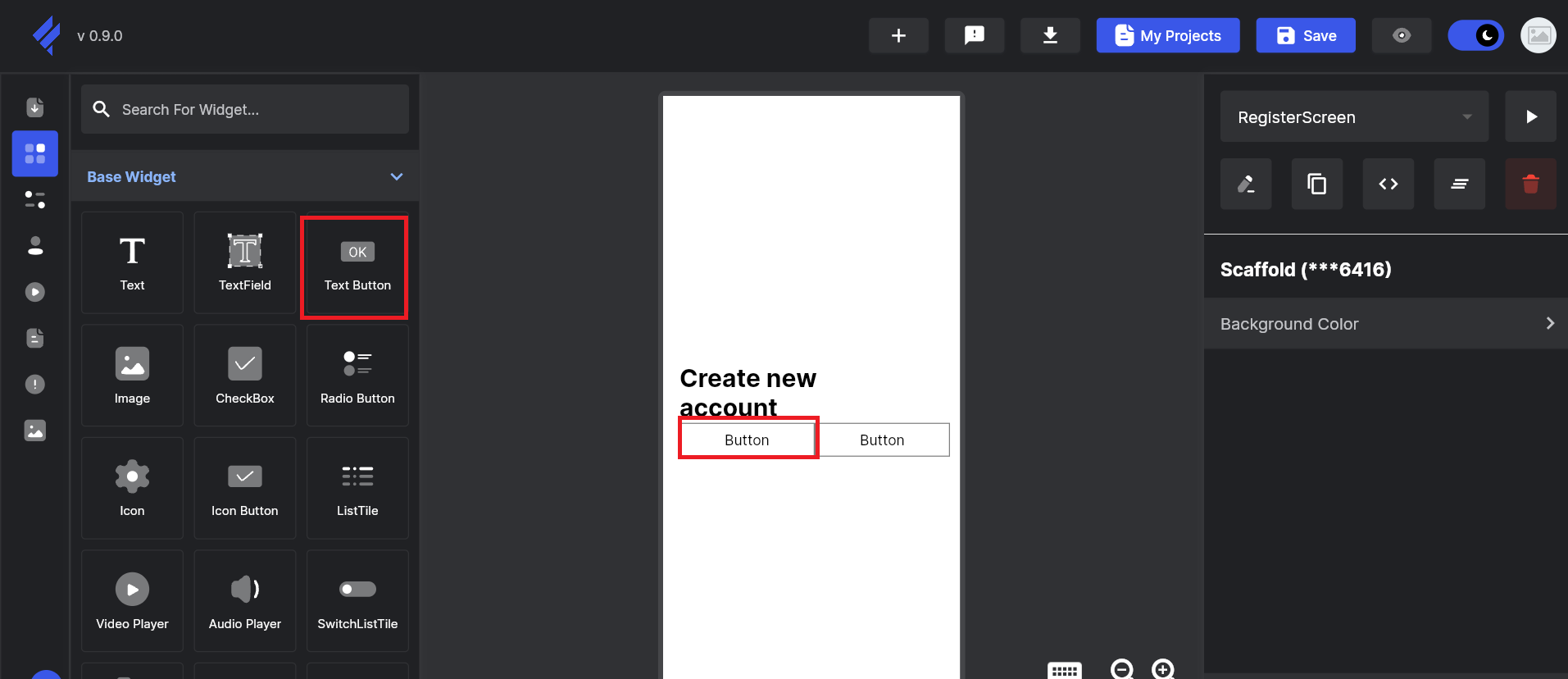

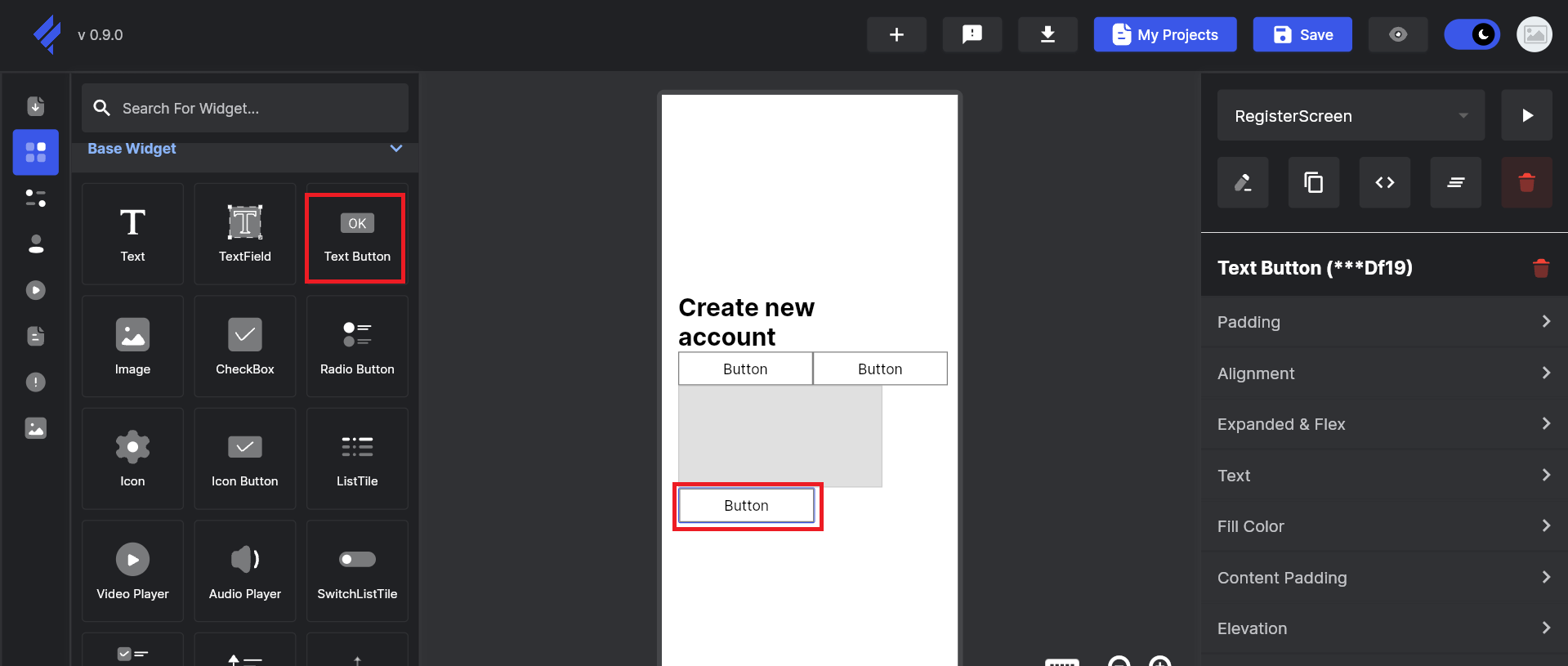

   - Add a Stack widget and a Text Button widget.
   - Make sure the Column and the newly added Text Button are wrapped inside the Stack widget.


3. Modify the properties of each widget.

   Modify the widgets starting from the top of the Tree View.

   Click each widget to display its properties in the right-side panel.
   Only change the settings shown below, and keep all other properties at their default values.

   • Stack
     Change the alignment to "Center".

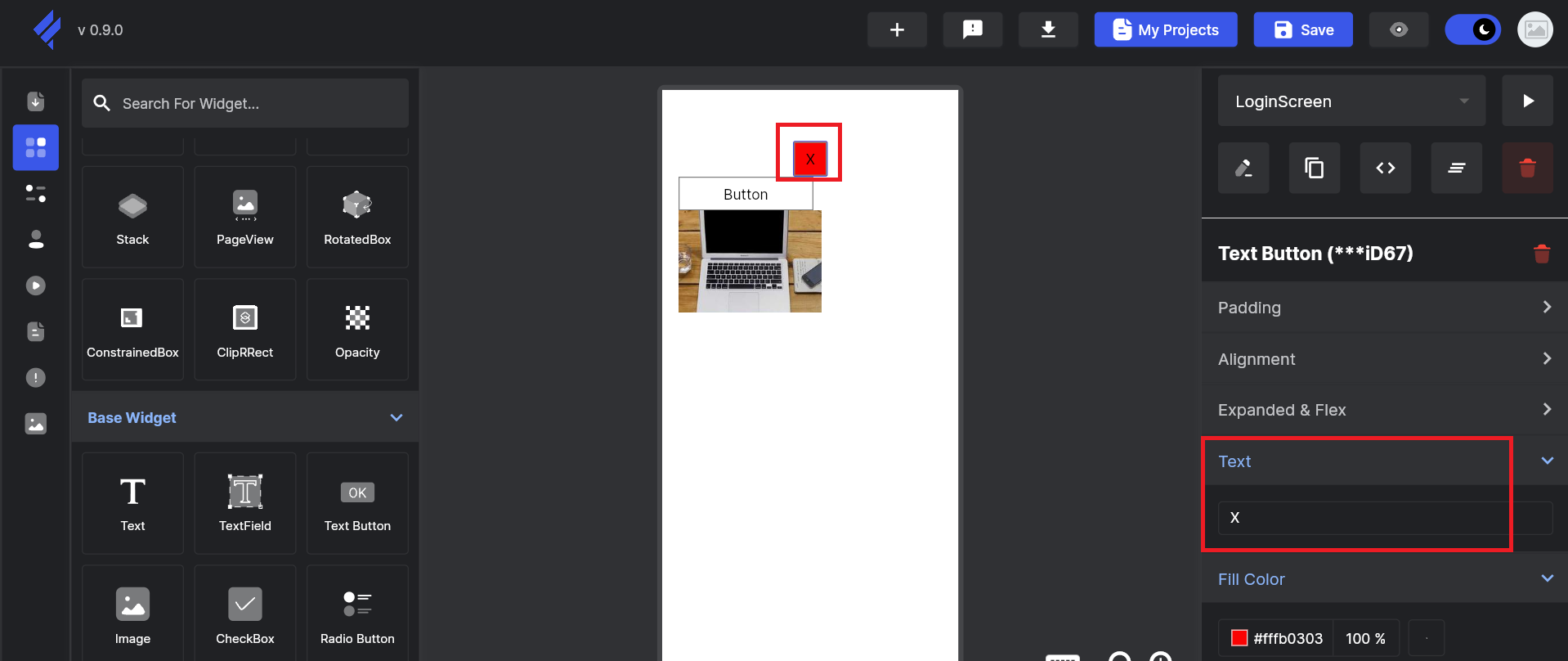

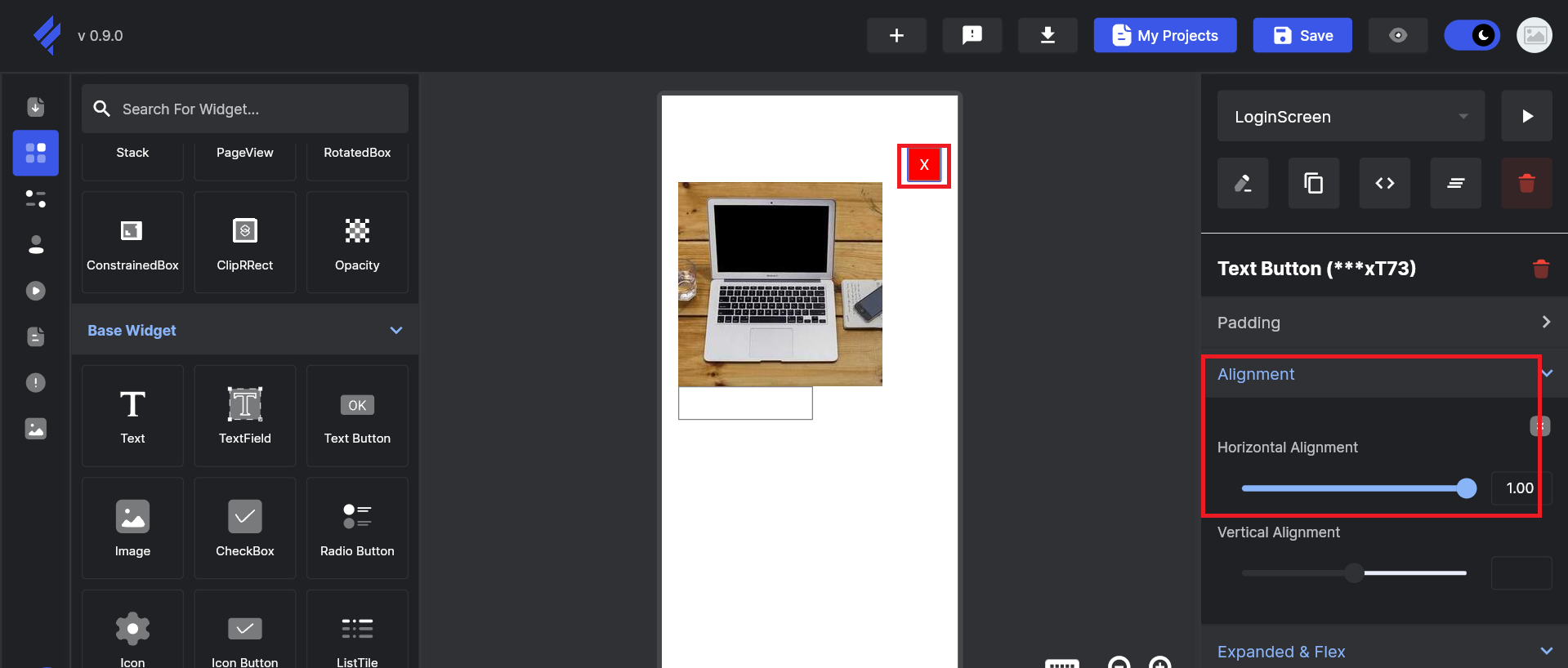

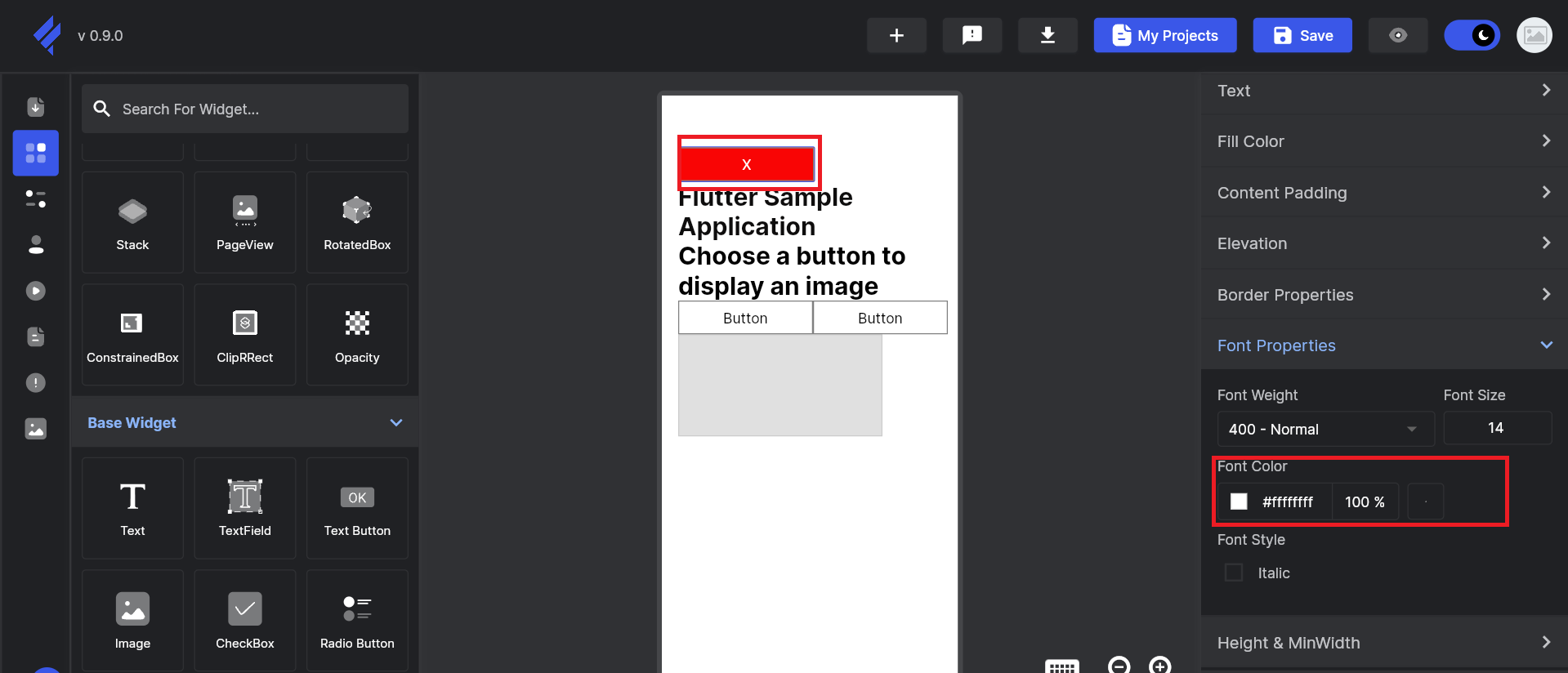

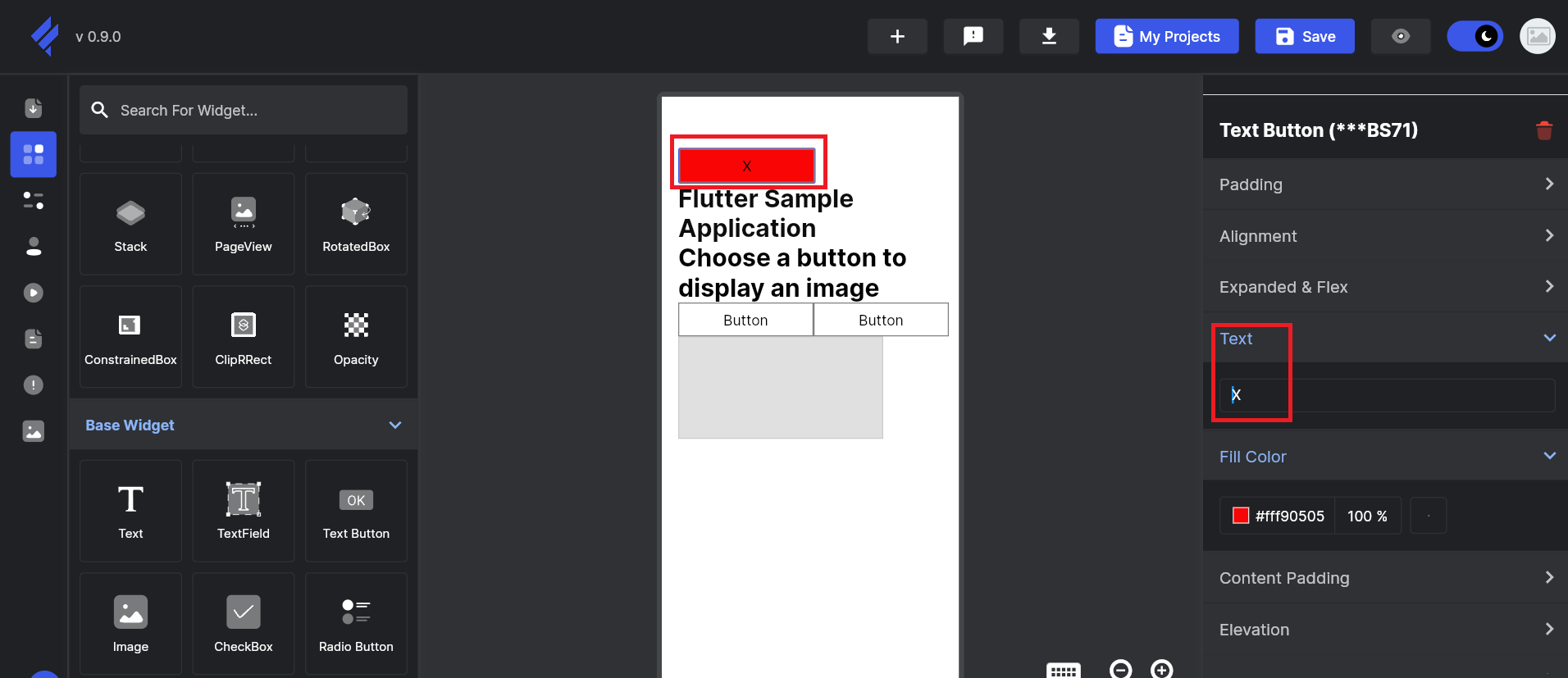

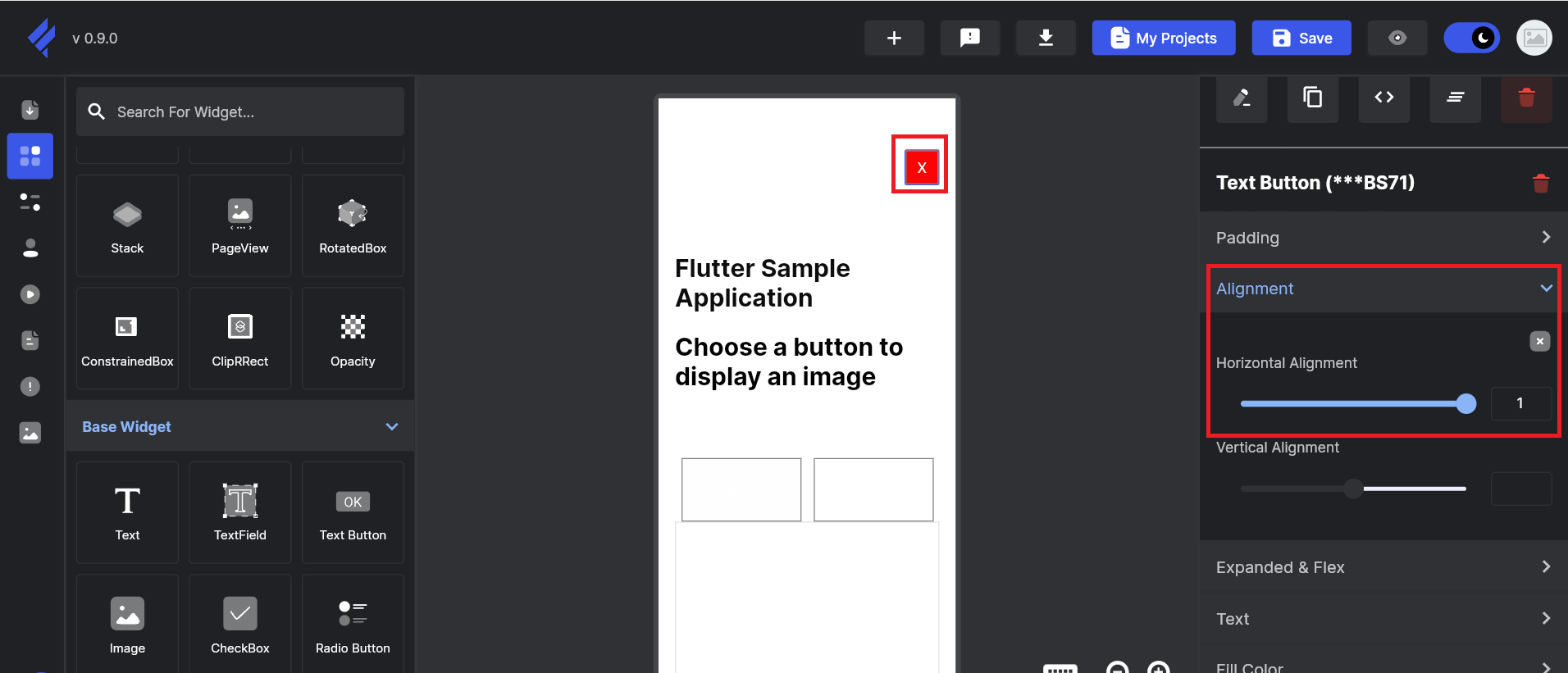

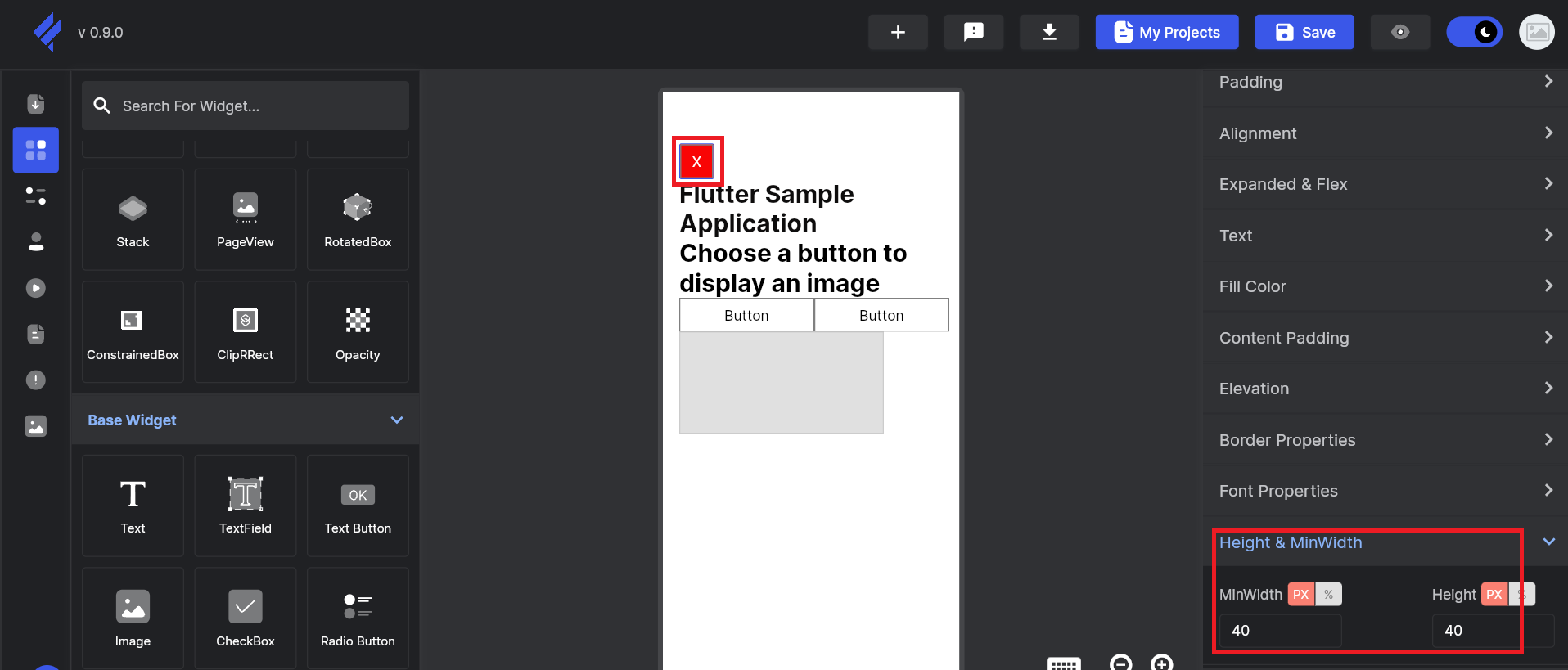

   • "X" Text Button
     The newly added Text button wrapped inside the Stack.

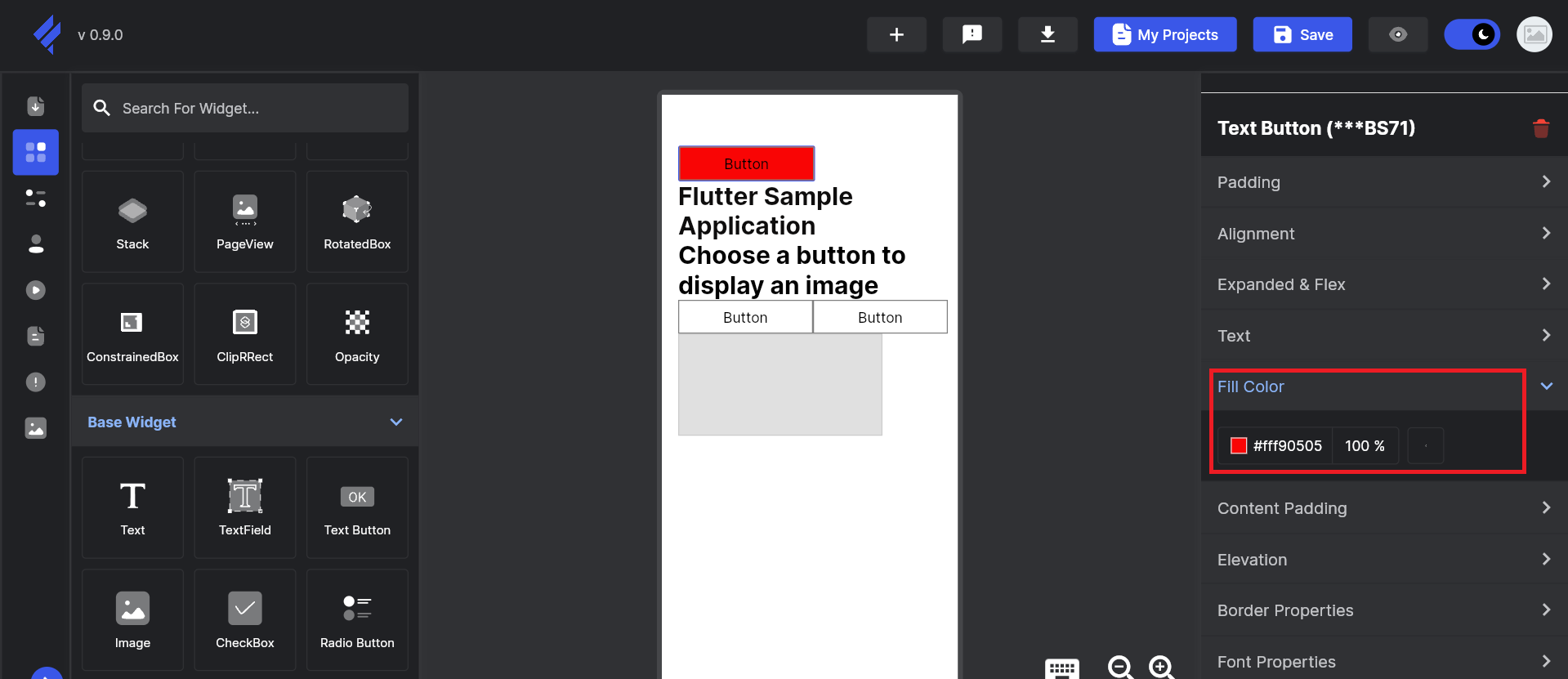

     Change the following settings.

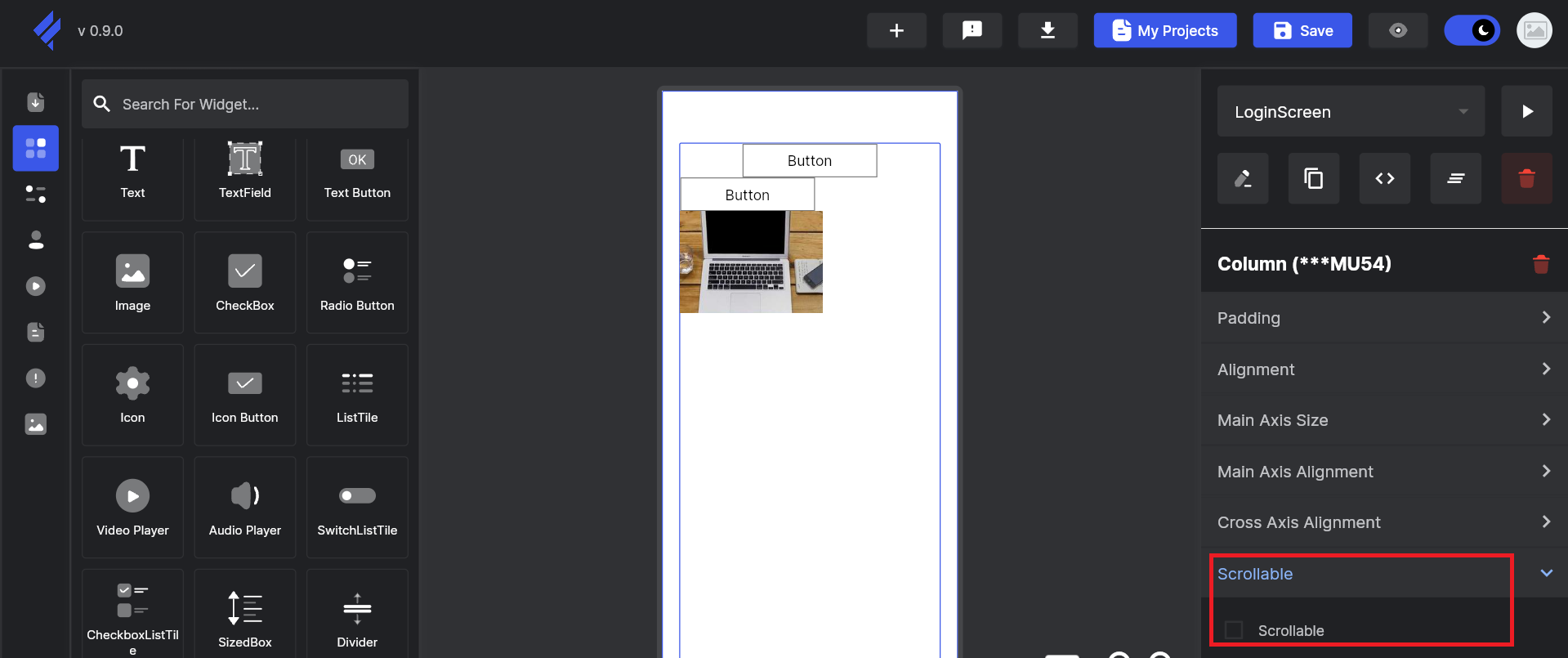

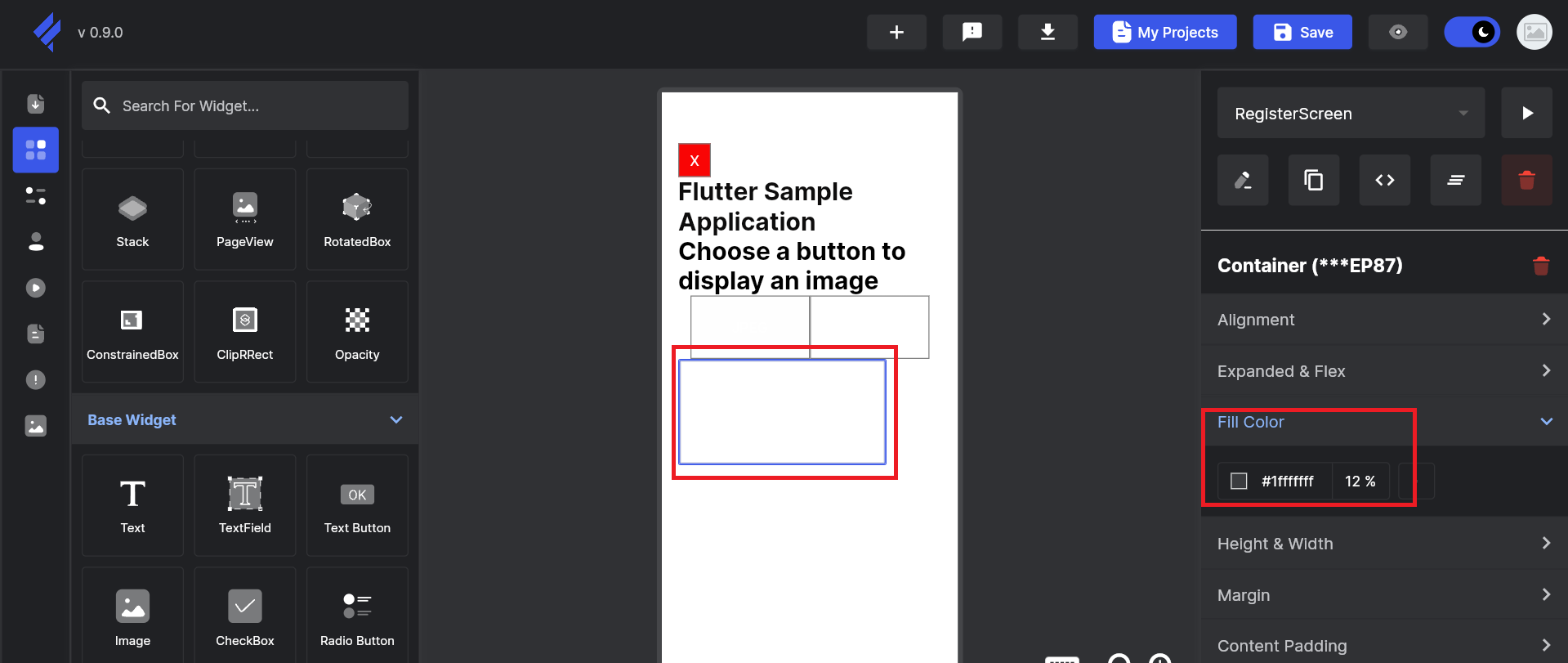

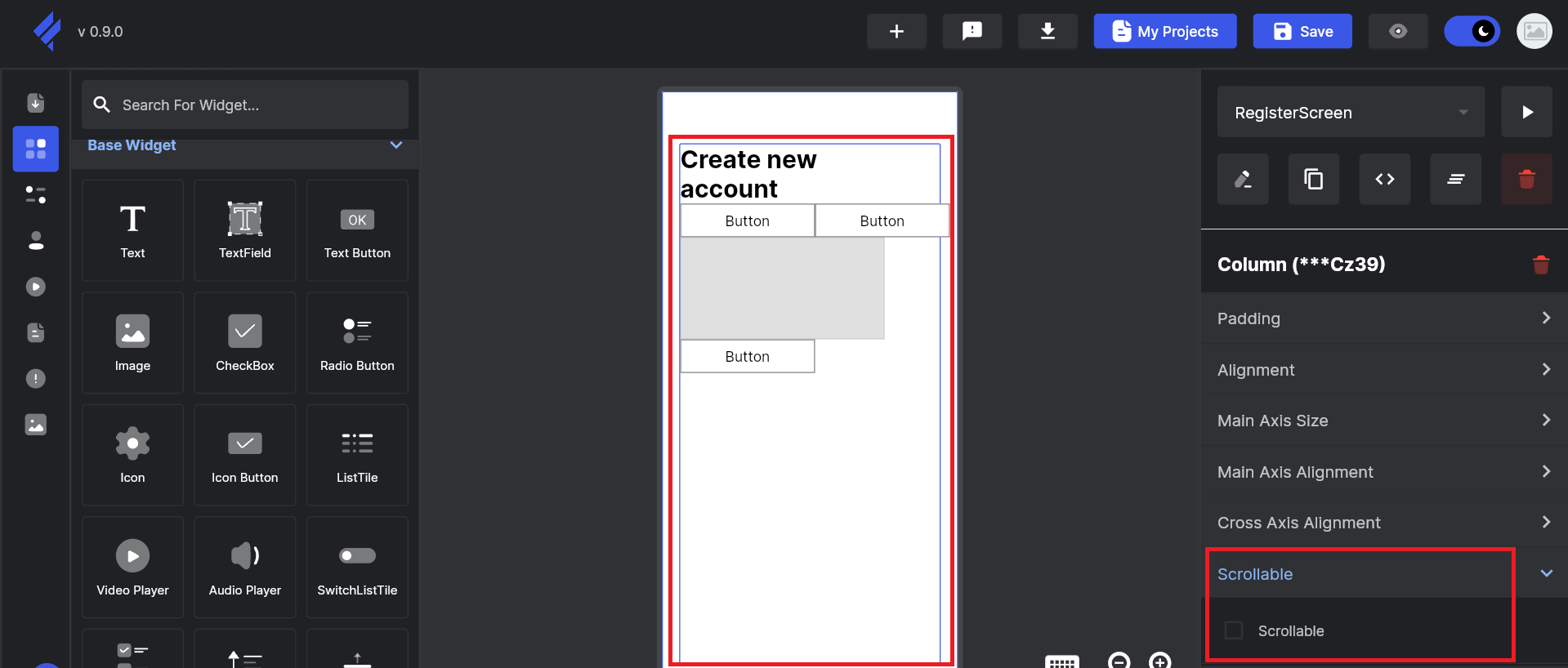

   • Column

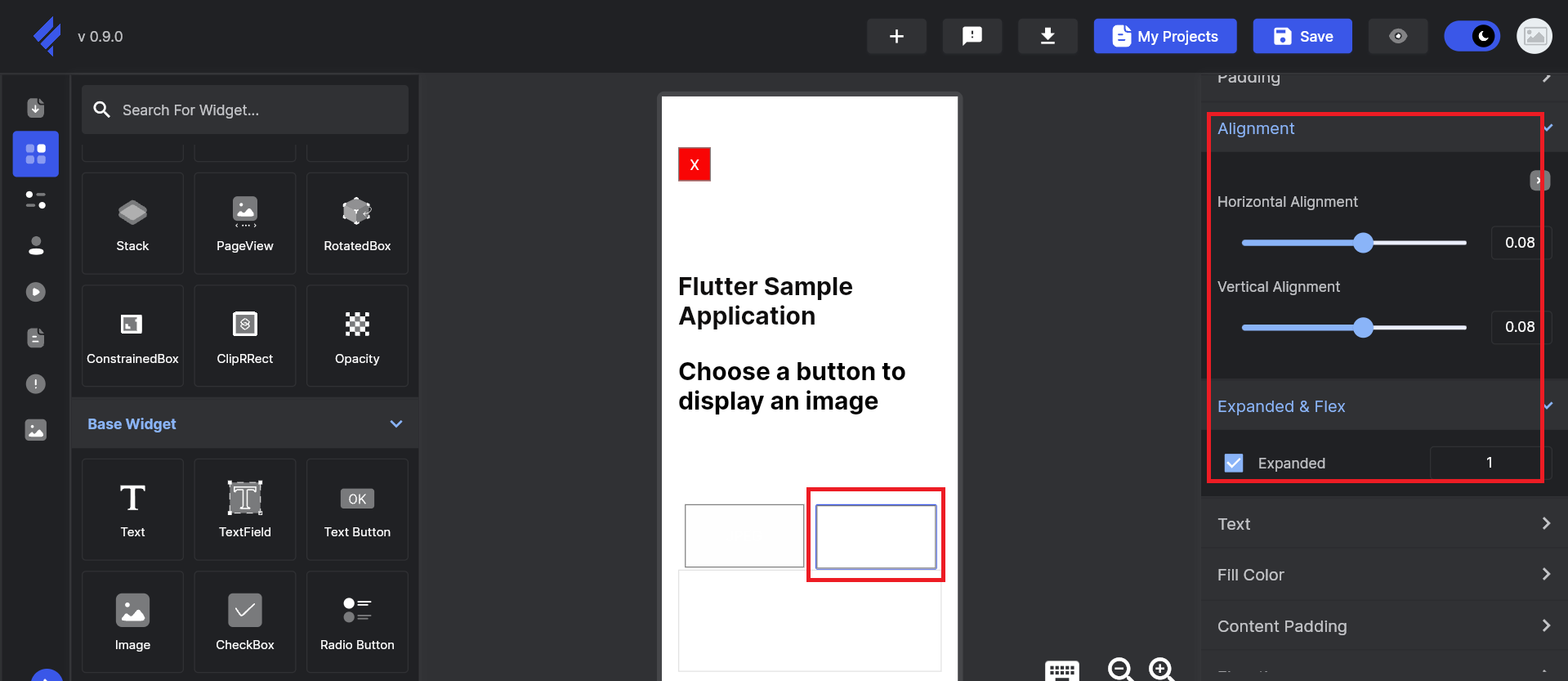

     Change the following settings.

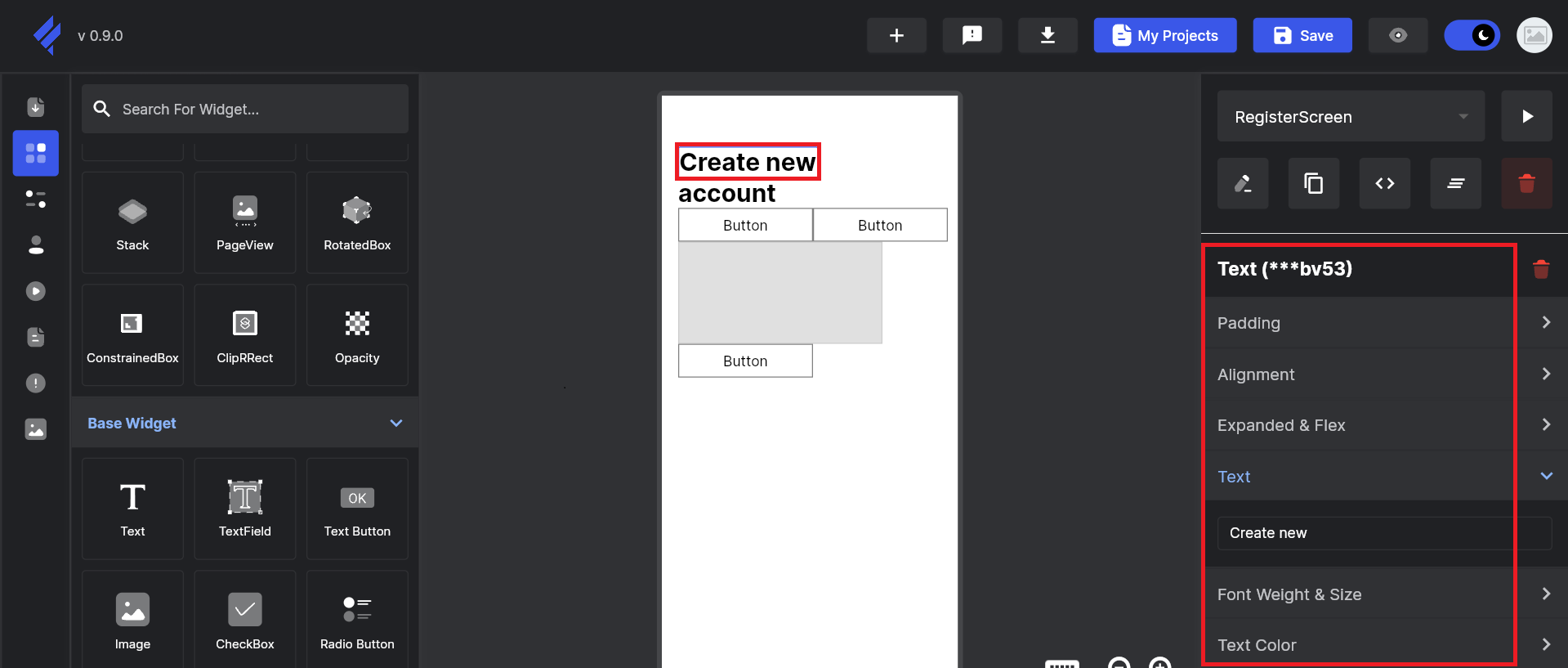

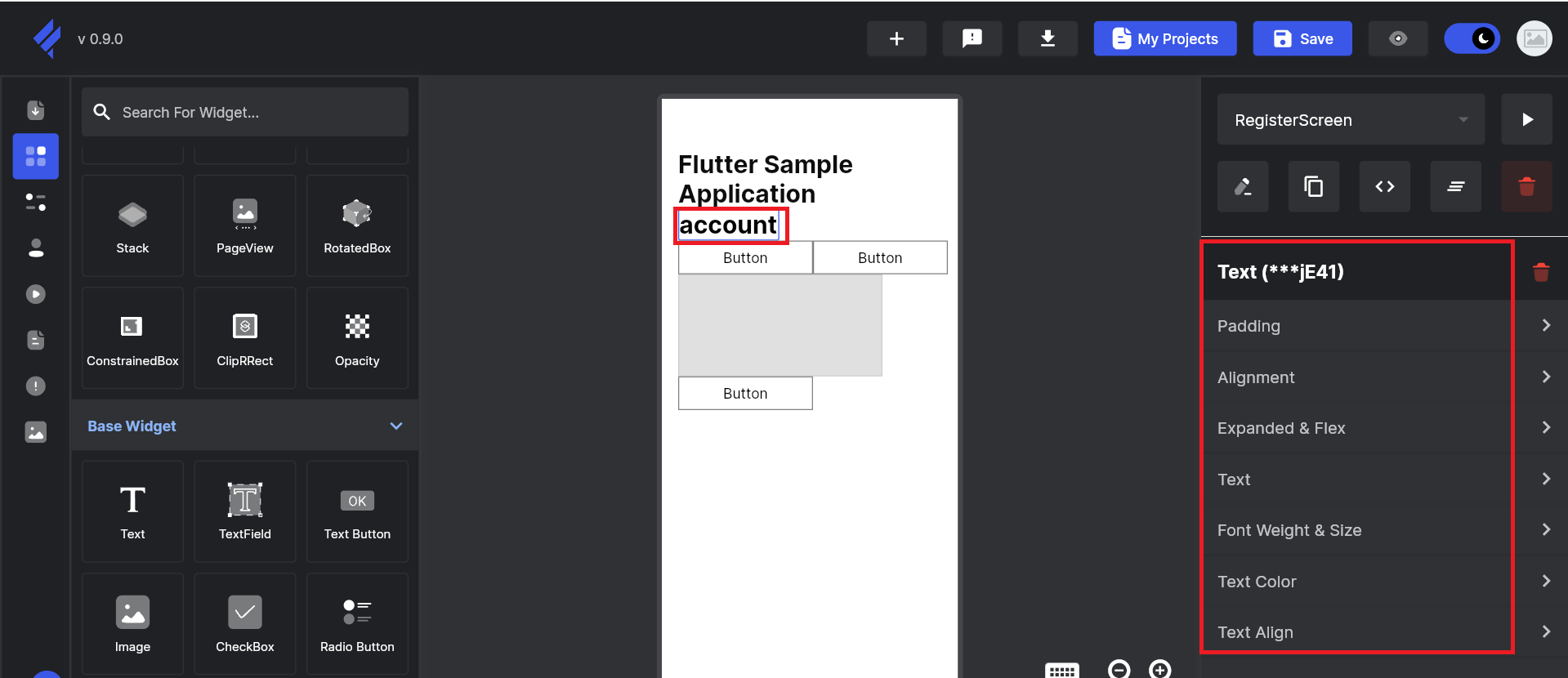

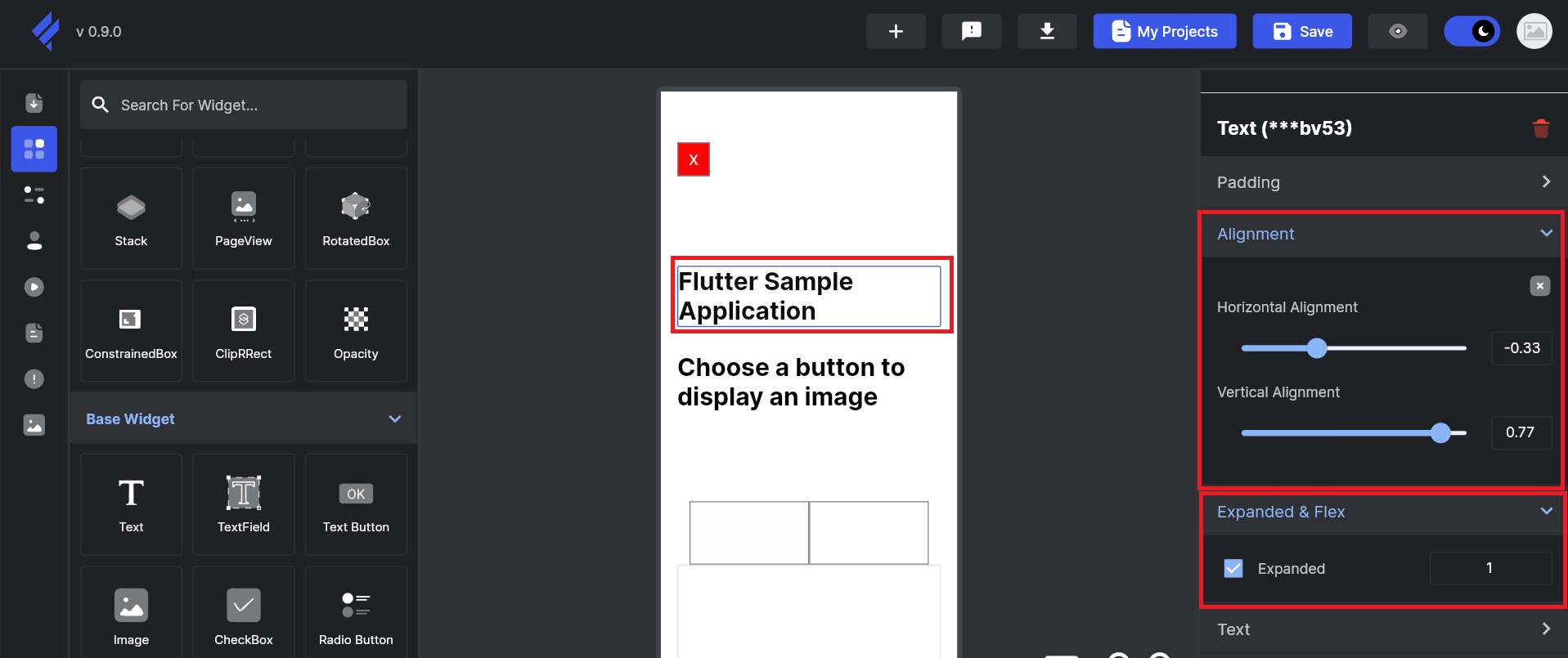

   • Title Text
     The first Text widget.
     Change the Text content to "Flutter Sample Application".

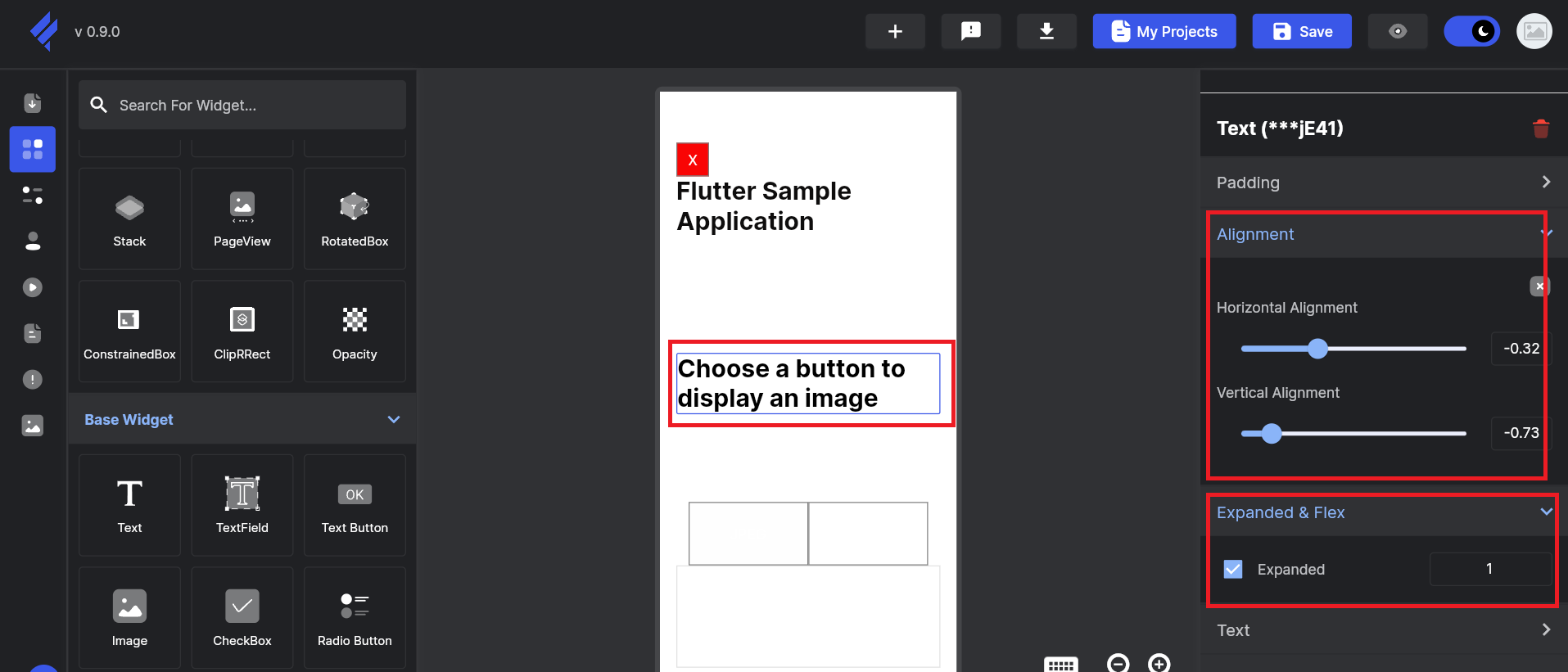

   • Subtitle Text
     The second Text widget.
     Change the Text content to "Select the button below to view images in different formats.".

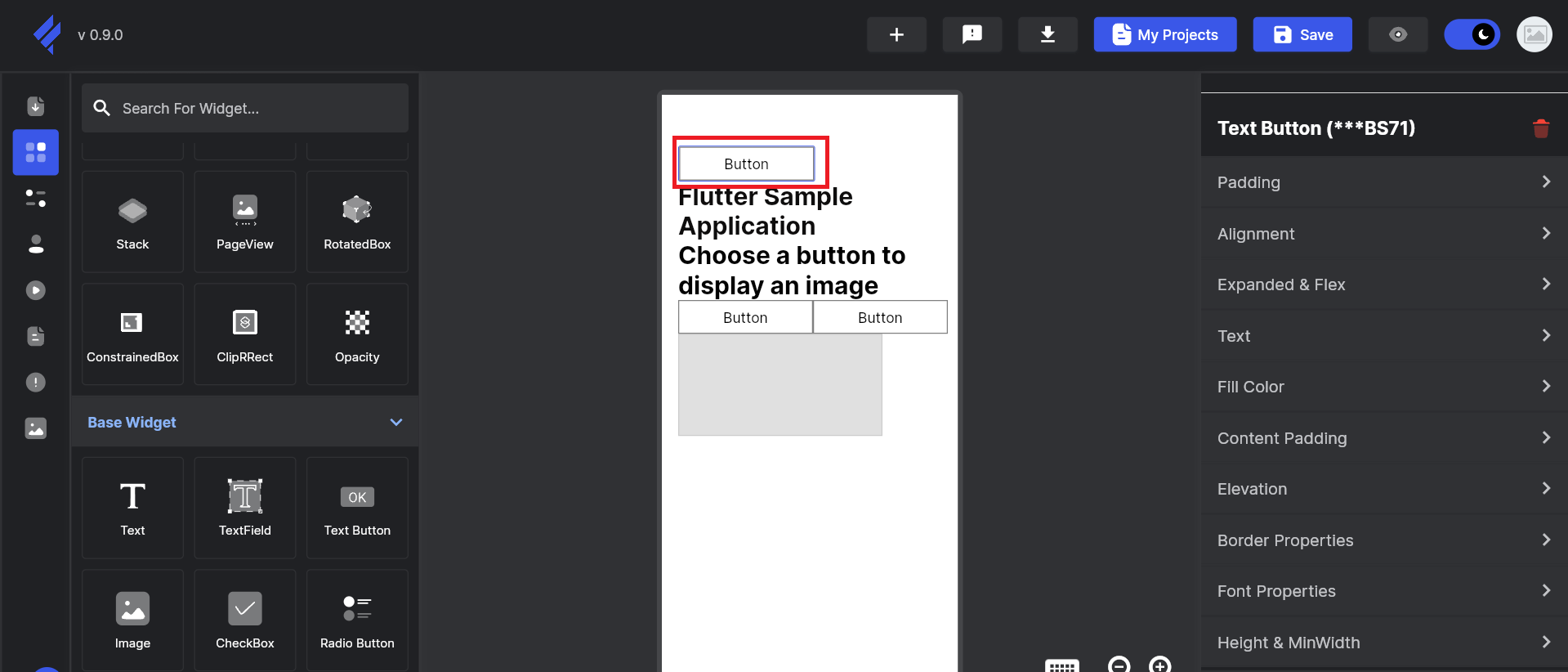

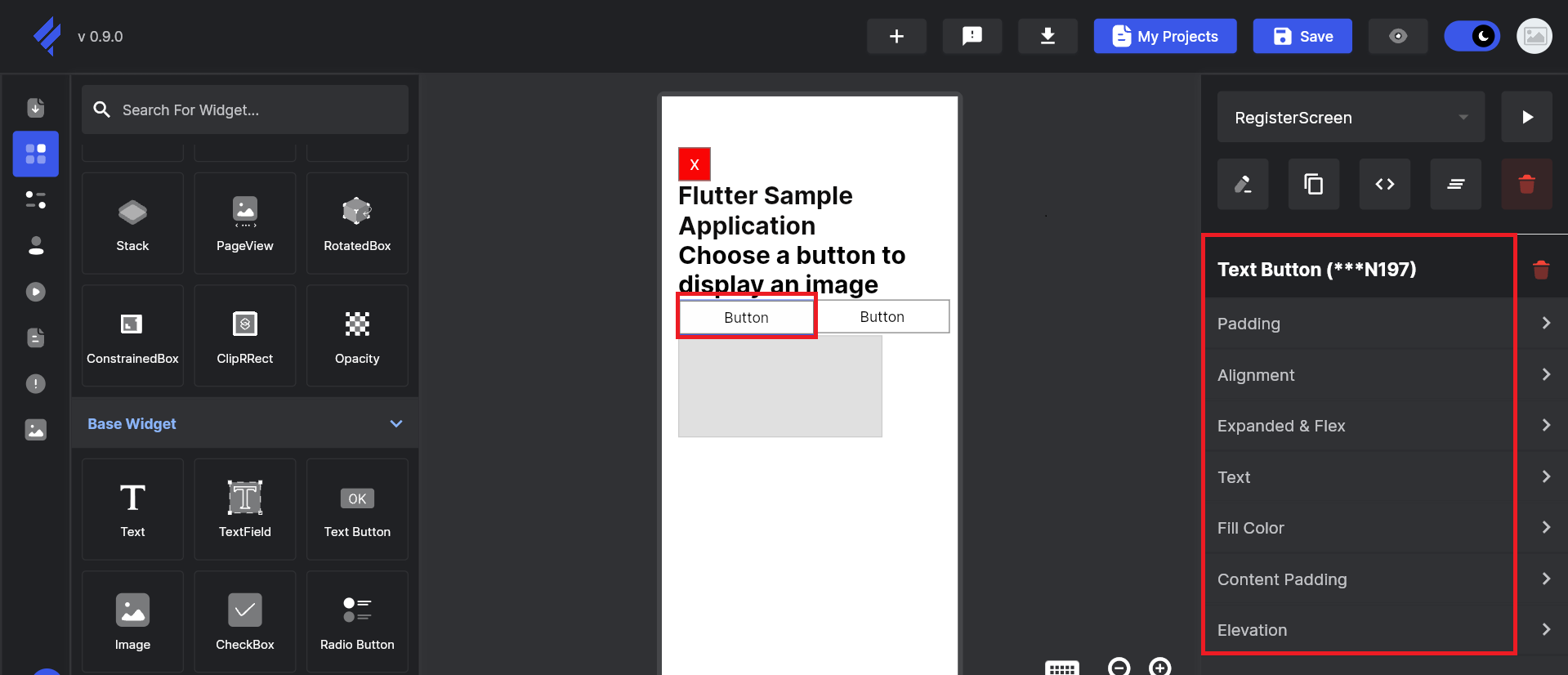

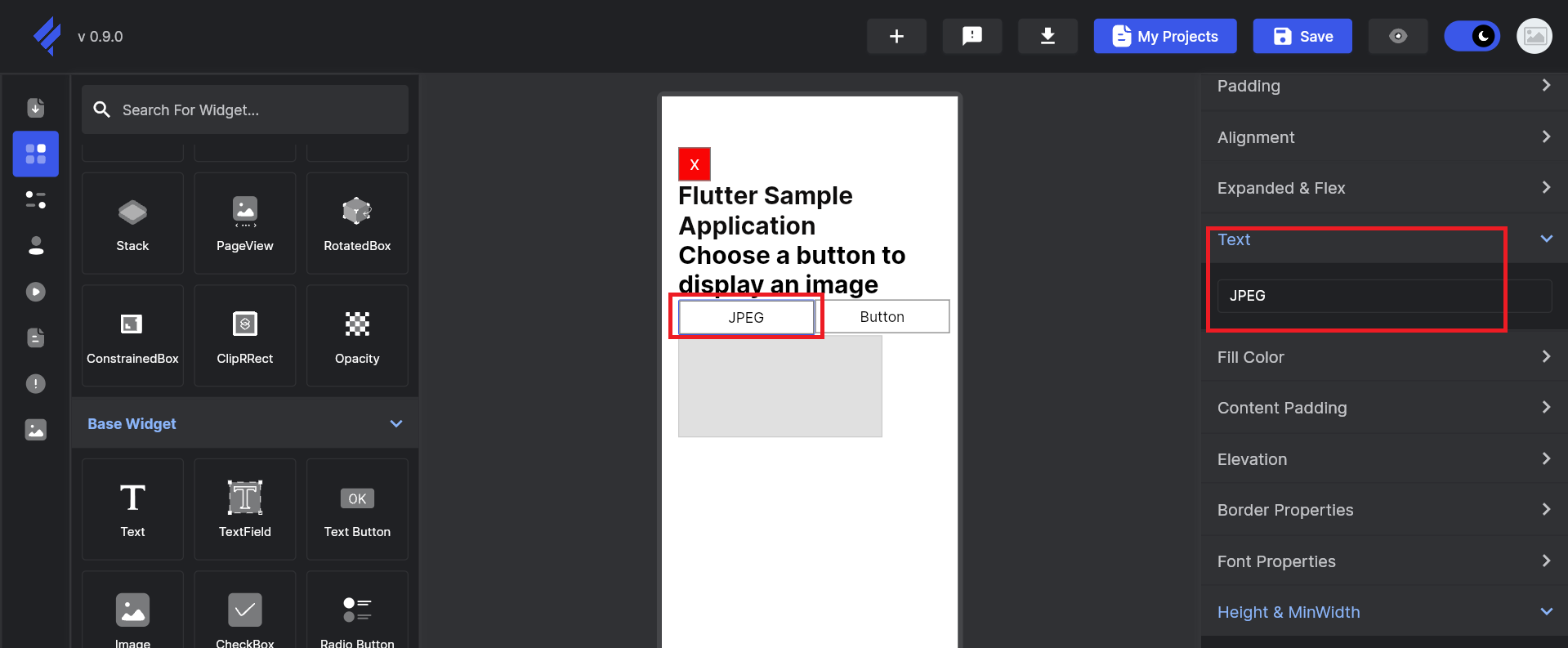

   • "JPG" Text Button
     The first Text Button wrapped inside the Column.
     Change the Text content to "JPG".

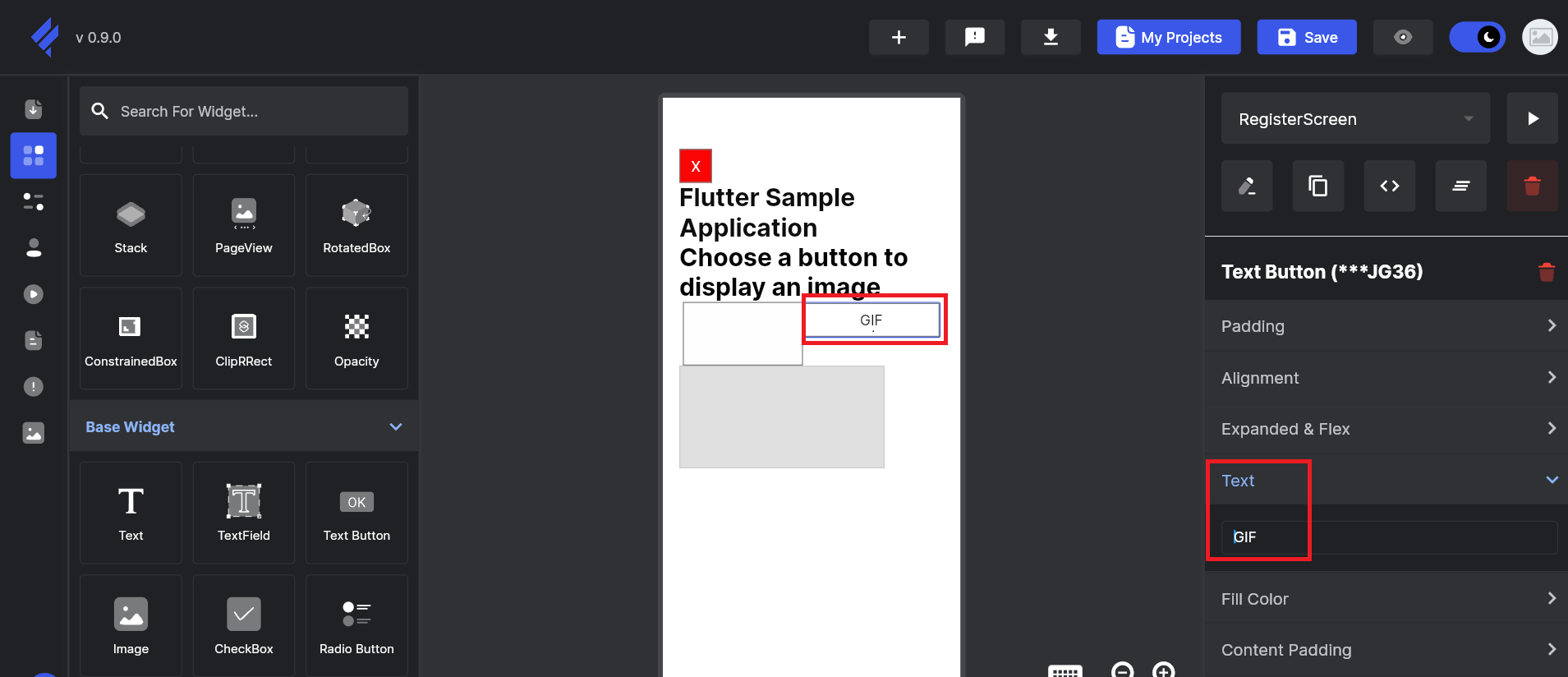

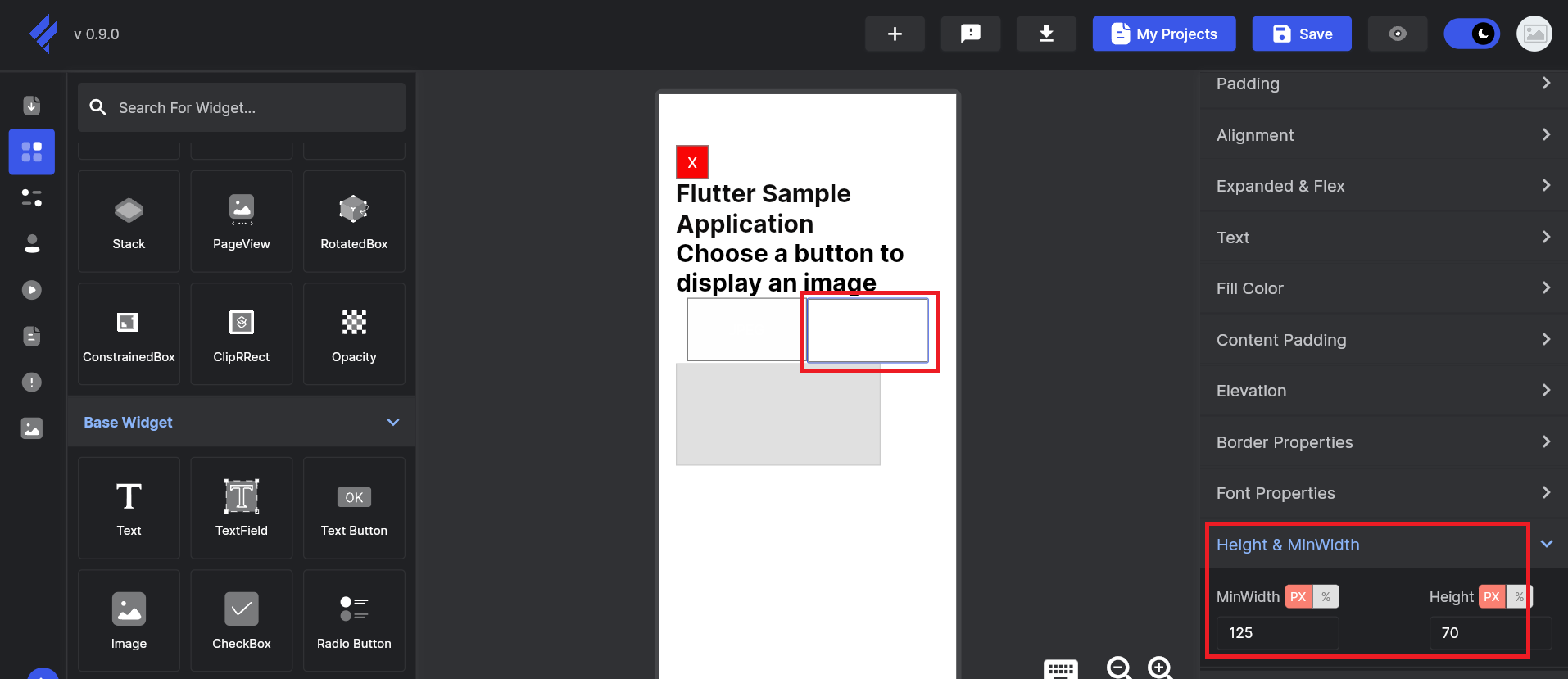

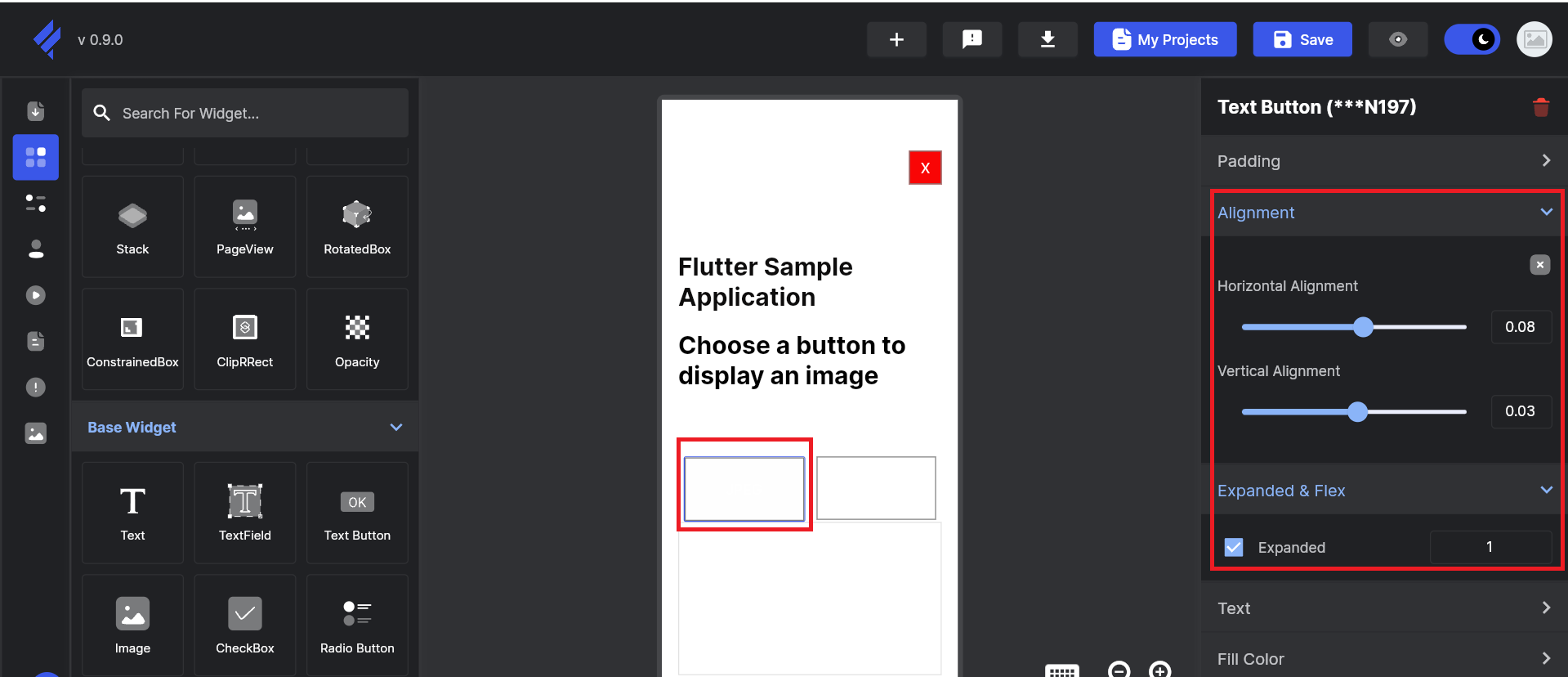

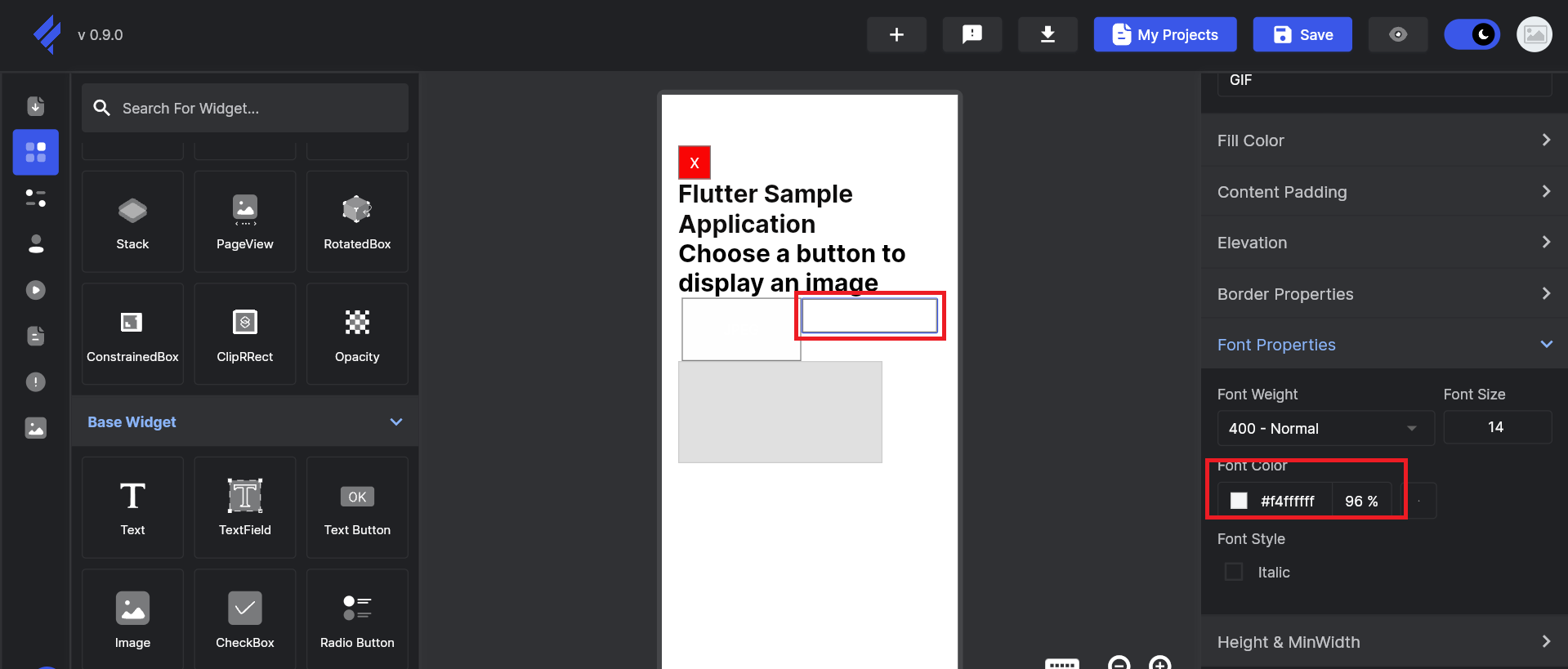

   • "GIF" Text Button
     The second Text Button wrapped inside the Column.
     Change the Text content to "GIF".Set the button font style to match the first Text Button.


   After completing all the modifications, your SelectScreen will look like this:


JPGScreen¶

1. Create a new screen and choose a template to use.

   Click + New Screen in the top-right corner to create a new screen.


   Enter a name for your project, as "JPGScreen".
   Then, go to the Detail section and choose DetailScreen#2 as the template to use.


2. Delete widgets.

   After you successfully create SelectScreen, the screen will appear as shown below.


   In the left-side panel, select the third option, Tree View. You will see the widgets listed as shown below.


   Right-click a widget to display the available options, as shown below (left).

   Use these options to delete widgets as needed. For this example:
   - Delete all other widgets and keep only the ones highlighted in the red box (right).


   After deleting the widgets, your JPGScreen will look like this:


3. Modify the properties of each widget.

   Modify the widgets starting from the top of the Tree View.

   Click each widget to display its properties in the right-side panel.
   Only change the settings shown below, and keep all other properties at their default values.

   • Stack
     Change the alignment to "Center".


   • Column
     Change the following settings.

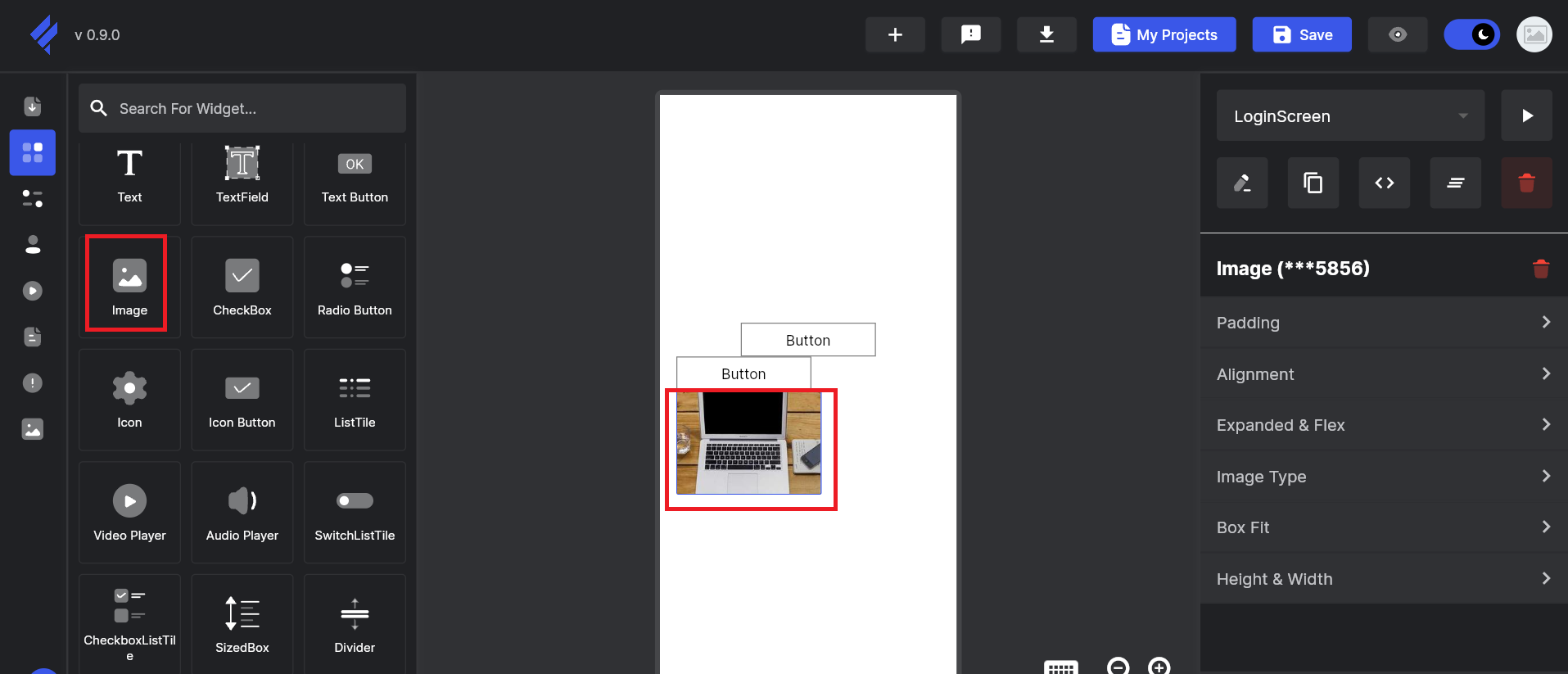

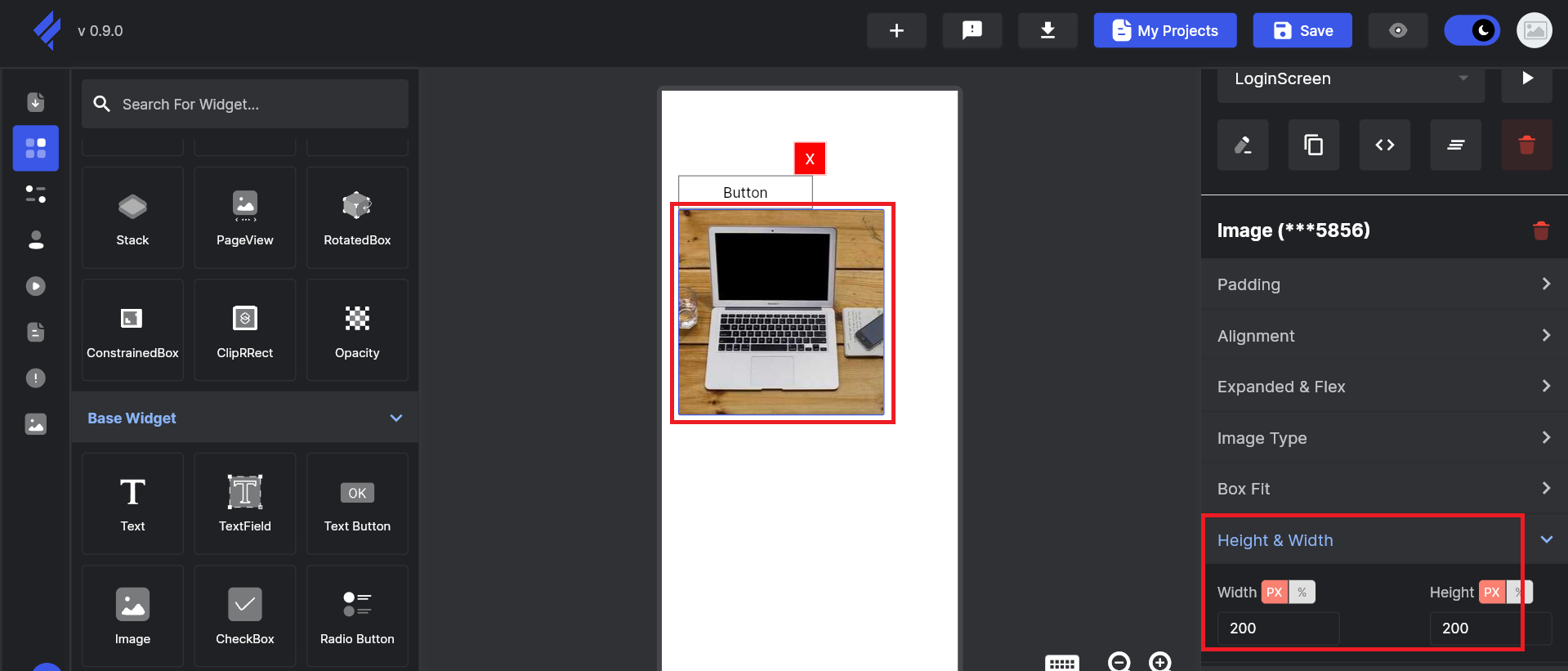

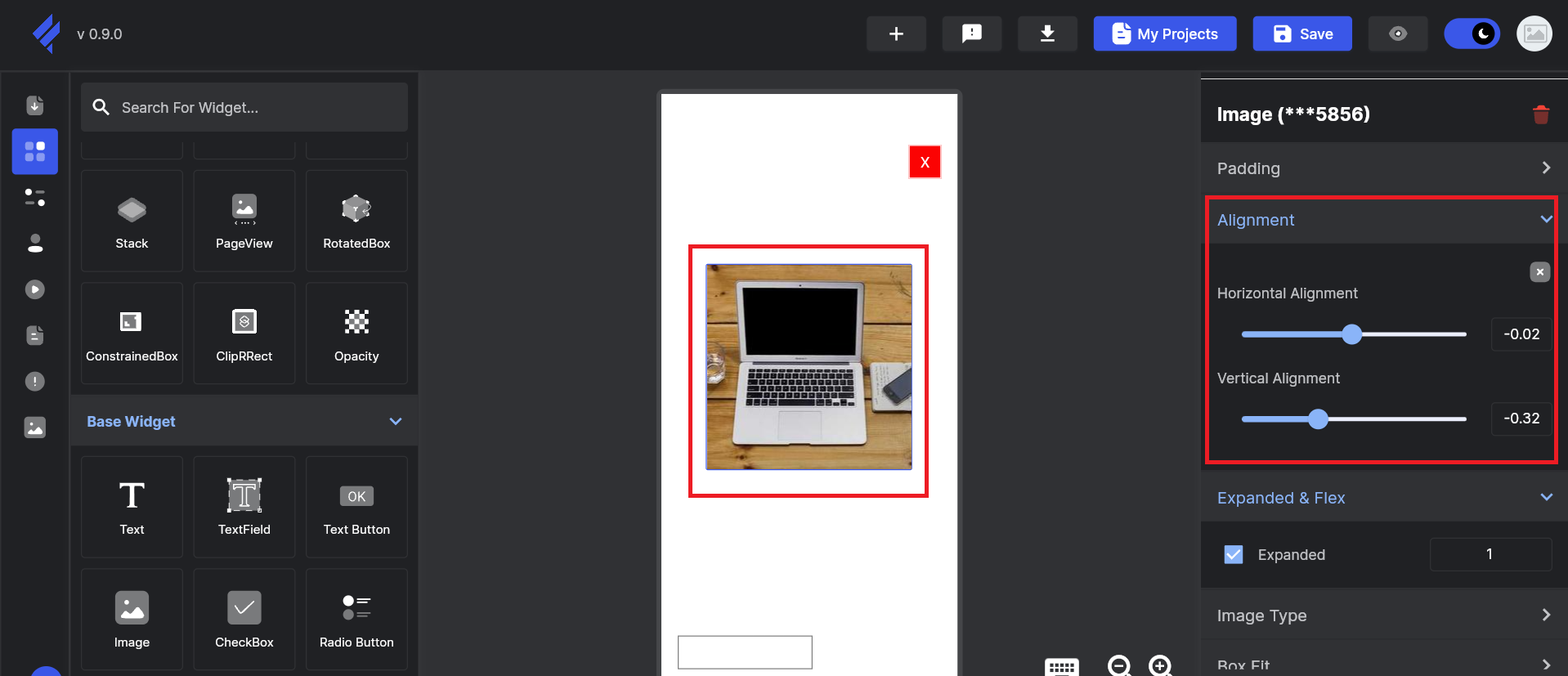

   • Image
     Change the following settings.


   • Row
     Change the following settings.


   • "JPG" Text

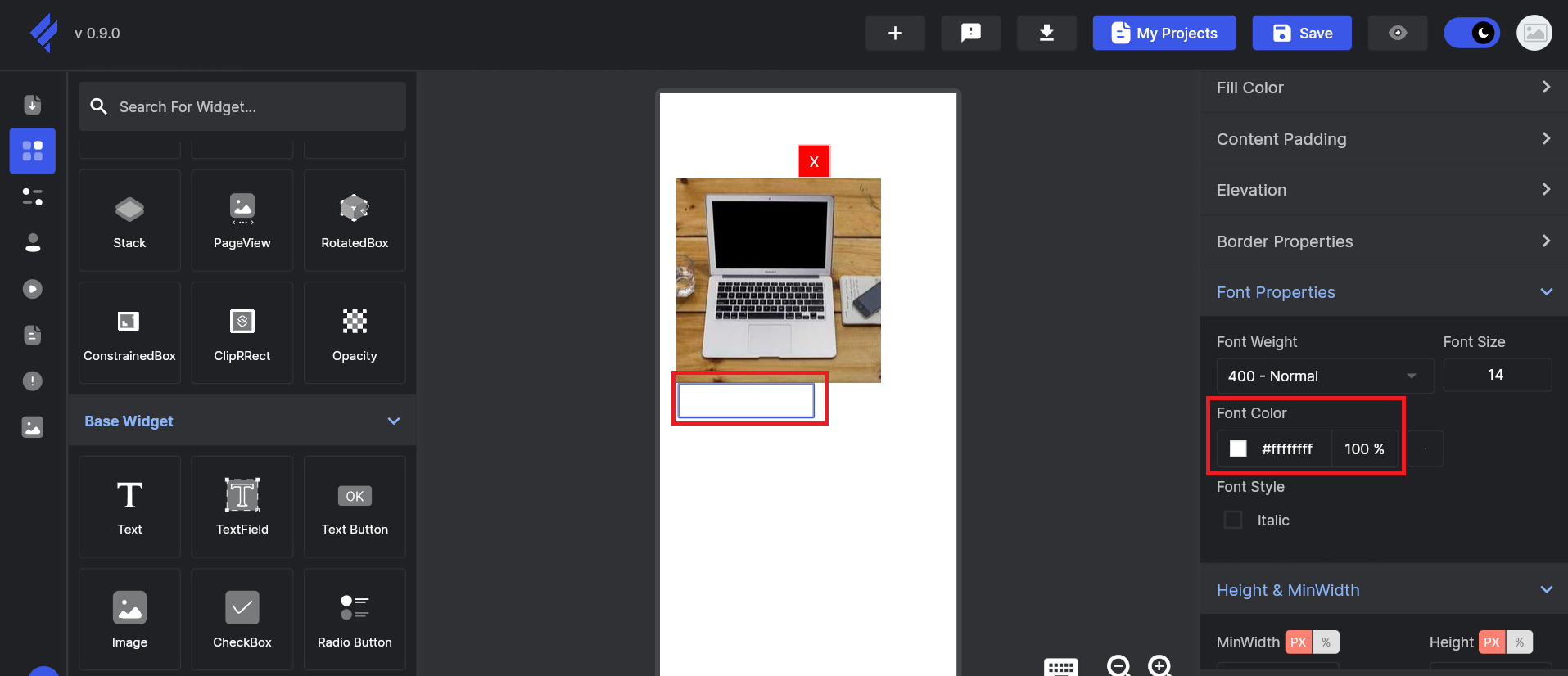

     Change the following settings.

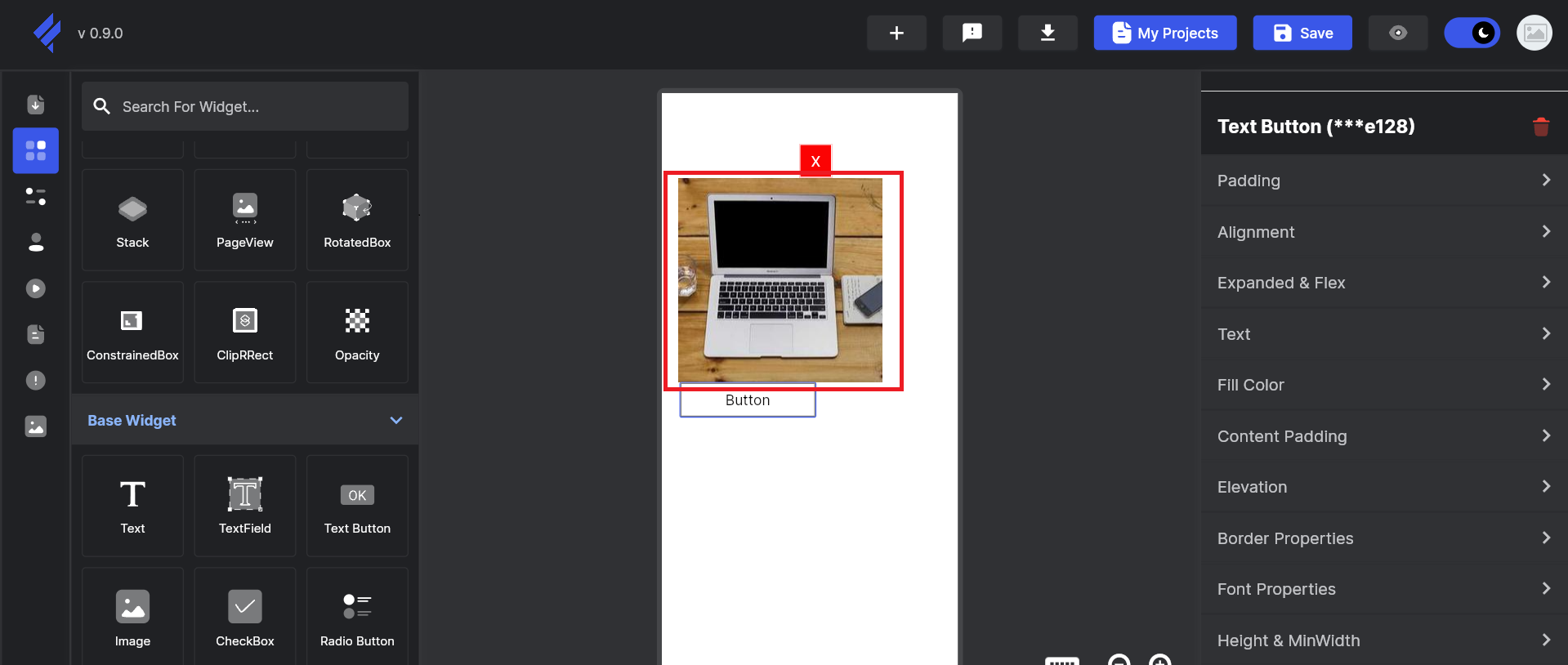

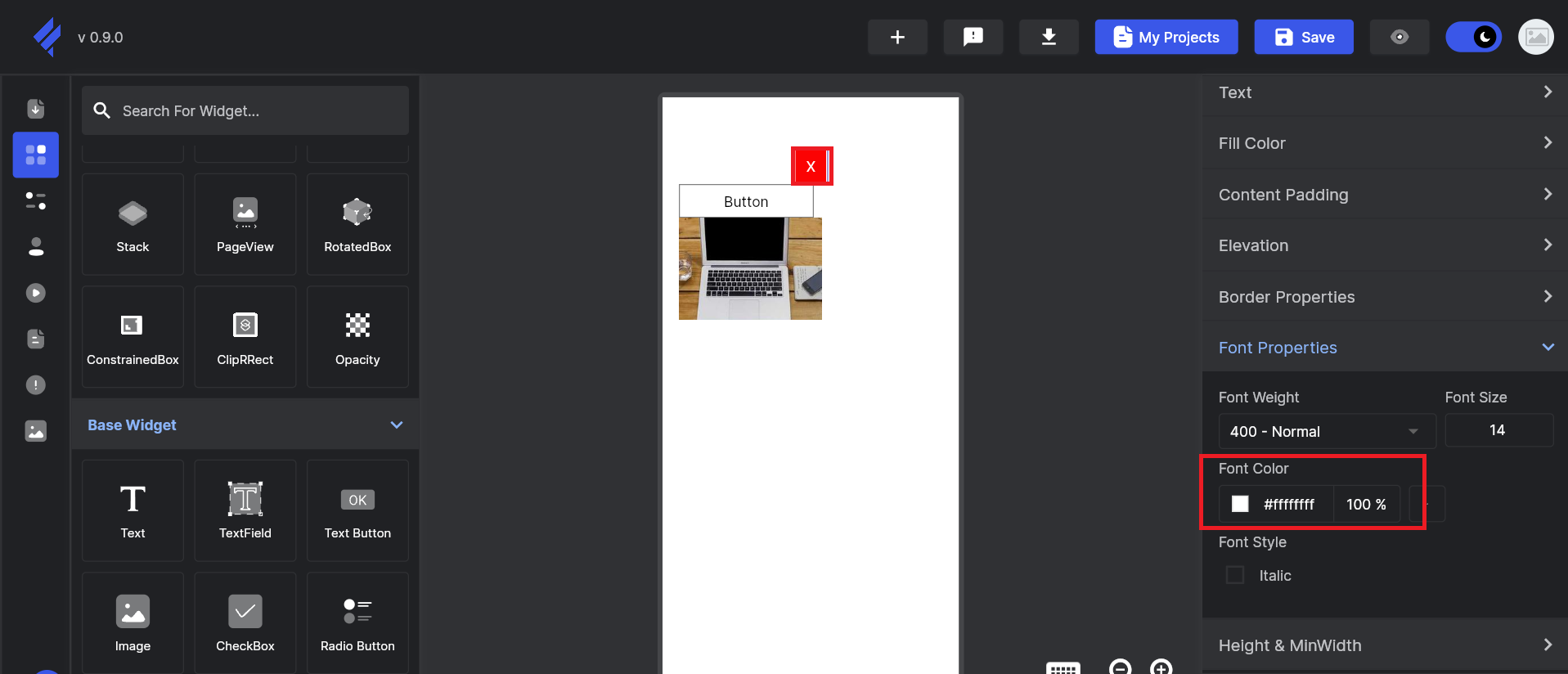

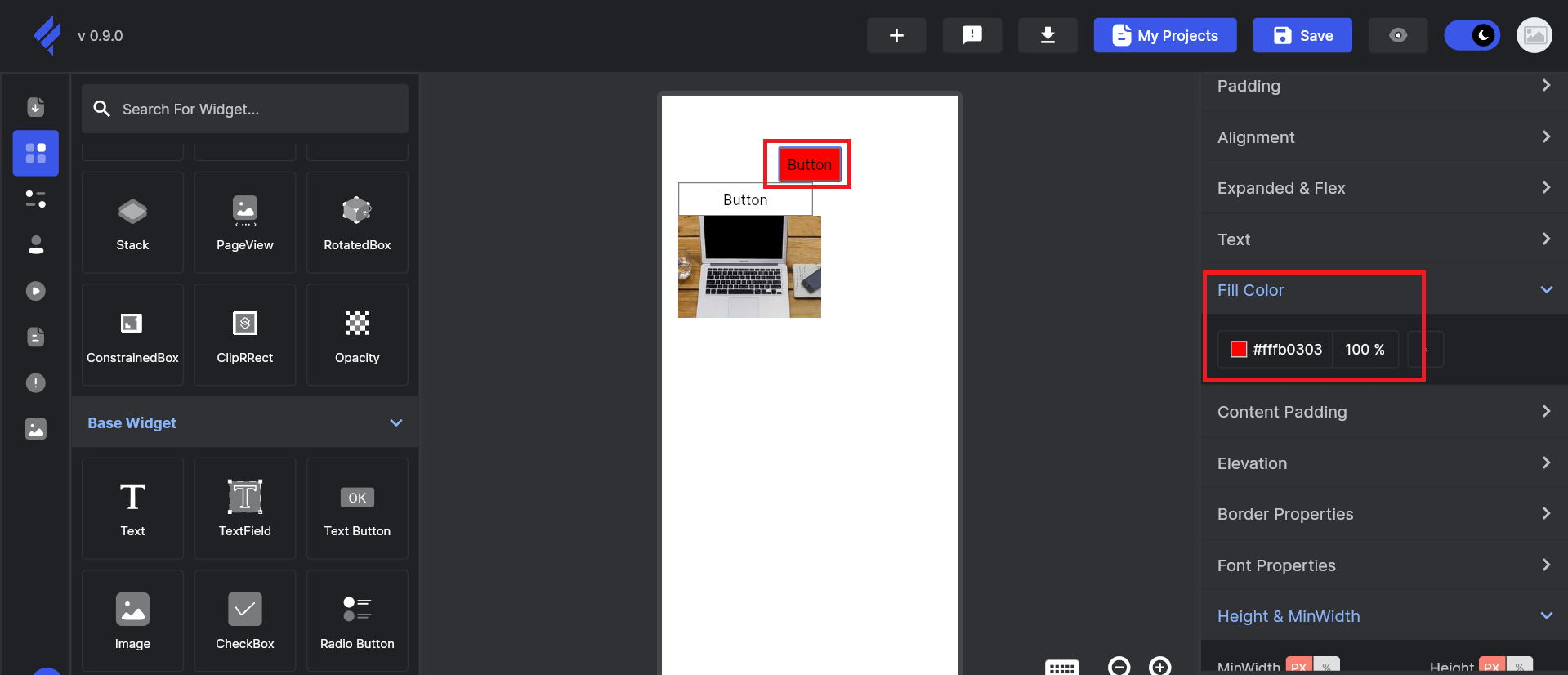

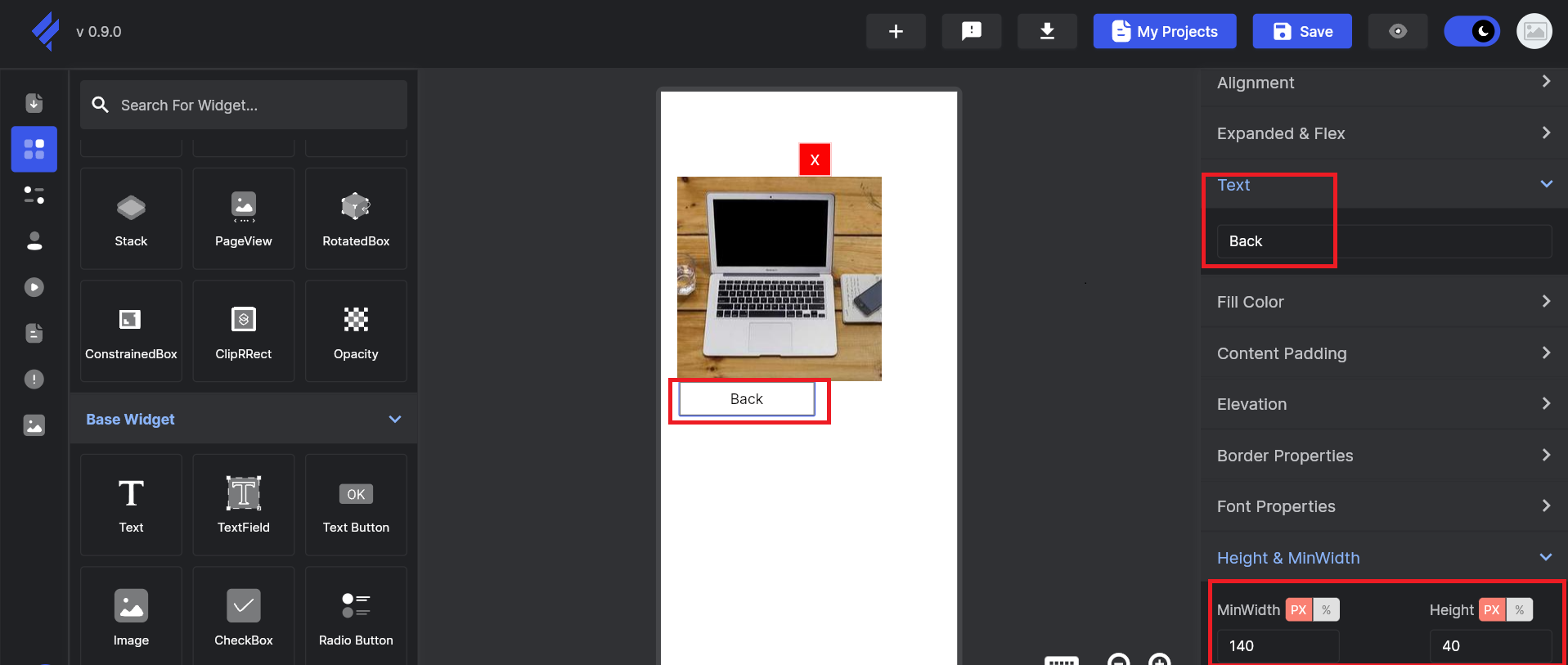

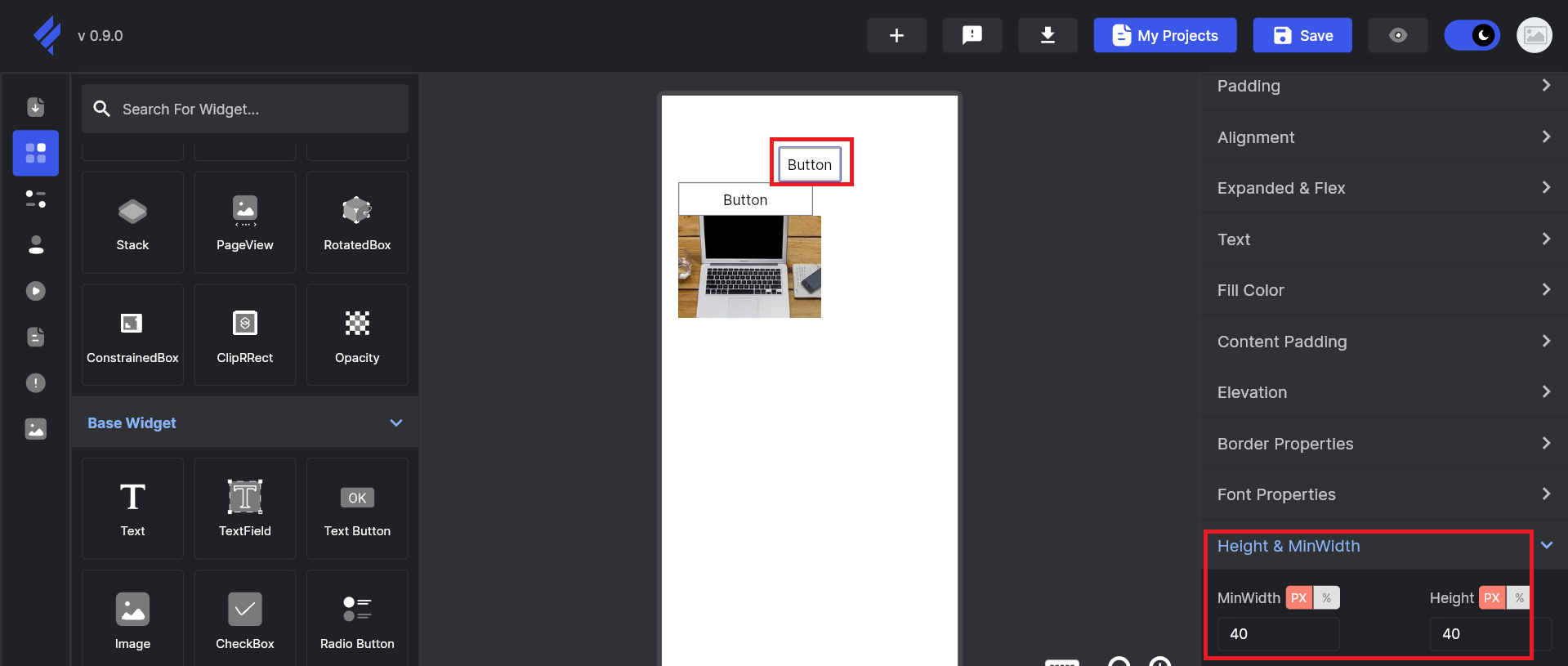

   • "Back to Home" Text Button
     Change the Text content to "Back to Home".

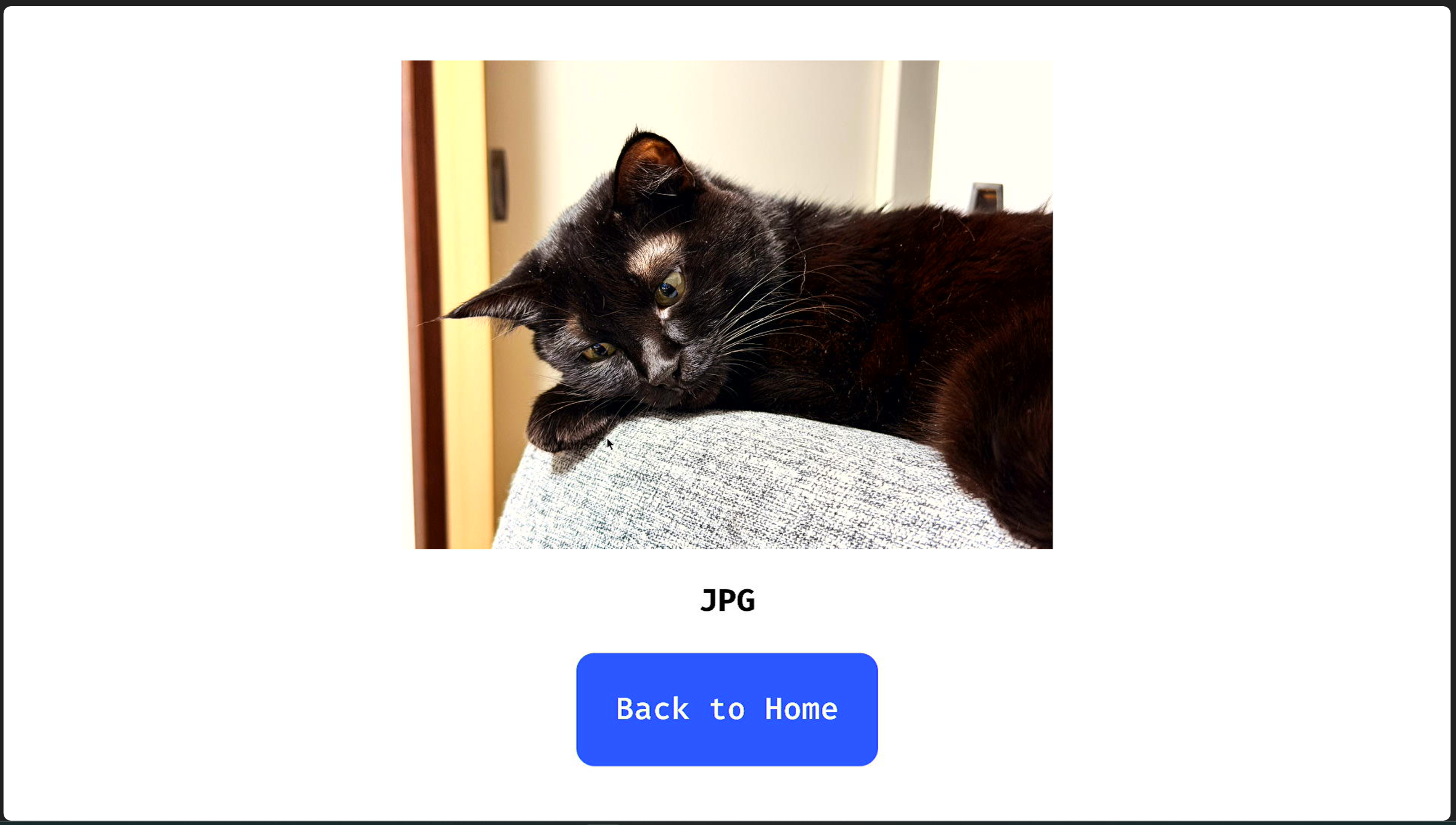

   After completing all the modifications, your JPGScreen will look like this:


GIFScreen¶

For the GIFScreen, repeat the exact same process used for the JPGScreen or copy the screen from FlutterViz, but replace "JPG" with "GIF" wherever applicable.

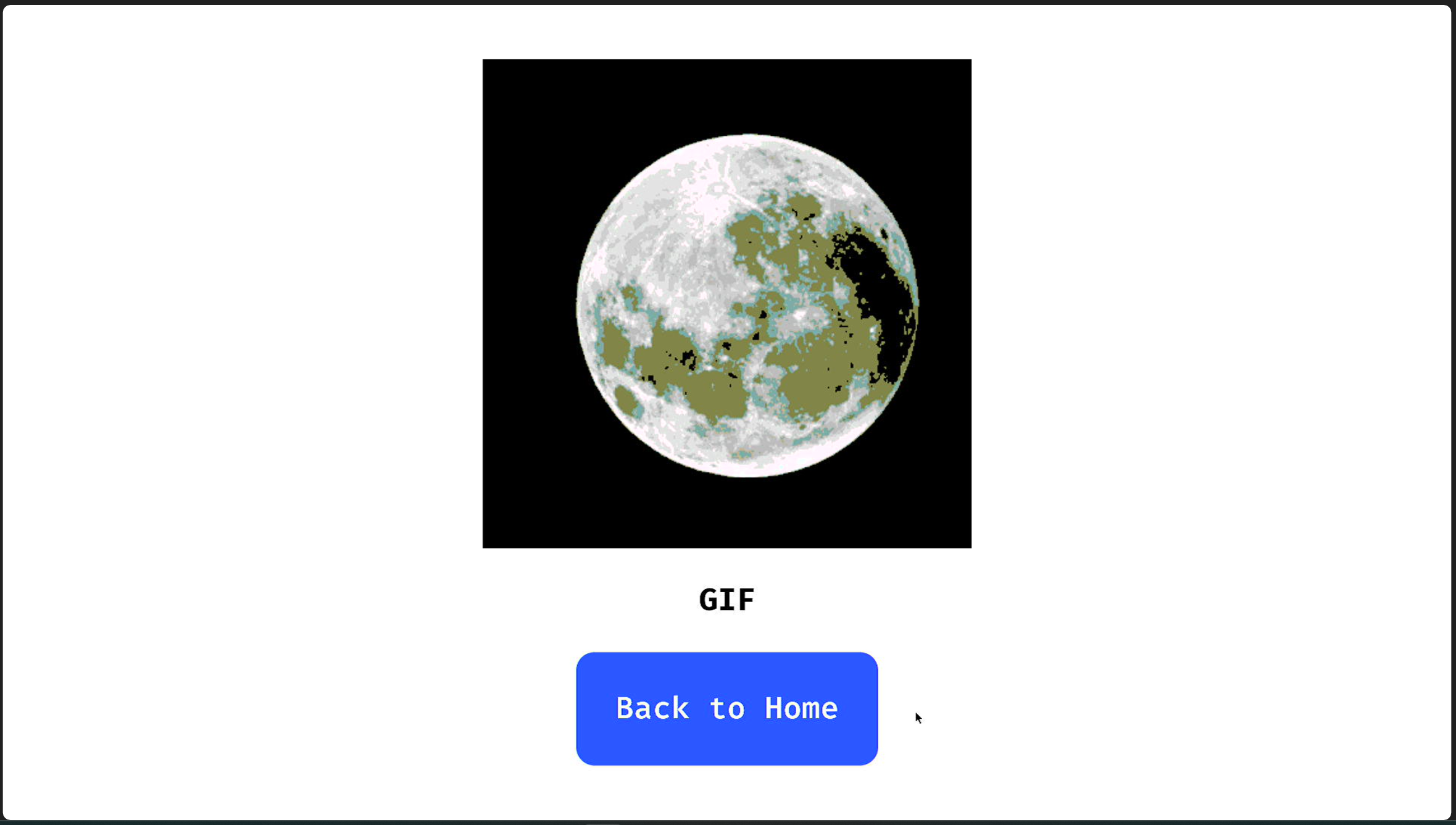

After completing all the modifications, your JGIFScreen will look like this:

1-4. Export the source files¶

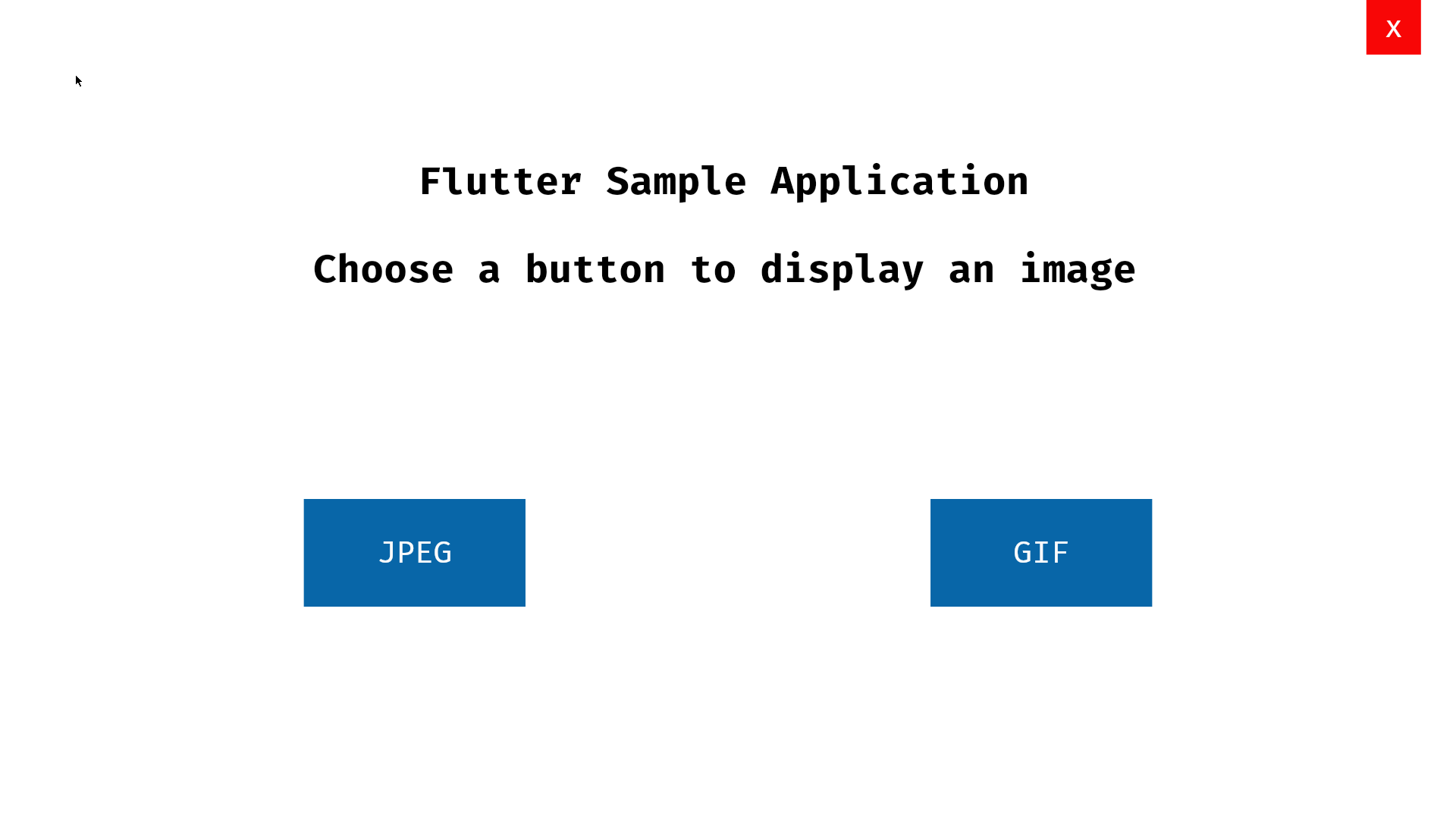

Image File Selection Screen¶

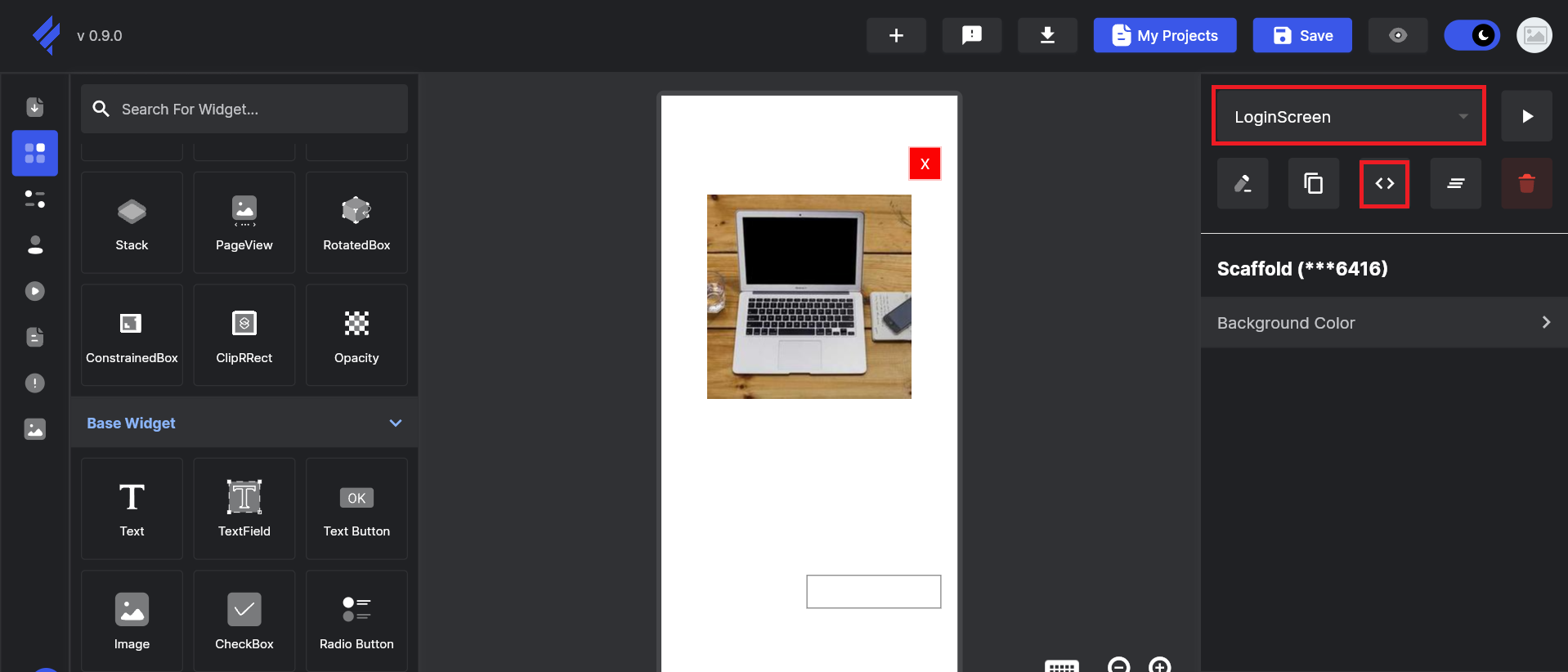

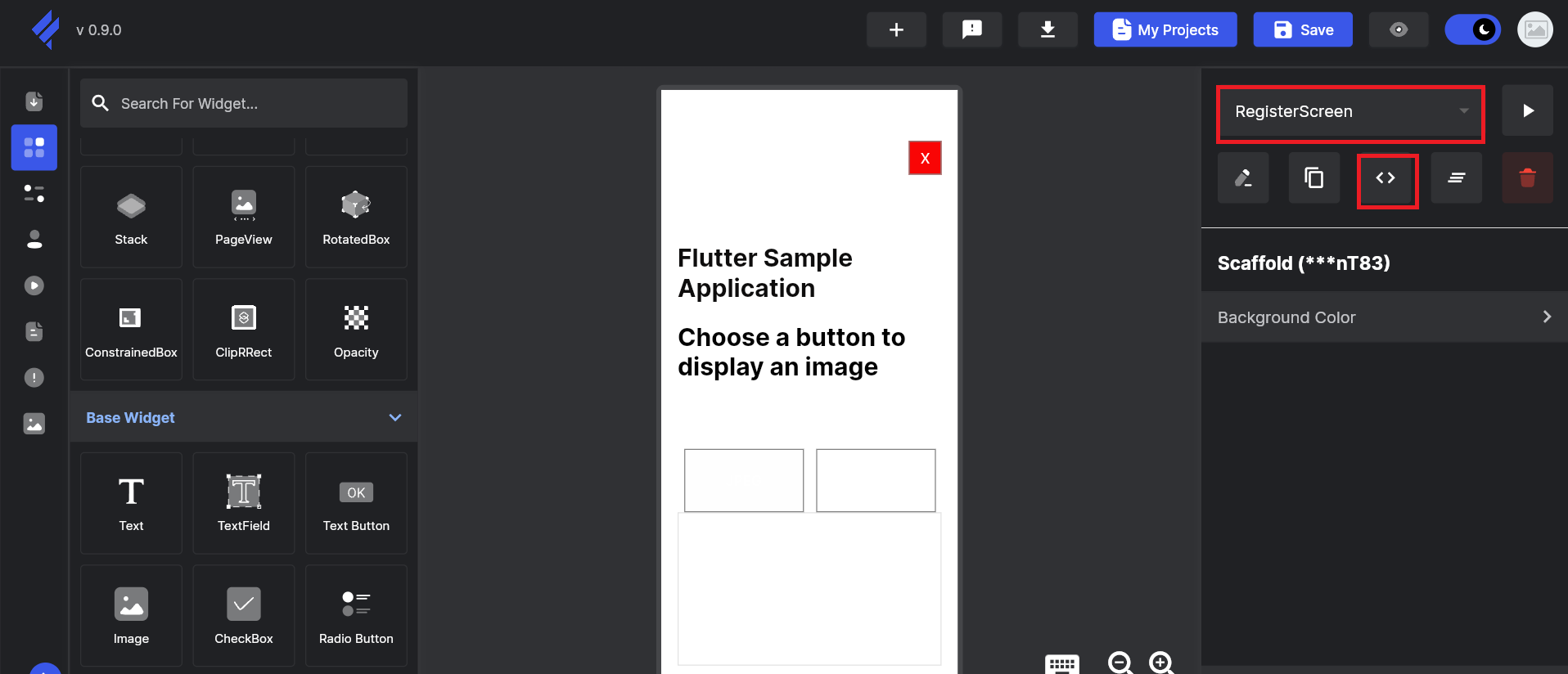

Select each screen using the button on the right, then click the to view the source code.

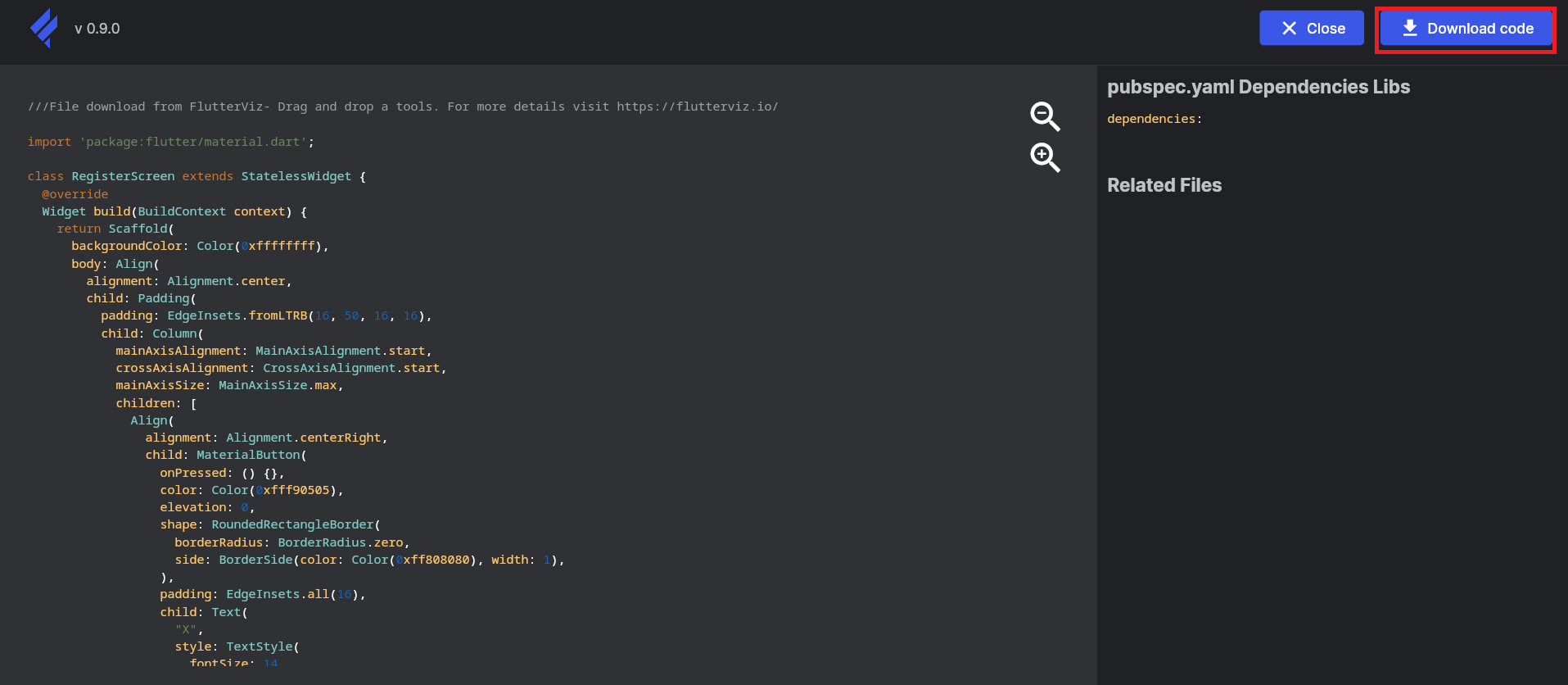

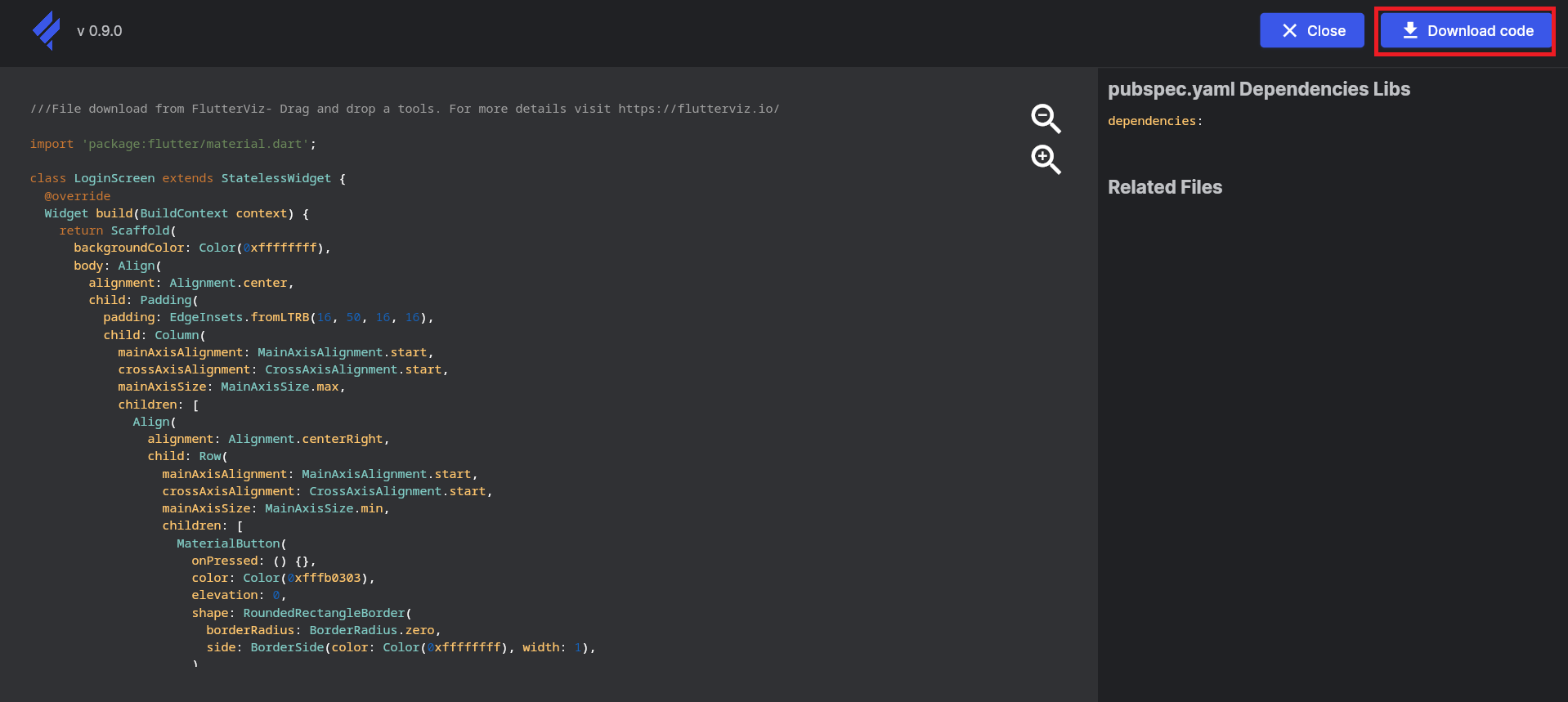

Click the Download code button to download the source file for each Screen. The files will be saved as SelectScreen.dart, JPGScreen.dart, and GIFScreen.dart, respectively.

Step 2: Prepare the Flutter Sample Application Package¶

2-1. Configure the Flutter development environment¶

1. Enable the cross-compilation Environment.

   Before building the Flutter sample application, ensure that the cross-compilation toolchain and cross compiler are enabled.

   Tip

   Refer to the first 2 steps in Step 1: Build Sample Applications.

2. Verify the installation of Flutter.

   $OECORE_NATIVE_SYSROOT/usr/share/flutter/sdk/bin/flutter doctor


   Tip

   • $OECORE_NATIVE_SYSROOT is an environment variable exported by the toolchain setup script.
   • If you encounter a “Permission denied” error, fix the file ownership of the SDK installation directory (from step 1) by updating it recursively:

   sudo chown -R <user>:<user> <path-to-sdk>


   If the setup is correct, you should see output similar to the following, with the first two items checked:

   [v] Flutter (Channel stable, 3.27.1, on Ubuntu 22.04.5 LTS 6.8.0-50-generic, locale en_US.UTF-8)
   [v] Linux toolchain - develop for Linux desktop
   [-] VS Code (version 1.96.2)
   [-] Connected device (1 available)
   [-] Network resources


   This confirms that Flutter and the Linux toolchain are properly installed.

3. Disable analytics and CLI animations (recommended).

   To disable analytics reporting:

   $OECORE_NATIVE_SYSROOT/usr/share/flutter/sdk/bin/flutter config --no-analytics


   You should see:

   Analytics reporting disabled.


   To disable CLI animations:

   $OECORE_NATIVE_SYSROOT/usr/share/flutter/sdk/bin/flutter config --no-cli-animations


   Expected output:

   Setting "cli-animations" value to "false".


2-2. Create a new Flutter application¶

To create the new flutter sample application package:

flutter create fluttersampleapp

Resulting structure:

fluttersampleapp/
├─ android/
├─ ios/
├─ linux/
├─ macos/
├─ windows/
├─ web/
├─ lib/
│  └─ main.dart
├─ test/
├─ pubspec.yaml
├─ pubspec.lock
├─ analysis_options.yaml
└─ README.md

main.dart and pubspec.yaml are created by default.

Step 3: Update the Flutter Sample Application Package¶

3-1. Apply the display image to sample application¶

1. Create a new images directory inside fluttersampleapp:

   cd <path-to>/fluttersampleapp


   mkdir images


2. Download and copy the display image to the images directory you created.

   Click here to download Display_Image_File.zip, and extract it.

   Use scp to copy Cat.jpg and Moon.gif from the Display_Image_File folder into <path-to>/fluttersampleapp/images.

3-2. Apply the font to the sample application¶

1. Create a new fonts directory inside fluttersampleapp:

   mkdir fonts


2. Download and copy the font files to the fonts directory you created.

   Download FiraCode font by clicking Download & Install in README.

   Extract the downloaded Fira_Code_v6.2.zip.

   Use scp to copy the following files from the ttf folder in Fira_Code_v6.2 into <path-to>/fluttersampleapp/fonts:

   FiraCode-Bold.ttf
   FiraCode-Light.ttf
   FiraCode-Medium.ttf
   FiraCode-Regular.ttf
   FiraCode-SemiBold.ttf


3-3. Modify the pubspec.yaml File¶

The pubspec.yaml file is the main configuration file of a Flutter project. It defines the application name, version, dependencies (packages), and asset settings such as images and fonts.

Here, modify the dependencies, assets, and fonts sections of the pubspec.yaml file.
Click here to download the modified pubspec.yaml file, and update your existing file accordingly.

3-4. Apply the downloaded screen source files to the sample application¶

1. Modify the main.dart File

   main.dart is the entry point of a Flutter application.

   We keep main.dart simple so it only initializes the app and loads the first screen. All UI design and application logic should be placed in separate screen Dart files.

   Click here to download the modified main.dart file, and update your existing file accordingly.

2. Update the UI design anfd the navigation logic in the screen dart files.

   Use scp to copy the screen source files created in Step 1 into <path-to>/fluttersampleapp/lib/.

   There are two main parts that need to be modified:

   • Navigation Logic

   Navigator.push() to go to JPG and GIF screen
   Navigator.pop() to return
   SystemNavigator.pop() to exit application

   • Wide Screen UI Adjustment

   Increased font size to 40
   Increased button size to 400 × 150
   Centralized all sizes in a new style.dart

   Click here to download the modified screen dart files, and update your existing file accordingly.

Step 4: Build the Flutter Sample Application¶

1. Upgrade and resolve Flutter packages.

   $OECORE_NATIVE_SYSROOT/usr/share/flutter/sdk/bin/flutter pub upgrade


   The process completes when messages similar to the following appear:

   Changed 47 dependencies!
   27 packages have newer versions incompatible with dependency constraints.


   Next, enforce the dependency versions defined in the lockfile:

   $OECORE_NATIVE_SYSROOT/usr/share/flutter/sdk/bin/flutter pub get --enforce-lockfile --offline


   Expected output:

   Resolving dependencies...
   Downloading packages...
   Got dependencies!


2. Clean the Flutter build environment.

   $OECORE_NATIVE_SYSROOT/usr/share/flutter/sdk/bin/flutter clean -v


   When completed successfully, you should see:

   [   +1 ms] Running 1 shutdown hook
   [        ] Shutdown hooks complete
   [        ] exiting with code 0


3. Build the Flutter assets (fonts, images, and other bundles).

   $OECORE_NATIVE_SYSROOT/usr/share/flutter/sdk/bin/flutter build bundle -v


   A successful build will show messages similar to:

   [ +637 ms] copy_flutter_bundle: Complete
   [ +384 ms] Persisting file store
   [ +3 ms] Done persisting file store
   [ +10 ms] "flutter bundle" took 5,897ms.
   [ +1 ms] Running 1 shutdown hook
   [ ] Shutdown hooks complete
   [ ] exiting with code 0


4. Build the Flutter sample application (AOT).

   Use the command below to locate your build hash<Hash>:

   cd <path-to>/fluttersampleapp


   ls .dart_tool/flutter_build/


   You will see result similar to:


   bab3a9eb030968554b57b1276c135ddb


   Run the following command to build the Flutter sample application:

   Tip

   Replace bab3a9eb030968554b57b1276c135ddb with your own build hash.

   $OECORE_NATIVE_SYSROOT/usr/share/flutter/sdk/bin/cache/dart-sdk/bin/dartaotruntime \
   --disable-analytics \
   --disable-dart-dev \
   $OECORE_NATIVE_SYSROOT/usr/share/flutter/sdk/bin/cache/artifacts/engine/linux-x64/frontend_server_aot.dart.snapshot \
   --sdk-root $OECORE_NATIVE_SYSROOT/usr/share/flutter/sdk/bin/cache/artifacts/engine/common/flutter_patched_sdk_product/ \
   --target=flutter \
   -Ddart.vm.profile=false \
   -Ddart.vm.product=true \
   --aot \
   --tfa \
   --target-os linux \
   --packages .dart_tool/package_config.json \
   --output-dill .dart_tool/flutter_build/bab3a9eb030968554b57b1276c135ddb/app.dill \
   --depfile .dart_tool/flutter_build/bab3a9eb030968554b57b1276c135ddb/kernel_snapshot_program.d \
   --source file://$PWD/.dart_tool/flutter_build/dart_plugin_registrant.dart \
   --source package:flutter/src/dart_plugin_registrant.dart \
   -Dflutter.dart_plugin_registrant=file://$PWD/.dart_tool/flutter_build/dart_plugin_registrant.dart \
   --native-assets .dart_tool/flutter_build/bab3a9eb030968554b57b1276c135ddb/native_assets.yaml \
   --verbosity=error \
   package:fluttersampleapp/main.dart


   Once the build completes successfully, the Flutter build configuration is applied, and the following file is generated:

   .dart_tool/flutter_build/bab3a9eb030968554b57b1276c135ddb/app.dill 0


5. Update kernel nlob timestamp.

   touch build/flutter_assets/kernel_blob.bin


6. Generate AOT shared library (libapp.so).

   Download engine_sdk.tar.bz2 from the Renesas Wiki-Flutter-Deliverables.
   Decompress engine_sdk.tar.bz2, then unzip engine_sdk_release.zip inside it. This will generate the sdk directory.

   Use gen_snapshot from extracted sdk to generate the AOT shared library:

   Tip

   • Replace <path-to> with your local download path.
   • Replace bab3a9eb030968554b57b1276c135ddb with your own build hash.

   <path-to>/sdk/clang_x64/gen_snapshot \
   --deterministic \
   --snapshot_kind=app-aot-elf \
   --elf=libapp.so \
   --strip \
   .dart_tool/flutter_build/bab3a9eb030968554b57b1276c135ddb/app.dill


   You will see messages similar to:

   Warning: Generating ELF library without DWARF debugging information.


7. Verify the output architecture.

   Confirm that the generated library targets ARM (aarch64):

   file libapp.so


   Expected output:

   libapp.so: ELF 64-bit LSB shared object, ARM aarch64,version 1 (SYSV), dynamically linked,stripped


   Notice

   If the output does not indicate ARM aarch64 (for example, it shows x86_64), stop here.
   This means the cross-compilation environment is not correctly applied.

   Tip

   To recover:

   • Reconfirm that the cross-compilation toolchain is enabled.
   • Verify that the environment is correctly set up and sourced.
   • Clean the Flutter build artifacts and restart from 5. Clean up the build folder of the Flutter project:

   rm -rf .dart_tool/flutter_build
   $OECORE_NATIVE_SYSROOT/usr/share/flutter/sdk/bin/flutter clean -v


   • Resume the Step 4: Build the Flutter Sample Application till 7. Verify the output architecture.

8. Prepare the release directory structure

   Move to the Flutter sample app directory:

   cd <path-to>/fluttersampleapp


   Create the required release directories:

   install -d my_release/usr/share/flutter/flutter-samples-app/3.27.1/release/data/flutter_assets


   install -d my_release/usr/share/flutter/flutter-samples-app/3.27.1/release/lib


9. Copy the flutter sample application files

   Next, copy the Flutter sample application files into the directories you created.

   cd <path-to>/fluttersampleapp


   Copy the Flutter asset files:

   cp -r build/flutter_assets/* my_release/usr/share/flutter/flutter-samples-app/3.27.1/release/data/flutter_assets


   Copy the generated application library:

   cp libapp.so my_release/usr/share/flutter/flutter-samples-app/3.27.1/release/lib


   Create a symbolic link to the ICU data file:

   ln -sfr my_release/usr/share/flutter/3.27.1/release/data/icudtl.dat my_release/usr/share/flutter/flutter-samples-app/3.27.1/release/data/icudtl.dat


   Create a symbolic link to the Flutter engine library:

   ln -sfr my_release/usr/share/flutter/3.27.1/release/lib/libflutter_engine.so my_release/usr/share/flutter/flutter-samples-app/3.27.1/release/lib/libflutter_engine.so


   After completing the setup, the directory structure under fluttersampleapp/my_release/usr/share/flutter/flutter-samples-app/3.27.1/release/ should look like the following:

   .
   ├── data
   │   ├── flutter_assets
   │   │   ├── AssetManifest.bin
   │   │   ├── AssetManifest.json
   │   │   ├── FontManifest.json
   │   │   ├── fonts
   │   │   ├── images
   │   │   ├── isolate_snapshot_data
   │   │   ├── kernel_blob.bin
   │   │   ├── NOTICES.Z
   │   │   ├── packages
   │   │   ├── shaders
   │   │   └── vm_snapshot_data
   │   └── icudtl.dat -> ../../../../3.27.1/release/data/icudtl.dat
   └── lib
       ├── libapp.so
       └── libflutter_engine.so -> ../../../../3.27.1/release/lib/libflutter_engine.so


Step 5. Deploy the Flutter Sample Application¶

1. Insert your SD card into the Linux PC and mount it.

   Notice

   Make sure to turn off your EVK board before ejecting the SD card.

   To power off the board, execute the shutdown -h now command in the terminal. Once the screen turns black, press and hold the power button (red button) for approximately 2 seconds to complete the shutdown process.

2. Copy the executable binary files and resource files to your SD card.

   Tip

   • On your Linux PC, the Flutter sample applications are now located at:
     <path-to>/fluttersampleapp/my_release/usr/share/flutter/flutter-samples-app/
   • We recommend deploying the application to the following directory on your EVK board:
     /usr/share/flutter/my-flutter-samples-app/
   • Follow the instructions in Step 4 in Option 2 to check where your SD card is mounted using the lsblk command.

   Copy the Flutter sample application files:

   cd <path-to>/fluttersampleapp


   sudo cp -r my_release/usr/share/flutter/flutter-samples-app/3.27.1 <sdcard-mount-point>/usr/share/flutter/my-flutter-samples-app/


   Notice

   • Please make sure the /usr/share/flutter/flutter-samples-app exists on your EVK board or SD card before copying.

   • If it does not exist, create it using:

   sudo mkdir -p <sdcard-mount-point>/usr/share/flutter/my-flutter-samples-app/


Please refer to Step 2: Deploy Sample Applications if you want to deploy over ethernet (using SCP).

Step 6. Run the Flutter Sample Application¶

1. Prepare the necessary equipment and configure the EVK DIP switches by following the instructions in Hardware Setup.

2. Insert the bootable microSD card created in Step 4 into the microSD card slot, and then power on the EVK board.

   Tip

   • Please refer to the EVK Peripheral Setup to locate the microSD card slot based on your selected boot mode.
   • Press and hold the power button (red button) for 1 second to turn on the EVK board.

3. Use the following command on your EVK board to run the Flutter sample application.

export LD_PRELOAD=/usr/share/flutter/my-flutter-samples-app/3.27.1/release/lib/libflutter_engine.so

flutter-client -f -b /usr/share/flutter/my-flutter-samples-app/3.27.1/release/

The launched sample application is shown below.
Image File Selection Screen

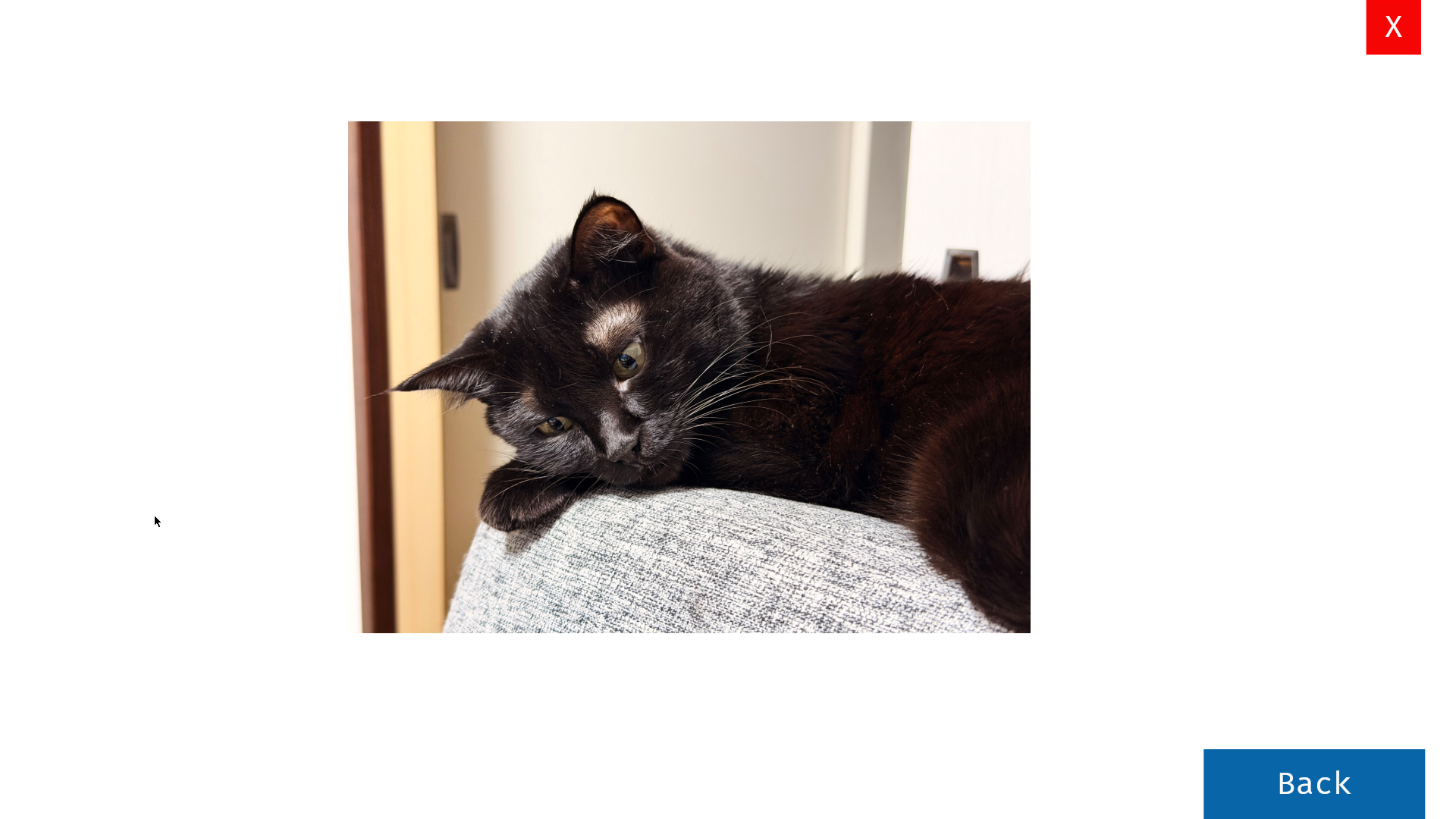

Click the JPEG button, you will get: Image File Display Screen-JPG display

Click the GIF button, you will get: Image File Display Screen-GIF display

Once you have successfully tried this simple Flutter sample application, you’re ready to start designing your own Flutter applications.
