Getting Started¶

This page explains how to start-up the Renesas RZ Linux BSP Plus.

Note

Hereafter, we use following terminology.

EVK: Refers "Evaluation Board Kit".

Introduction¶

Getting Started explains the instruction to run the Renesas RZ Linux BSP Plus.

Common instructions are explained in this document.

Step 1: Obtain an evaluation board¶

Click the button below to get the board.

Board
Get the board for RZ MPUs.

RZ/G2LRZ/G2LCRZ/G2ULRZ/G3S

The RZ/G2L Evaluation Board Kit (EVK) is the ideal board kit for RZ/G2L evaluation.

Following items are included in the RZ/G2L Evaluation Board Kit.

Equipment	Details
RZ/G2L Evaluation Board	Evaluation board itself
Micro USB to Serial Cable	For serial communication between PC and the board

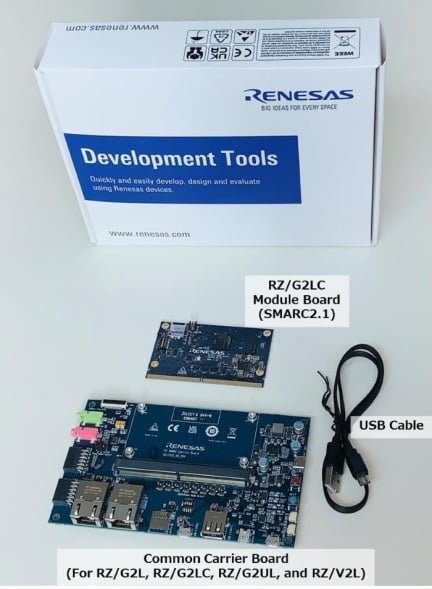

The RZ/G2LC Evaluation Board Kit (EVK) is the ideal board kit for RZ/G2LC evaluation.

Following items are included in the RZ/G2LC Evaluation Board Kit.

Equipment	Details
RZ/G2LC Evaluation Board	Evaluation board itself
Micro USB to Serial Cable	For serial communication between PC and the board

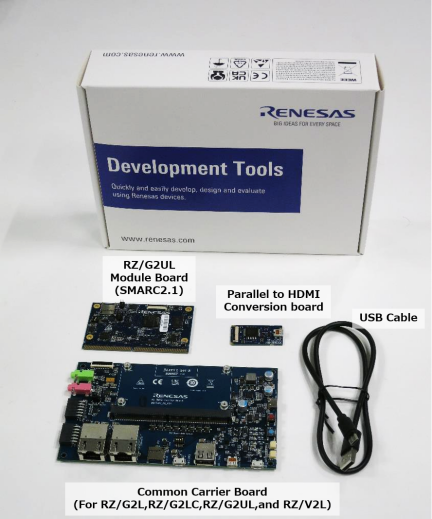

The RZ/G2UL Evaluation Board Kit (EVK) is the ideal board kit for RZ/G2UL evaluation.

Following items are included in the RZ/G2UL Evaluation Board Kit.

Equipment	Details
RZ/G2UL Evaluation Board	Evaluation board itself
Micro USB to Serial Cable	For serial communication between PC and the board

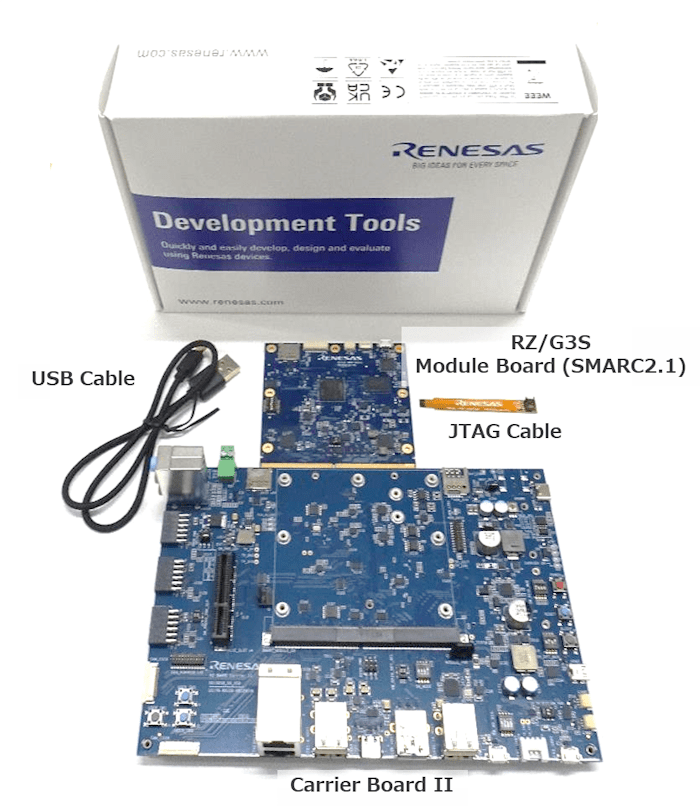

The RZ/G3S Evaluation Board Kit (EVK) is the ideal board kit for RZ/G3S evaluation.

Following items are included in the RZ/G3S Evaluation Board Kit.

Equipment	Details
RZ/G3S Evaluation Board	Evaluation board itself
Micro USB to Serial Cable	For serial communication between PC and the board

Step 2: Obtain necessary environment¶

1. Necessary Equipment¶

Please prepare the following equipment for your EVK.

RZ/G2LRZ/G2LCRZ/G2ULRZ/G3S

Equipment	Purpose	Remarks
RZ/G2L Module Board (SMARC2.1) + Common Carrier Board (P/N: RTK9744L23S01000BE)	It is used to evaluate Linux boot.	Included with RZ/G2L Evaluation Board Kit (EVK)
USB serial cable	It is used to connect the PC and the EVK and get the console output of Linux running on the EVK. * Connect to micro USB type-B (2.0) port of EVK	Included with RZ/G2L Evaluation Board Kit (EVK)
USB Power Delivery (PD) AC adapter + USB C PD cable for power supply	Used for power supply * Connect to USB type-C port of EVK
PC	It can be used to operate the demo environment from a terminal on a PC, rebuild HMI SDK Linux, or use it as a development device for applications. At least 100GB or more free space of HDD/SDD 8GB or more RAM * 4-core or more CPU	The OS of the PC is as follows. However, Windows PCs are for debugging using a serial connection and cannot be used for development such as building software. Ubuntu 22.04 LTS, 64-bit version Windows 10 or 11
micro SD card	Linux and demo images provided by the HMI SDK are written and used as a Linux boot device. Type: SDHC Speed class: UHI-Class 10 * Capacity: Minimum 4GB, recommended 8GB	Linux on the RZ/G2L EVK is booted from a micro SD card by eSD boot.

Equipment	Purpose	Remarks
RZ/G2LC Module Board (SMARC2.1) + Common Carrier Board (P/N: RTK9744C22S01000BE)	It is used to evaluate Linux boot.	Included with RZ/G2LC Evaluation Board Kit (EVK)
USB serial cable	It is used to connect the PC and the EVK and get the console output of Linux running on the EVK. * Connect to micro USB type-B (2.0) port of EVK	Included with RZ/G2LC Evaluation Board Kit (EVK)
USB Power Delivery (PD) AC adapter + USB C PD cable for power supply	Used for power supply * Connect to USB type-C port of EVK
PC	It can be used to operate the demo environment from a terminal on a PC, rebuild HMI SDK Linux, or use it as a development device for applications. At least 100GB or more free space of HDD/SDD 8GB or more RAM * 4-core or more CPU	The OS of the PC is as follows. However, Windows PCs are for debugging using a serial connection and cannot be used for development such as building software. Ubuntu 22.04 LTS, 64-bit version Windows 10 or 11
micro SD card	Linux and demo images provided by the HMI SDK are written and used as a Linux boot device. Type: SDHC Speed class: UHI-Class 10 * Capacity: Minimum 4GB, recommended 8GB	Linux on the RZ/G2LC EVK is booted from a micro SD card by eSD boot.

Equipment	Purpose	Remarks
RZ/G2UL Module Board (SMARC2.1) + Common Carrier Board (P/N: RTK9743U11S01000BE)	It is used to evaluate Linux boot.	Included with RZ/G2UL Evaluation Board Kit (EVK)
USB serial cable	It is used to connect the PC and the EVK and get the console output of Linux running on the EVK. * Connect to micro USB type-B (2.0) port of EVK	Included with RZ/G2UL Evaluation Board Kit (EVK)
USB Power Delivery (PD) AC adapter + USB C PD cable for power supply	Used for power supply * Connect to USB type-C port of EVK
PC	It can be used to operate the demo environment from a terminal on a PC, rebuild HMI SDK Linux, or use it as a development device for applications. At least 100GB or more free space of HDD/SDD 8GB or more RAM * 4-core or more CPU	The OS of the PC is as follows. However, Windows PCs are for debugging using a serial connection and cannot be used for development such as building software. Ubuntu 22.04 LTS, 64-bit version Windows 10 or 11
micro SD card	Linux and demo images provided by the HMI SDK are written and used as a Linux boot device. Type: SDHC Speed class: UHI-Class 10 * Capacity: Minimum 4GB, recommended 8GB	Linux on the RZ/G2UL EVK is booted from a micro SD card by eSD boot.

Equipment	Purpose	Remarks
RZ/G3S Module Board (SMARC2.1) + Common Carrier Board II (P/N: RTK9845S33S01000BE)	It is used to evaluate Linux boot.	Included with RZ/G3S Evaluation Board Kit (EVK)
USB serial cable	It is used to connect the PC and the EVK and get the console output of Linux running on the EVK. * Connect to micro USB type-B (2.0) port of EVK	Included with RZ/G3S Evaluation Board Kit (EVK)
USB Power Delivery (PD) AC adapter + USB C PD cable for power supply	Used for power supply * Connect to USB type-C port of EVK
PC	It can be used to operate the demo environment from a terminal on a PC, rebuild HMI SDK Linux, or use it as a development device for applications. At least 100GB or more free space of HDD/SDD 8GB or more RAM * 4-core or more CPU	The OS of the PC is as follows. However, Windows PCs are for debugging using a serial connection and cannot be used for development such as building software. Ubuntu 22.04 LTS, 64-bit version Windows 10 or 11
micro SD card	Linux and demo images provided by the HMI SDK are written and used as a Linux boot device. Type: SDHC Speed class: UHI-Class 10 * Capacity: Minimum 4GB, recommended 8GB	Linux on the RZ/G3S EVK is booted from a micro SD card by eSD boot.

2. Necessary Software¶

Please install following software on Linux PC.

git

Step 3: Obtain and Build Renesas RZ Linux BSP Plus source code¶

Please refer to How To Build Linux BSP Plus.

Step 4: Deploy Renesas RZ Linux BSP Plus¶

You can prepare the microSD card by the following method. Please select one of them and follow the steps.

Below steps are for wic image.

1. In case of Windows PC¶

Download or copy the release package into your PC
Unzip the release package and extract an image file
Write the image file to your micro SD card by using one of the following tool
- Win32 Disk Imager
- balenaEtcher
RZ/G2LRZ/G2LCRZ/G2ULRZ/G3S
Image file is:
- <image name>-smarc-rzg2l.rootfs.wic.gz
Note
Where <image name> is one of the following:
core-image-minimal
core-image-weston
Caution
Even if you see a message such as you need to format the disk before/after writing the image, do not format the SD card.
Image file is:
- <image name>-smarc-rzg2lc.rootfs.wic.gz
Note
Where <image name> is one of the following:
core-image-minimal
core-image-weston
Caution
Even if you see a message such as you need to format the disk before/after writing the image, do not format the SD card.
Image file is:
- <image name>-smarc-rzg2ul.rootfs.wic.gz
Note
Where <image name> is one of the following:
core-image-minimal
Caution
Even if you see a message such as you need to format the disk before/after writing the image, do not format the SD card.
Image file is:
- <image name>-smarc-rzg3s.rootfs.wic.gz
Note
Where <image name> is one of the following:
core-image-minimal
Caution
Even if you see a message such as you need to format the disk before/after writing the image, do not format the SD card.

2. In case of Linux PC (Ubuntu)¶

Download or copy the release package into your PC
Unzip the release package and extract an image file

Insert the micro SD Card into your Linux PC and find the device name of the SD card

Use lsblk command to check the device name as follows.

Before inserting the SD card

lsblk

NAME        MAJ:MIN RM   SIZE RO TYPE MOUNTPOINT
    (snip)
nvme0n1     259:0    0 465.8G  0 disk
├─nvme0n1p1 259:1    0   512M  0 part /boot/efi
└─nvme0n1p2 259:2    0 465.3G  0 part /

After inserting the SD card

lsblk

NAME        MAJ:MIN RM   SIZE RO TYPE MOUNTPOINT
    (snip)
nvme0n1     259:0    0 465.8G  0 disk
├─nvme0n1p1 259:1    0   512M  0 part /boot/efi
└─nvme0n1p2 259:2    0 465.3G  0 part /
sda           8:0    1  14.5G  0 disk
├─sda1        8:1    1   500M  0 part /media/user/boot
└─sda2        8:2    1   3.4G  0 part /media/user/rootfs

Note

The device name is assigned to the SD card by Linux on your Host PC. It may be named /dev/sd* (* is a letter representing the physical drive). It is /dev/sda in this sample.

Unmount the SD card if it is mounted

Use umount command with mount points that are displayed when you executed lsblk command. For example:
```
umount /media/user/boot
umount /media/user/rootfs
```
Write the image to the SD card

Use bmaptool command with device name of SD card is displayed when you executed lsblk command. For example:
```
sudo bmaptool copy <wic image>.wic.gz /dev/sda
```
RZ/G2LRZ/G2LCRZ/G2ULRZ/G3S
Image file is:
- <image name>-smarc-rzg2l.rootfs.wic.gz
Note
Additionally, the file below is also required:
<image name>-smarc-rzg2l.rootfs.wic.bmap
Note
Where <image name> is one of the following:
core-image-minimal
core-image-weston
Image file is:
- <image name>-smarc-rzg2lc.rootfs.wic.gz
Note
Additionally, the file below is also required:
<image name>-smarc-rzg2lc.rootfs.wic.bmap
Note
Where <image name> is one of the following:
core-image-minimal
core-image-weston
Image file is:
- <image name>-smarc-rzg2ul.rootfs.wic.gz
Note
Additionally, the file below is also required:
<image name>-smarc-rzg2ul.rootfs.wic.bmap
Note
Where <image name> is one of the following:
core-image-minimal
Image file is:
- <image name>-smarc-rzg3s.rootfs.wic.gz
Note
Additionally, the file below is also required:
<image name>-smarc-rzg3s.rootfs.wic.bmap
Note
Where <image name> is one of the following:
core-image-minimal

Step 5: Reference Board Setting¶

1. Setup EVK's peripheral¶

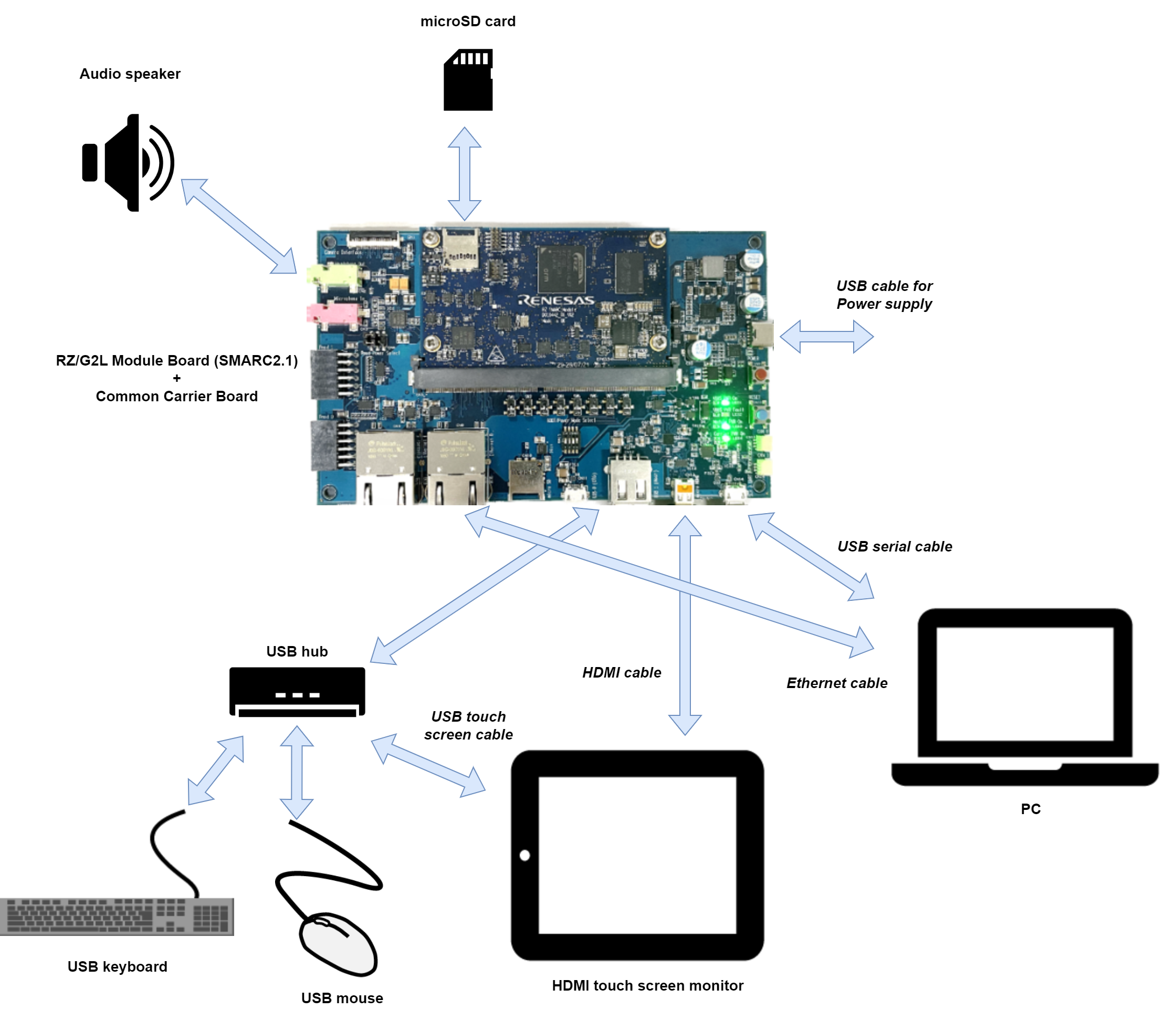

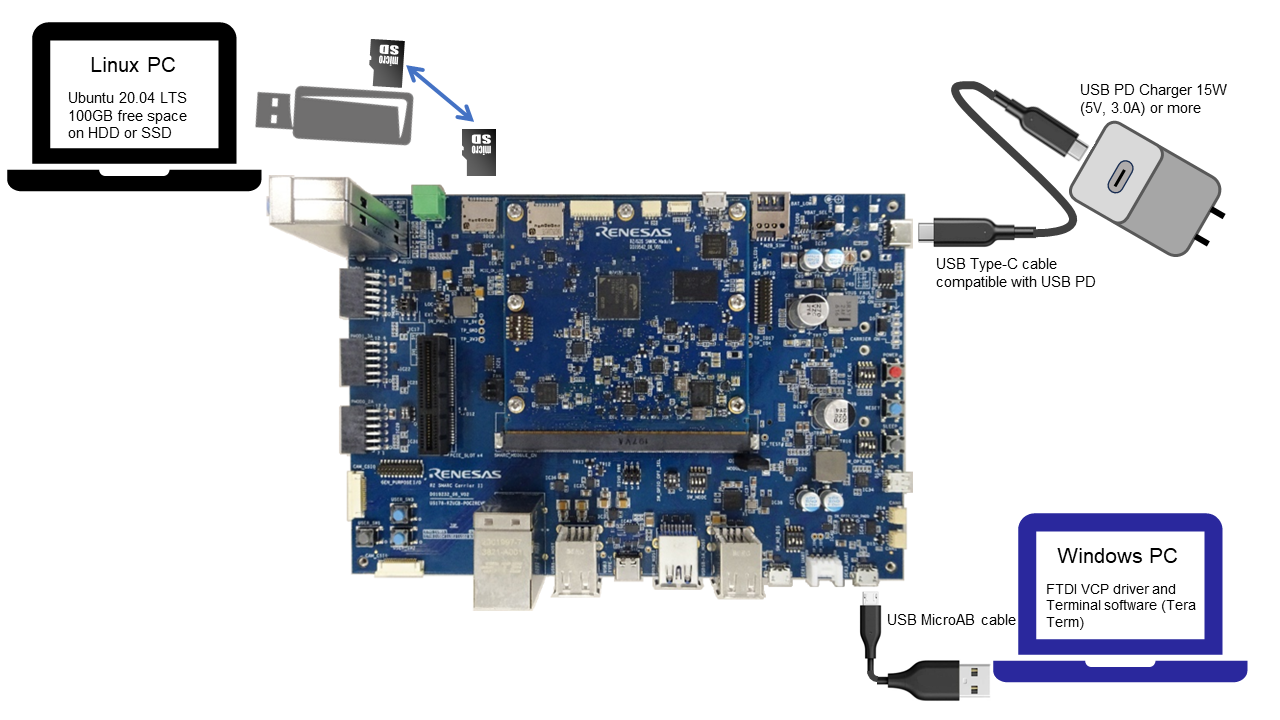

Please setup following below diagram.

RZ/G2LRZ/G2LCRZ/G2ULRZ/G3S

2. EVK's DIP switch¶

RZ/G2LRZ/G2LCRZ/G2ULRZ/G3S

EVK's DIP switch (SW1 and SW11) reference.

SW1
- SD Card

  SW1-1 SW1-2
  ON ON
- eMMC

  SW1-1 SW1-2
  ON OFF
SW11
- SCIF Download Mode

  SW11-1 SW11-2 SW11-3 SW11-4
  OFF ON OFF ON
- QSPI Boot Mode

  SW11-1 SW11-2 SW11-3 SW11-4
  OFF OFF OFF ON
- eMMC Boot Mode

  SW11-1 SW11-2 SW11-3 SW11-4
  ON OFF OFF ON
- eSD Boot Mode

  SW11-1 SW11-2 SW11-3 SW11-4
  ON ON OFF ON
Note
- Input voltage selection

  SW11-4 Input voltage selection
  OFF Input 9V
  ON Input 5V

EVK's DIP switch (SW1 and SW11) reference.

SW1
- SD Card

  SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6
  ON ON ON OFF ON ON

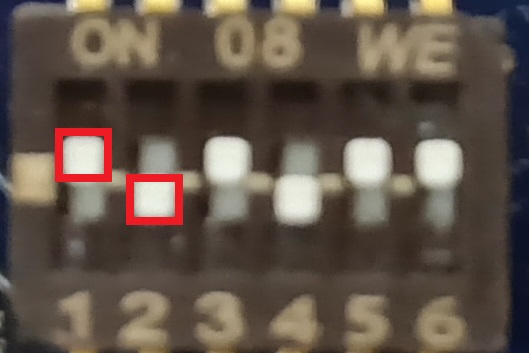

- eMMC

  SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6
  ON OFF ON OFF ON ON
SW11
- SCIF Download Mode

  SW11-1 SW11-2 SW11-3 SW11-4
  OFF ON OFF ON
- QSPI Boot Mode

  SW11-1 SW11-2 SW11-3 SW11-4
  OFF OFF OFF ON
- eMMC Boot Mode

  SW11-1 SW11-2 SW11-3 SW11-4
  ON OFF OFF ON
- eSD Boot Mode

  SW11-1 SW11-2 SW11-3 SW11-4
  ON ON OFF ON
Note
- Input voltage selection

  SW11-4 Input voltage selection
  OFF Input 9V
  ON Input 5V

EVK's DIP switch (SW1 and SW11) reference.

SW1
- SD Card

  SW1-1 SW1-2 SW1-3
  ON ON ON

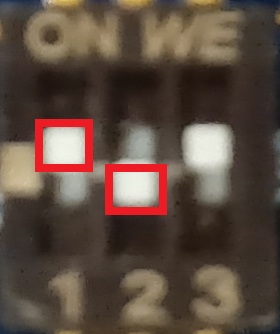

- eMMC

  SW1-1 SW1-2 SW1-3
  ON OFF ON
SW11
- SCIF Download Mode

  SW11-1 SW11-2 SW11-3 SW11-4
  OFF ON OFF ON
- QSPI Boot Mode

  SW11-1 SW11-2 SW11-3 SW11-4
  OFF OFF OFF ON
- eMMC Boot Mode

  SW11-1 SW11-2 SW11-3 SW11-4
  ON OFF OFF ON
- eSD Boot Mode

  SW11-1 SW11-2 SW11-3 SW11-4
  ON ON OFF ON
Note
- Input voltage selection

  SW11-4 Input voltage selection
  OFF Input 9V
  ON Input 5V

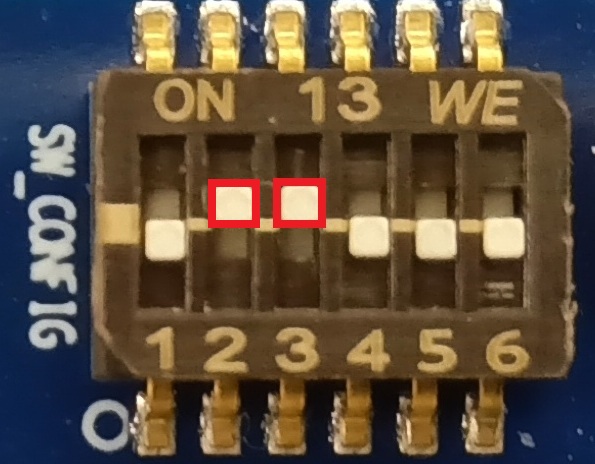

EVK's DIP switch (SW_CONFIG and SW_MODE) reference.

SW_CONFIG
- SD Card

  SW_CONFIG[1] SW_CONFIG[2] SW_CONFIG[3] SW_CONFIG[4] SW_CONFIG[5] SW_CONFIG[6]
  OFF ON ON OFF OFF OFF

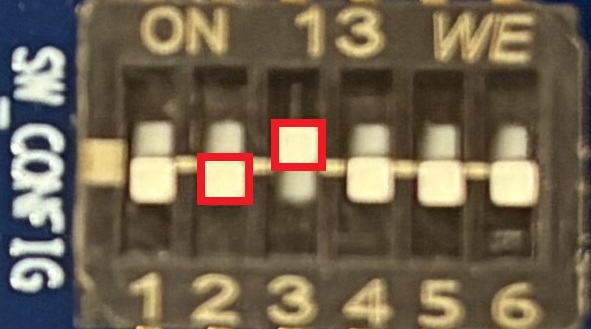

- eMMC

  SW_CONFIG[1] SW_CONFIG[2] SW_CONFIG[3] SW_CONFIG[4] SW_CONFIG[5] SW_CONFIG[6]
  OFF OFF ON OFF OFF OFF
SW_MODE

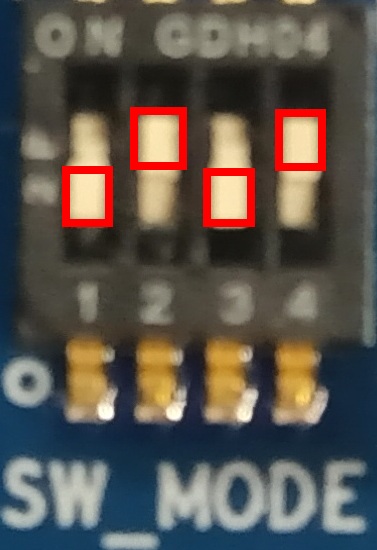

- SCIF Download Mode

  SW_MODE[1] SW_MODE[2] SW_MODE[3] SW_MODE[4]
  OFF ON OFF ON

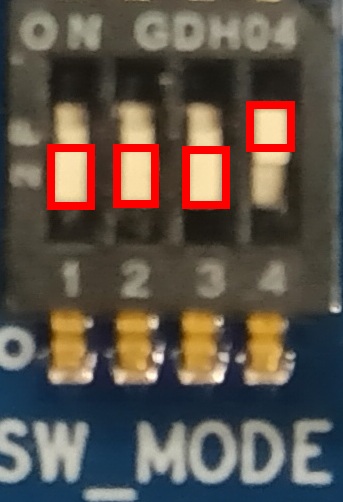

- QSPI Boot Mode

  SW_MODE[1] SW_MODE[2] SW_MODE[3] SW_MODE[4]
  OFF OFF OFF ON

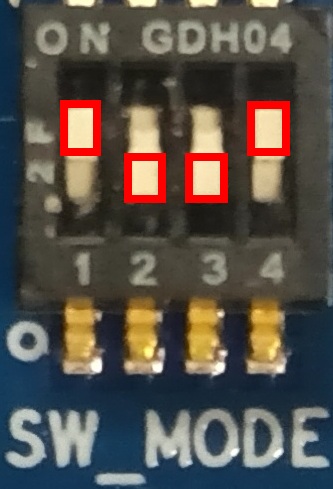

- eMMC Boot Mode

  SW_MODE[1] SW_MODE[2] SW_MODE[3] SW_MODE[4]
  ON OFF OFF ON

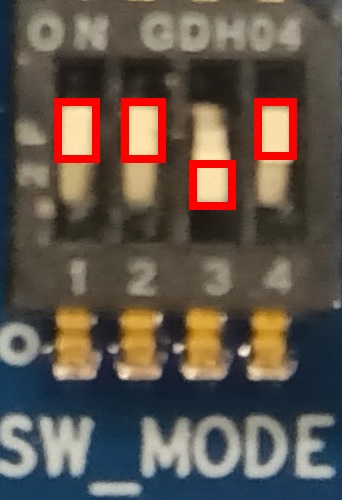

- eSD Boot Mode

  SW_MODE[1] SW_MODE[2] SW_MODE[3] SW_MODE[4]
  ON ON OFF ON

3. Prepare for Flashing Boot Loader into EVK¶

Connect the board to the programing PC by using the USB serial cable.

RZ/G2LRZ/G2LCRZ/G2ULRZ/G3S

To set the board to SCIF Download mode, set the SW11 as below.

SW11-1 SW11-2 SW11-3 SW11-4
OFF ON OFF ON

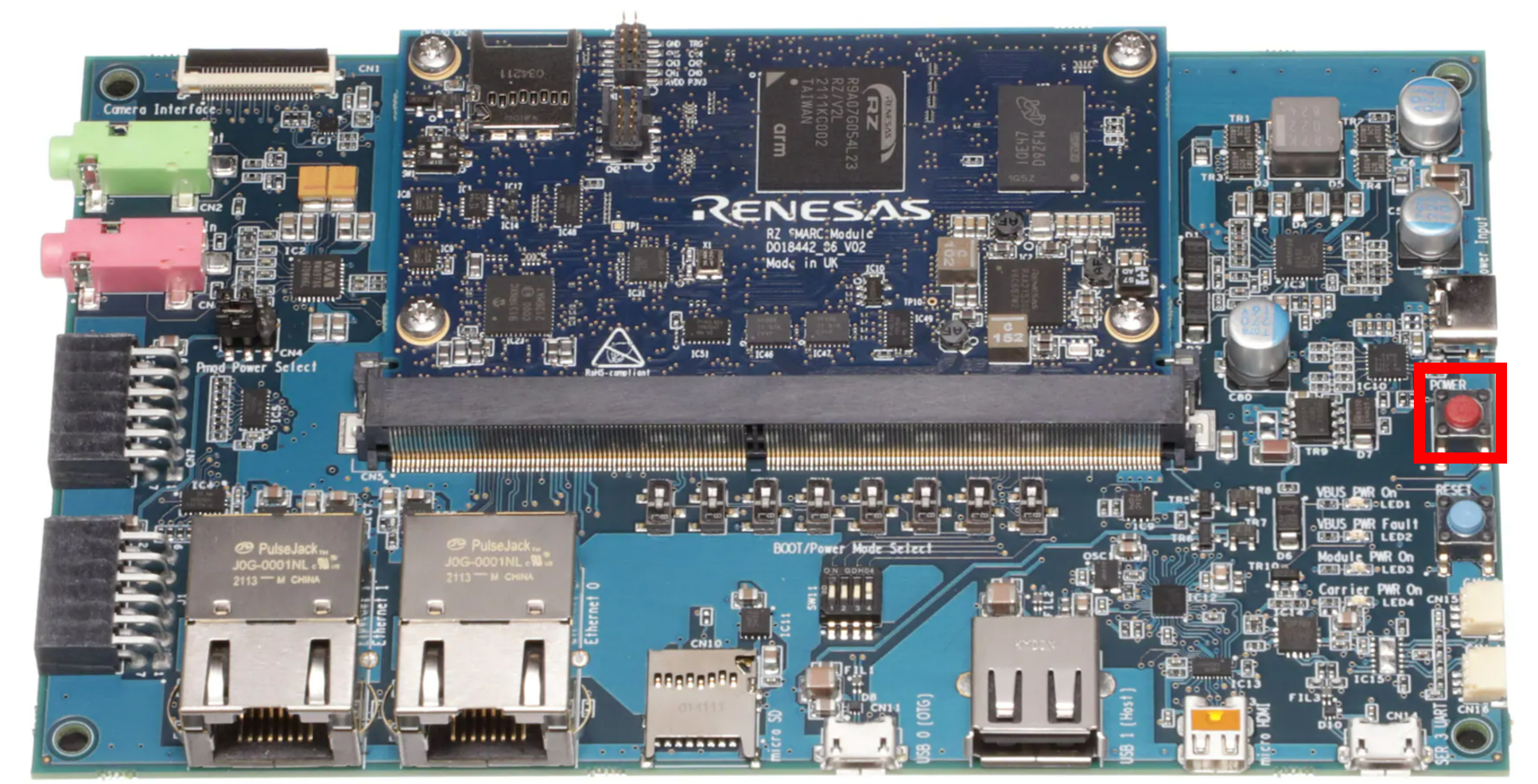

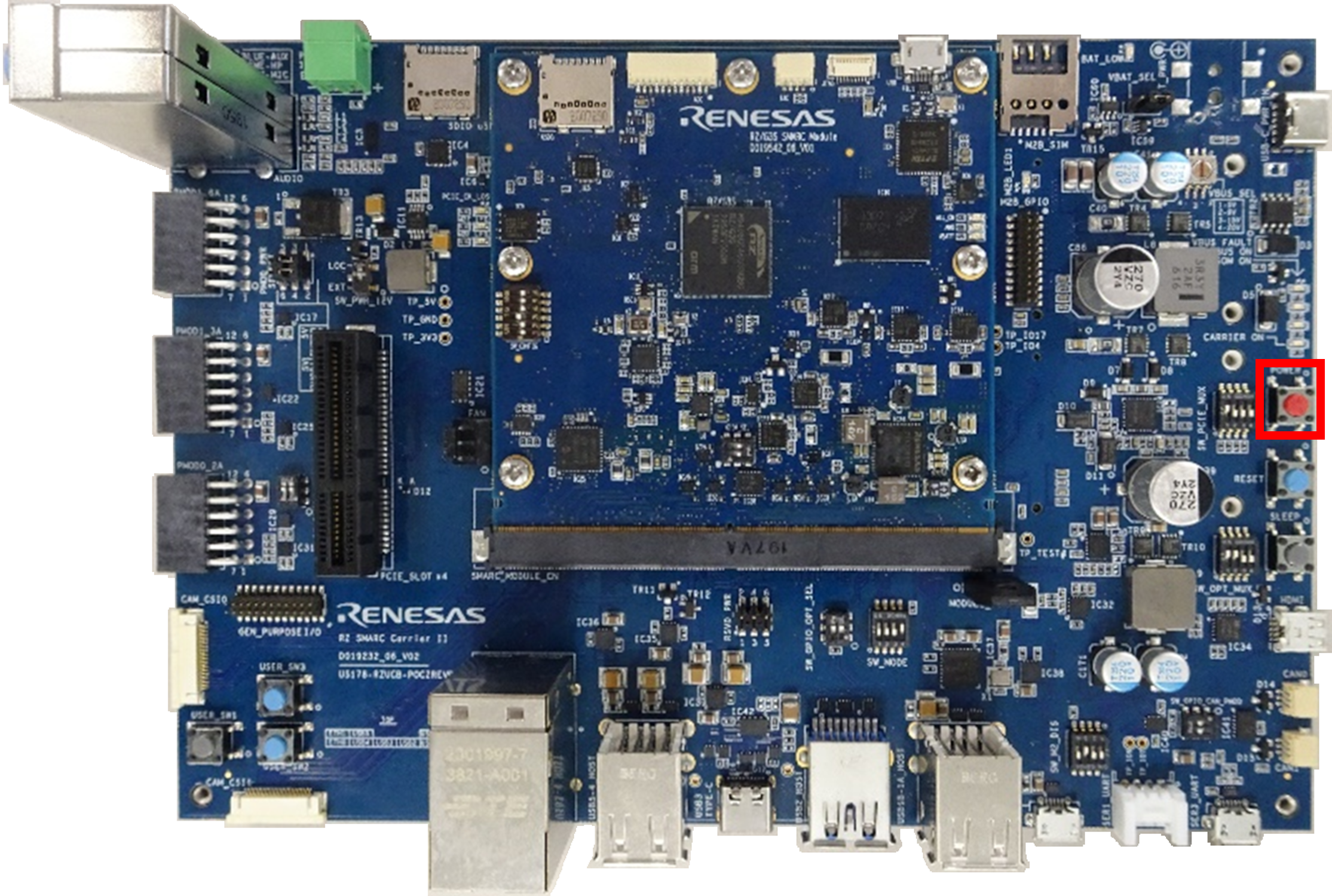

Press the power button to turn on the power.
- When turning on the power, press and hold the power button for 1 second.
- When turn off the power, press and hold the power button for 2 seconds

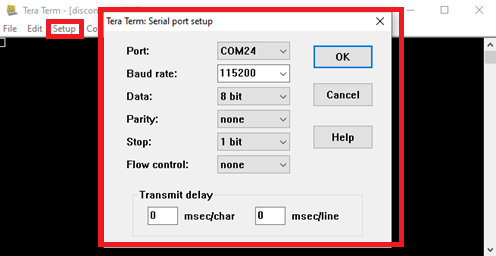

Bring up TeraTerm and select the File > New Connection to set the connection on the software.
Select the Setup > Serial port to set the settings about serial communication protocol on TeraTerm.

Set the settings for the serial communication in TeraTerm as below:

Variable Value
Baud rate 115200 bps
Data 8 bit
Parity none
Stop 1 bit
Flow control none
Select the Setup > Terminal to set the new-line code.

Variable Value
New-line CR or AUTO

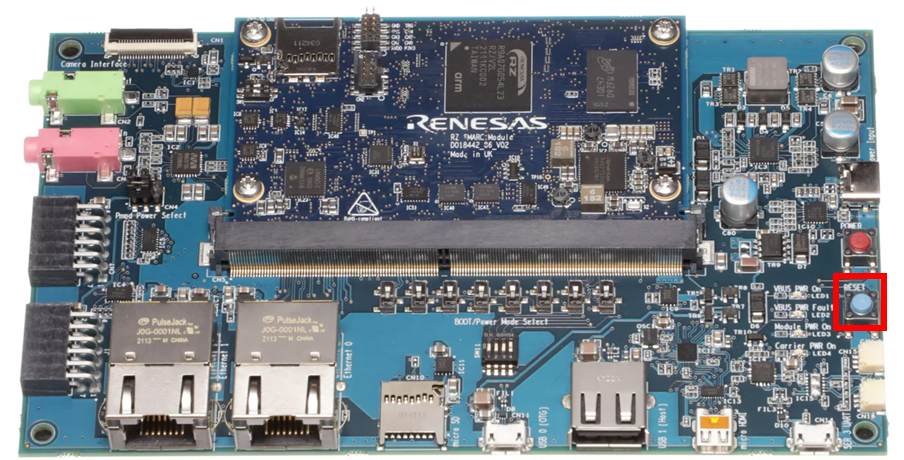

After finishing all settings, when the reset button is pressed, the message below will be displayed on the terminal.

To set the board to SCIF Download mode, set the SW11 as below.

SW11-1 SW11-2 SW11-3 SW11-4
OFF ON OFF ON
Press the power button to turn on the power.
- When turning on the power, press and hold the power button for 1 second.
- When turn off the power, press and hold the power button for 2 seconds
Bring up TeraTerm and select the File > New Connection to set the connection on the software.
Select the Setup > Serial port to set the settings about serial communication protocol on TeraTerm.

Set the settings for the serial communication in TeraTerm as below:

Variable Value
Baud rate 115200 bps
Data 8 bit
Parity none
Stop 1 bit
Flow control none
Select the Setup > Terminal to set the new-line code.

Variable Value
New-line CR or AUTO
After finishing all settings, when the reset button is pressed, the message below will be displayed on the terminal.

To set the board to SCIF Download mode, set the SW11 as below.

SW11-1 SW11-2 SW11-3 SW11-4
OFF ON OFF ON
Press the power button to turn on the power.
- When turning on the power, press and hold the power button for 1 second.
- When turn off the power, press and hold the power button for 2 seconds
Bring up TeraTerm and select the File > New Connection to set the connection on the software.
Select the Setup > Serial port to set the settings about serial communication protocol on TeraTerm.

Set the settings for the serial communication in TeraTerm as below:

Variable Value
Baud rate 115200 bps
Data 8 bit
Parity none
Stop 1 bit
Flow control none
Select the Setup > Terminal to set the new-line code.

Variable Value
New-line CR or AUTO
After finishing all settings, when the reset button is pressed, the message below will be displayed on the terminal.

To set the board to SCIF Download mode, set the SW_MODE as below.

SW_MODE[1] SW_MODE[2] SW_MODE[3] SW_MODE[4]
OFF ON OFF ON
Press the power button to turn on the power.
Bring up TeraTerm and select the File > New Connection to set the connection on the software.
Select the Setup > Serial port to set the settings about serial communication protocol on TeraTerm.

Set the settings for the serial communication in TeraTerm as below:

Variable Value
Baud rate 115200 bps
Data 8 bit
Parity none
Stop 1 bit
Flow control none
Select the Setup > Terminal to set the new-line code.

Variable Value
New-line CR or AUTO
After finishing all settings, when the reset button is pressed, the message below will be displayed on the terminal.

4. Download Flash Writer to RAM¶

Flash Writer is a small program that is downloaded into internal RAM inside the target device to assist in programming the boot loader into Flash memory.

Turn on the power of the board by pressing SW9. The messages below are shown on the terminal.

 SCIF Download mode
 (C) Renesas Electronics Corp.

-- Load Program to SystemRAM ---------------
please send !

Send an image of Flash Writer using the terminal software after the message please send ! is shown.

RZ/G2LRZ/G2LCRZ/G2ULRZ/G3S

Flash Writer image file is:

Flash_Writer_SCIF_RZG2L_SMARC_PMIC_DDR4_2GB_1PCS.mot

Below is a sample procedure with TeraTerm.

Open a Send file dialog by selecting File > Send file menu.
Select the image to be send and click Open button.
The image will be sent to the board via serial connection.
After successfully downloading the binary, Flash Writer starts automatically and shows a message like below on the terminal.
```
Flash writer for RZ/G2 Series V1.02 Nov.15,2021
Product Code : RZ/G2L
>
```

Flash Writer image file is:

Flash_Writer_SCIF_RZG2LC_SMARC_DDR4_1GB_1PCS.mot

Below is a sample procedure with TeraTerm.

Open a Send file dialog by selecting File > Send file menu.
Select the image to be send and click Open button. The following image is for the RZ/G2L. Please select the Flash Writer image that corresponds to your target device.
The image will be sent to the board via serial connection.
After successfully downloading the binary, Flash Writer starts automatically and shows a message like below on the terminal.
```
Flash writer for RZ/G2 Series V1.02 Nov.15,2021
Product Code : RZ/G2LC
>
```

Flash Writer image file is:

Flash_Writer_SCIF_RZG2UL_SMARC_DDR4_1GB_1PCS.mot

Below is a sample procedure with TeraTerm.

Open a Send file dialog by selecting File > Send file menu.
Select the image to be send and click Open button. The following image is for the RZ/G2L. Please select the Flash Writer image that corresponds to your target device.
The image will be sent to the board via serial connection.
After successfully downloading the binary, Flash Writer starts automatically and shows a message like below on the terminal.
```
Flash writer for RZ/G2 Series V1.02 Nov.15,2021
Product Code : RZ/G2UL
>
```

Flash Writer image file is:

FlashWriter-smarc-rzg3s.mot

Below is a sample procedure with TeraTerm.

Open a Send file dialog by selecting File > Send file menu.
Select the image to be send and click Open button. The following image is for the RZ/G2L. Please select the Flash Writer image that corresponds to your target device.
The image will be sent to the board via serial connection.
After successfully downloading the binary, Flash Writer starts automatically and shows a message like below on the terminal.
```
Flash writer for RZ/G3 Series V1.02 Nov.15,2021
Product Code : RZ/G3S
>
```

5. Write the Bootloader¶

For the boot operation, two boot loader files need to be programming into the target board.

The corresponding bootloader files and specified address information depend on each target board.

Before writing the loader files, change the Flash Writer transfer rate from default (115200 bps) to high speed (921600 bps) with SUP (speed up) command of Flash Writer.

>SUP
Scif speed UP
Please change to 921.6Kbps baud rate setting of the terminal.

After issuing the SUP command, change the serial communication protocol speed from 115200 bps to 921600 bps as well, and push the enter key.

Next, use the XLS2 command of Flash Writer to write boot loader binary files.

This command receives binary data from the serial port and writes the data to a specified address of the Flash ROM with information where the data should be loaded on the address of the main memory.

RZ/G2LRZ/G2LCRZ/G2ULRZ/G3S

For example, this part describes how to write boot loader files:

>XLS2
===== Qspi writing of RZ/G2 Board Command =============
Load Program to Spiflash
Writes to any of SPI address.
 Micron : MT25QU512
Program Top Address & Qspi Save Address
===== Please Input Program Top Address ============
  Please Input : H'11E00

===== Please Input Qspi Save Address ===
  Please Input : H'00000
Work RAM(H'50000000-H'53FFFFFF) Clear....
please send ! ('.' & CR stop load)

Send the data of bl2_bp_spi-smarc-rzg2l_pmic.srec from terminal software after the message please send ! is shown.

After successfully downloading the binary, messages like below are shown on the terminal.

SPI Data Clear(H'FF) Check :H'00000000-0000FFFF Erasing..Erase Completed
SAVE SPI-FLASH.......
======= Qspi  Save Information  =================
 SpiFlashMemory Stat Address : H'00000000
 SpiFlashMemory End Address  : H'0000BAC8
===========================================================

Note

SPI Data Clear(H'FF) Check : H'00000000-0000FFFF,Clear OK?(y/n)

In case a message to prompt to clear data like above, please enter Y.

Next, write another loader file by using XLS2 command again.

>XLS2
===== Qspi writing of RZ/G2 Board Command =============
Load Program to Spiflash
Writes to any of SPI address.
 Micron : MT25QU512
Program Top Address & Qspi Save Address
===== Please Input Program Top Address ============
  Please Input : H'00000

===== Please Input Qspi Save Address ===
  Please Input : H'20000
Work RAM(H'50000000-H'53FFFFFF) Clear....
please send ! ('.' & CR stop load)

Send the data of fip-smarc-rzg2l_pmic.srec from terminal software after the message please send ! is shown.

After successfully downloading the binary, messages like below are shown on the terminal.

SPI Data Clear(H'FF) Check :H'00000000-0000FFFF Erasing..Erase Completed
SAVE SPI-FLASH.......
======= Qspi  Save Information  =================
 SpiFlashMemory Stat Address : H'00020000
 SpiFlashMemory End Address  : H'000CC73F
===========================================================

Note

SPI Data Clear(H'FF) Check : H'00000000-0000FFFF,Clear OK?(y/n)

In case a message to prompt to clear data like above, please enter Y.

After writing the two loader files normally, change the serial communication protocol speed from 921600 bps to 115200 bps.

At last, turn off the power of the board by pressing SW9.

Note

Address for sending each loader binary file for QSPI boot

File name Address to load to RAM Address to save to ROM
bl2_bp_spi-smarc-rzg2l_pmic.srec 11E00 00000
fip-smarc-rzg2l_pmic.srec 00000 20000

For example, this part describes how to write boot loader files:

>XLS2
===== Qspi writing of RZ/G2 Board Command =============
Load Program to Spiflash
Writes to any of SPI address.
 Micron : MT25QU512
Program Top Address & Qspi Save Address
===== Please Input Program Top Address ============
  Please Input : H'11E00

===== Please Input Qspi Save Address ===
  Please Input : H'00000
Work RAM(H'50000000-H'53FFFFFF) Clear....
please send ! ('.' & CR stop load)

Send the data of bl2_bp_spi-smarc-rzg2lc.srec from terminal software after the message please send ! is shown.

After successfully downloading the binary, messages like below are shown on the terminal.

SPI Data Clear(H'FF) Check :H'00000000-0000FFFF Erasing..Erase Completed
SAVE SPI-FLASH.......
======= Qspi  Save Information  =================
 SpiFlashMemory Stat Address : H'00000000
 SpiFlashMemory End Address  : H'0000BAC8
===========================================================

Note

SPI Data Clear(H'FF) Check : H'00000000-0000FFFF,Clear OK?(y/n)

In case a message to prompt to clear data like above, please enter Y.

Next, write another loader file by using XLS2 command again.

>XLS2
===== Qspi writing of RZ/G2 Board Command =============
Load Program to Spiflash
Writes to any of SPI address.
 Micron : MT25QU512
Program Top Address & Qspi Save Address
===== Please Input Program Top Address ============
  Please Input : H'00000

===== Please Input Qspi Save Address ===
  Please Input : H'20000
Work RAM(H'50000000-H'53FFFFFF) Clear....
please send ! ('.' & CR stop load)

Send the data of fip-smarc-rzg2lc.srec from terminal software after the message please send ! is shown.

After successfully downloading the binary, messages like below are shown on the terminal.

SPI Data Clear(H'FF) Check :H'00000000-0000FFFF Erasing..Erase Completed
SAVE SPI-FLASH.......
======= Qspi  Save Information  =================
 SpiFlashMemory Stat Address : H'00020000
 SpiFlashMemory End Address  : H'000CC73F
===========================================================

Note

SPI Data Clear(H'FF) Check : H'00000000-0000FFFF,Clear OK?(y/n)

In case a message to prompt to clear data like above, please enter Y.

After writing the two loader files normally, change the serial communication protocol speed from 921600 bps to 115200 bps.

At last, turn off the power of the board by pressing SW9.

Note

Address for sending each loader binary file for QSPI boot

File name Address to load to RAM Address to save to ROM
bl2_bp_spi-smarc-rzg2lc.srec 11E00 00000
fip-smarc-rzg2lc.srec 00000 20000

For example, this part describes how to write boot loader files:

>XLS2
===== Qspi writing of RZ/G2 Board Command =============
Load Program to Spiflash
Writes to any of SPI address.
 Micron : MT25QU512
Program Top Address & Qspi Save Address
===== Please Input Program Top Address ============
  Please Input : H'11E00

===== Please Input Qspi Save Address ===
  Please Input : H'00000
Work RAM(H'50000000-H'53FFFFFF) Clear....
please send ! ('.' & CR stop load)

Send the data of bl2_bp_spi-smarc-rzg2ul.srec from terminal software after the message please send ! is shown.

After successfully downloading the binary, messages like below are shown on the terminal.

SPI Data Clear(H'FF) Check :H'00000000-0000FFFF Erasing..Erase Completed
SAVE SPI-FLASH.......
======= Qspi  Save Information  =================
 SpiFlashMemory Stat Address : H'00000000
 SpiFlashMemory End Address  : H'0000BAC8
===========================================================

Note

SPI Data Clear(H'FF) Check : H'00000000-0000FFFF,Clear OK?(y/n)

In case a message to prompt to clear data like above, please enter Y.

Next, write another loader file by using XLS2 command again.

>XLS2
===== Qspi writing of RZ/G2 Board Command =============
Load Program to Spiflash
Writes to any of SPI address.
 Micron : MT25QU512
Program Top Address & Qspi Save Address
===== Please Input Program Top Address ============
  Please Input : H'00000

===== Please Input Qspi Save Address ===
  Please Input : H'20000
Work RAM(H'50000000-H'53FFFFFF) Clear....
please send ! ('.' & CR stop load)

Send the data of fip-smarc-rzg2ul.srec from terminal software after the message please send ! is shown.

After successfully downloading the binary, messages like below are shown on the terminal.

SPI Data Clear(H'FF) Check :H'00000000-0000FFFF Erasing..Erase Completed
SAVE SPI-FLASH.......
======= Qspi  Save Information  =================
 SpiFlashMemory Stat Address : H'00020000
 SpiFlashMemory End Address  : H'000CC73F
===========================================================

Note

SPI Data Clear(H'FF) Check : H'00000000-0000FFFF,Clear OK?(y/n)

In case a message to prompt to clear data like above, please enter Y.

After writing the two loader files normally, change the serial communication protocol speed from 921600 bps to 115200 bps.

At last, turn off the power of the board by pressing SW9.

Note

Address for sending each loader binary file for QSPI boot

File name Address to load to RAM Address to save to ROM
bl2_bp_spi-smarc-rzg2ul.srec 11E00 00000
fip-smarc-rzg2ul.srec 00000 20000

For example, this part describes how to write boot loader files:

>XLS2
===== Qspi writing of RZ/G3 Board Command =============
Load Program to Spiflash
Writes to any of SPI address.
 Micron : MT25QU512
Program Top Address & Qspi Save Address
===== Please Input Program Top Address ============
  Please Input : H'A1E00

===== Please Input Qspi Save Address ===
  Please Input : H'00000
Work RAM(H'50000000-H'53FFFFFF) Clear....
please send ! ('.' & CR stop load)

Send the data of bl2_bp_spi-smarc-rzg3s.srec from terminal software after the message please send ! is shown.

After successfully downloading the binary, messages like below are shown on the terminal.

SPI Data Clear(H'FF) Check :H'00000000-0000FFFF Erasing..Erase Completed
SAVE SPI-FLASH.......
======= Qspi  Save Information  =================
 SpiFlashMemory Stat Address : H'00000000
 SpiFlashMemory End Address  : H'0001ECC8
===========================================================

Note

SPI Data Clear(H'FF) Check : H'00000000-0000FFFF,Clear OK?(y/n)

In case a message to prompt to clear data like above, please enter Y.

Next, write another loader file by using XLS2 command again.

>XLS2
===== Qspi writing of RZ/G3 Board Command =============
Load Program to Spiflash
Writes to any of SPI address.
 Micron : MT25QU512
Program Top Address & Qspi Save Address
===== Please Input Program Top Address ============
  Please Input : H'00000

===== Please Input Qspi Save Address ===
  Please Input : H'60000
Work RAM(H'50000000-H'53FFFFFF) Clear....
please send ! ('.' & CR stop load)

Send the data of fip-smarc-rzg3s.srec from terminal software after the message please send ! is shown.

After successfully downloading the binary, messages like below are shown on the terminal.

SPI Data Clear(H'FF) Check :H'00000000-0000FFFF Erasing..Erase Completed
SAVE SPI-FLASH.......
======= Qspi  Save Information  =================
 SpiFlashMemory Stat Address : H'00060000
 SpiFlashMemory End Address  : H'0014267E
===========================================================

Note

SPI Data Clear(H'FF) Check : H'00000000-0000FFFF,Clear OK?(y/n)

In case a message to prompt to clear data like above, please enter Y.

After writing the two loader files normally, change the serial communication protocol speed from 921600 bps to 115200 bps.

At last, turn off the power of the board by pressing SW9.

Note

Address for sending each loader binary file for QSPI boot

File name Address to load to RAM Address to save to ROM
bl2_bp_spi-smarc-rzg3s.srec A1E00 00000
fip-smarc-rzg3s.srec 00000 60000

Step 6: Run RZ Linux BSP Plus¶

1. Setup EVK's DIP switch to Normal Boot¶

In this case use QSPI boot and SD card.

RZ/G2LRZ/G2LCRZ/G2ULRZ/G3S

Set up DIP switch SW1 and SW11 as follows.

SW1

SW1-1 SW1-2
ON OFF
SW11

SW11-1 SW11-2 SW11-3 SW11-4
OFF OFF OFF ON

Note

For eMMC and/or eSD Boot, please refer to Appendix.

Set up DIP switch SW1 and SW11 as follows.

SW1

SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6
ON OFF ON OFF ON ON
SW11

SW11-1 SW11-2 SW11-3 SW11-4
OFF OFF OFF ON

Note

For eMMC and/or eSD Boot, please refer to Appendix.

Set up DIP switch SW1 and SW11 as follows.

SW1

SW1-1 SW1-2 SW1-3
ON OFF ON
SW11

SW11-1 SW11-2 SW11-3 SW11-4
OFF OFF OFF ON

Note

For eMMC and/or eSD Boot, please refer to Appendix.

Set up DIP switch SW_CONFIG and SW_MODE as follows.

SW_CONFIG

SW_CONFIG[1] SW_CONFIG[2] SW_CONFIG[3] SW_CONFIG[4] SW_CONFIG[5] SW_CONFIG[6]
OFF OFF ON OFF OFF OFF
SW_MODE

SW_MODE[1] SW_MODE[2] SW_MODE[3] SW_MODE[4]
OFF OFF OFF ON

Note

For eMMC and/or eSD Boot, please refer to Appendix.

2. Turn on EVK and start Linux BSP Plus¶

RZ/G2LRZ/G2LCRZ/G2ULRZ/G3S

Insert the bootable SD card created at Step 4 into the microSD card slot on SMARC module board as illustrated in the figure at "1. Setup EVK's peripheral".
Connect a USB cable to the connector for power supply.
Press and hold power button for 1 second to turn on the EVK.

Note
Press and hold the button for 2 seconds when you turn off the EVK.

Insert the bootable SD card created at Step 4 into the microSD card slot on SMARC module board as illustrated in the figure at "1. Setup EVK's peripheral".
Connect a USB cable to the connector for power supply.
Press and hold power button for 1 second to turn on the EVK.

Note
Press and hold the button for 2 seconds when you turn off the EVK.

Insert the bootable SD card created at Step 4 into the microSD card slot on SMARC module board as illustrated in the figure at "1. Setup EVK's peripheral".
Connect a USB cable to the connector for power supply.
Press and hold power button for 1 second to turn on the EVK.

Note
Press and hold the button for 2 seconds when you turn off the EVK.

Insert the bootable SD card created at Step 4 into the microSD card slot on SMARC module board as illustrated in the figure at "1. Setup EVK's peripheral".
Connect a USB cable to the connector for power supply.
Press and hold power button for 1 second to turn on the EVK.

Note
Press and hold the button for 2 seconds when you turn off the EVK.

Variable	Value
Baud rate	`115200` bps
Data	`8 bit`
Parity	`none`
Stop	`1 bit`
Flow control	`none`

File name	Address to load to RAM	Address to save to ROM
`bl2_bp_spi-smarc-rzg2l_pmic.srec`	`11E00`	`00000`
`fip-smarc-rzg2l_pmic.srec`	`00000`	`20000`

File name	Address to load to RAM	Address to save to ROM
`bl2_bp_spi-smarc-rzg2lc.srec`	`11E00`	`00000`
`fip-smarc-rzg2lc.srec`	`00000`	`20000`

File name	Address to load to RAM	Address to save to ROM
`bl2_bp_spi-smarc-rzg2ul.srec`	`11E00`	`00000`
`fip-smarc-rzg2ul.srec`	`00000`	`20000`

File name	Address to load to RAM	Address to save to ROM
`bl2_bp_spi-smarc-rzg3s.srec`	`A1E00`	`00000`
`fip-smarc-rzg3s.srec`	`00000`	`60000`

SW11-4	Input voltage selection
OFF	Input 9V
ON	Input 5V

SW11-4	Input voltage selection
OFF	Input 9V
ON	Input 5V

SW11-4	Input voltage selection
OFF	Input 9V
ON	Input 5V
