RZ/G3L Software Package for AOSP 17¶
The RZ/G3L Software Package for AOSP 17 provides an AOSP-based Android environment with development tools, system libraries, and graphics and multimedia support.
For an easy setup and quick access to the RZ/G3L Software Package for AOSP 17, please refer to Quick Start Guides. For a customized Android environment, please refer to How to build RZ AOSP from Source Code.
This release introduces Suspend-to-RAM (S2R) mode support, helping reduce power consumption while enabling faster system startup than a cold boot and allowing users to quickly continue from where they left off, please refer to Suspend to RAM
Supported boards¶
- RZ/G3L with 2 GBytes DDR memory on EVK board
| Board | MPU | LSI | Revision | Power Circuit | Supported |
|---|---|---|---|---|---|
| RZ/G3L Evaluation Board Kit | RZ/G3L | 1 | 1 | ✓ | ✓ |

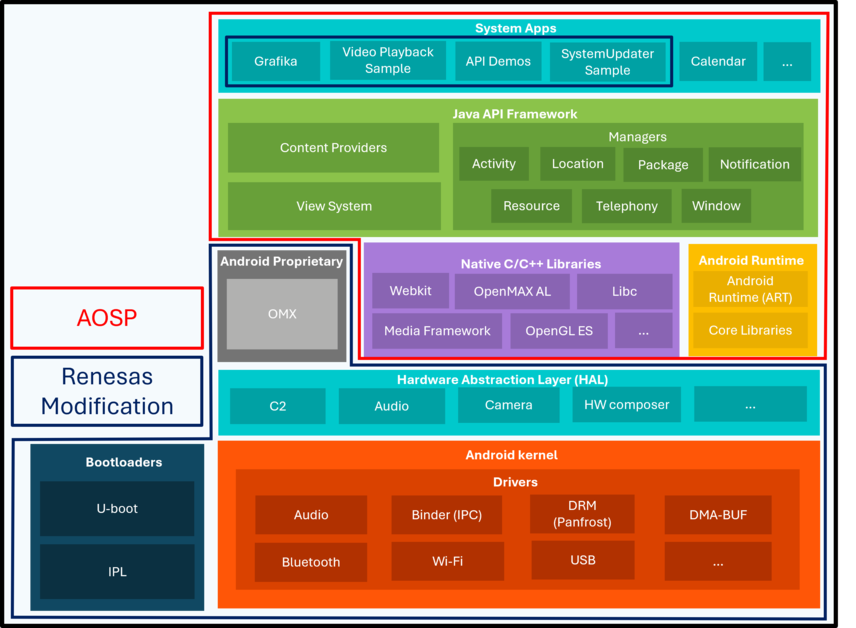

RZ AOSP Components¶
The RZ AOSP release package has been developed and tested using the following software and hardware environment.
- Based Kernel version: It is merged with the below 2 kernels:
- Android Common Kernel: 6.12.60
- Tag: ASB-2026-01-05_16-6.12. Commit id: d3ea9250f3.
- Linux®: v6.12.46-cip8.
- Android Common Kernel: 6.12.60
- Android Open Source Project (AOSP): AOSP 17 based on android-17.0.0_r1
- Toolchain for kernel/drivers and bootloaders: ARM GCC 9.2 and Android clang 22.0.0
- Build Host OS: Ubuntu 22.04 64-bit. Newer Ubuntu version may also work.
- Minimum required DDR memory size: 64 GBytes
- Storage size: At least 300 GBytes of free disk space to check out the code and an extra 150 GBytes to build
