Overview¶
The RZ/V2H Software Package for AOSP 15 provides an AOSP-based Android environment with development tools, system libraries, and graphics and multimedia support.
For an easy setup and quick access to the RZ/V2H Software Package for AOSP 15, please refer to Quick Start Guides. For a customized Android environment, please refer to How to build RZ AOSP from Source Code.
The package also supports the Renesas AI accelerator DRP-AI and its model compilation toolchain, and provides the DRP-AI Driver, DRP-AI HAL, and runtime libraries. These components can be used through AI Applications. For porting Linux-based AI applications to Android, please refer to the AI Application Porting Guide.
Supported boards¶
- RZ/V2H with 16 GBytes DDR memory on EVK board
| Board | MPU | LSI | Revision | Power Circuit | Supported |
|---|---|---|---|---|---|
| RZ/V2H Evaluation Board Kit | RZ/V2H | 1 | 1 | - | ✓ |

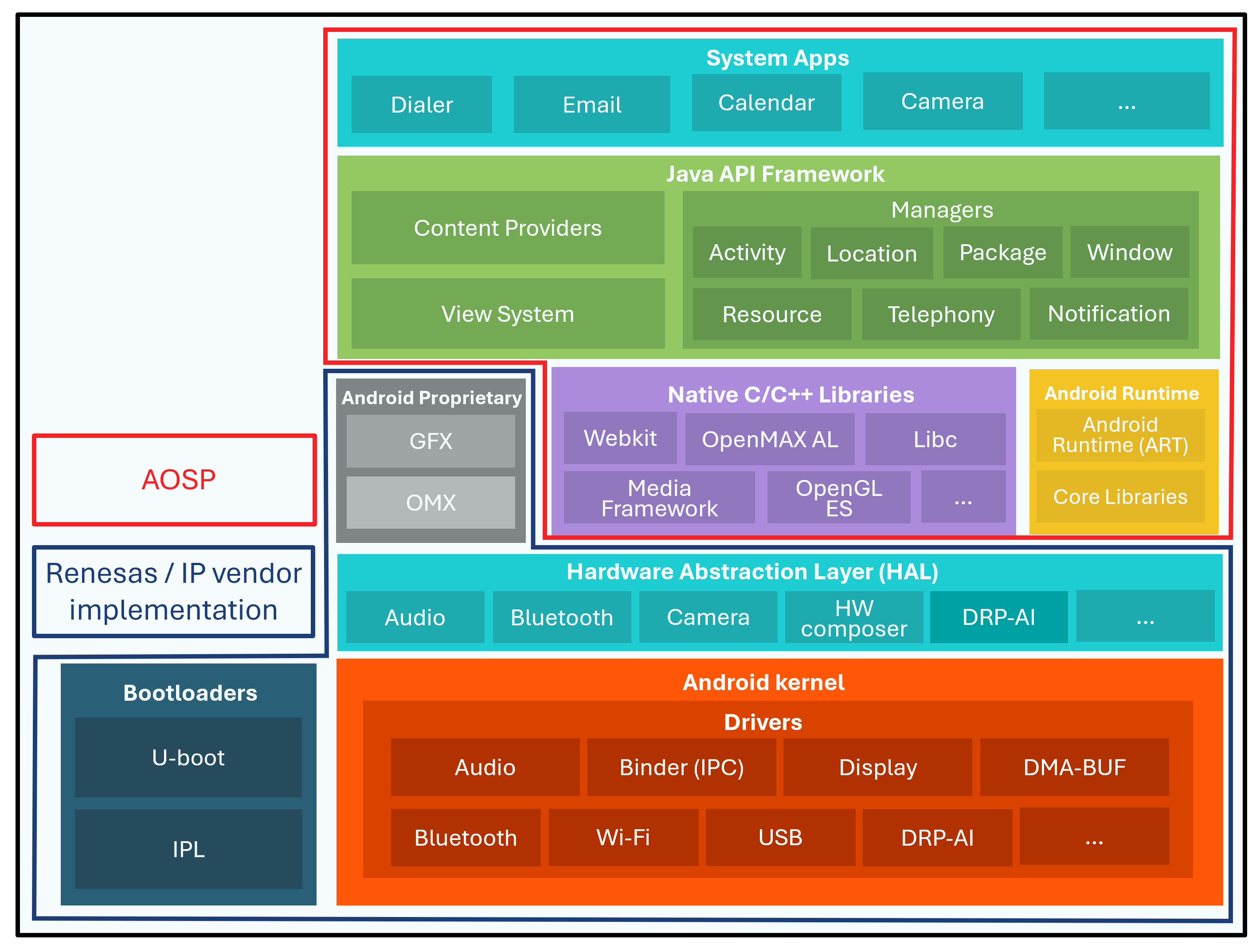

RZ AOSP Components¶
The RZ AOSP release package has been developed and tested using the following software and hardware environment.
- Based Kernel version: It is merged with the below 2 kernels:
- Android Common Kernel: 6.1.99
- Tag: ASB-2024-10-05_14-6.1. Commit id: 0e8b65e.
- Tag: android-15.0.0_r0.98. Commit id: 3c76c2d.
- Linux®: v6.1.107-cip28.
- Android Common Kernel: 6.1.99
- Android Open Source Project (AOSP): AOSP 15 based on android-15.0.0_r23
- Toolchain for kernel/drivers and bootloaders: ARM GCC 9.2 and Android clang 19.0.1
- Build Host OS: Ubuntu 20.04 64-bit (official testing) or Ubuntu 22.04 64-bit (Unofficial testing). Newer Ubuntu version may also work.
- Minimum required DDR memory size: 16 GBytes
- Storage size: At least 250 GBytes of free disk space to check out the code and an extra 150 GBytes to build
